3-2
User's Manual: Radiant Heater

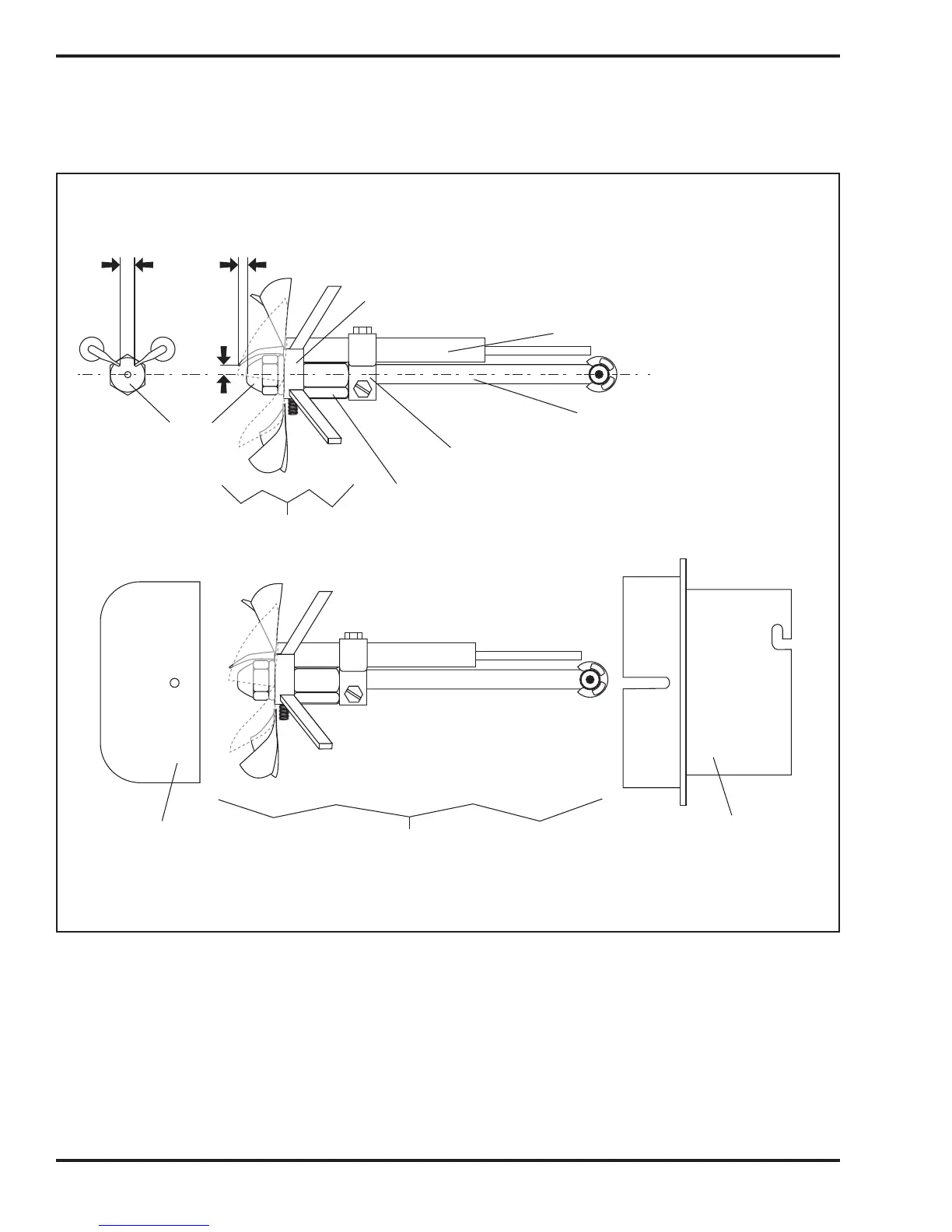

FIGURE 2A: INSERTING / REMOVING NOZZLE HEAD ASSEMBLY
C77015
SPINNER ASSEMBLY
RETENTION HEAD
AIR TUBE
NOZZLE ADAPTER
NOZZLE ASSEMBLY
NOZZLE
ELECTRODE CLAMP
SPINNER CLAMP
ELECTRODE
OIL TUBE
1/16”
5/16”
1/8” to 5/32”
