CHAPTER 5
Trigger Outputs
Three trigger outputs supply +12
VDC whenever they are turned on.
These can be used to turn on external
Sun re power ampli ers equipped
with a 12 V trigger input, or to deploy
video screens for example.
Use all stan dard safe ty pre-
cau tions and make sure all the
equip ment is dis con nect ed be-
fore making any con nec tions.
CONTROL CHOICES
RS232 BROADCAST Y Y, N
TRIGGERS
FRONT IR SENSOR NORM NORMAL,NO RPT,OFF
SIRIUS RESET
SETTINGS SAVE
SOFTWARE VER. X,Y,Z FIRMWARE REVISION
EX VERSION X,Y,Z FLASH REVISION
BT VERSION X,Y,Z BOOTLOAD REVISION
TRIGGERS
TRIGGER OUTPUT 1
TRIGGER OUTPUT 2
TRIGGER OUTPUT 3
TRIGGER OUTPUT 1 2 3 CHOICES
DELAY TIME 1S 1S 1S 0 TO 5
1 SEC STEPS
1 HD/BD MAIN ZONE 2 M/Z2 OFF, MAIN,
ZONE 2, M/Z2
2 SAT MAIN ZONE 2 M/Z2
3 DVR MAIN ZONE 2 M/Z2
4 MP3 MAIN ZONE 2 M/Z2
5 DVD MAIN ZONE 2 M/Z2
6 CABLE MAIN ZONE 2 M/Z2
7 VCR MAIN ZONE 2 M/Z2
8 CD MAIN ZONE 2 M/Z2
9 HD/BD-7.1 MAIN ZONE 2 M/Z2
10 SIRIUS MAIN ZONE 2 M/Z2
11 TUNER MAIN ZONE 2 M/Z2
12 FRONT MAIN ZONE 2 M/Z2
SETUP CHOICES
INPUTS
SPEAKERS
VIDEO
MAIN ZONE
ZONE 2
CONTROL
DIGITAL OUT DN MIX/THRU
DIMMER LOW/MEDIUM/HIGH
MAIN MENU
TRIMS
TONE
MODES
PRESETS
SETUP
Triggers

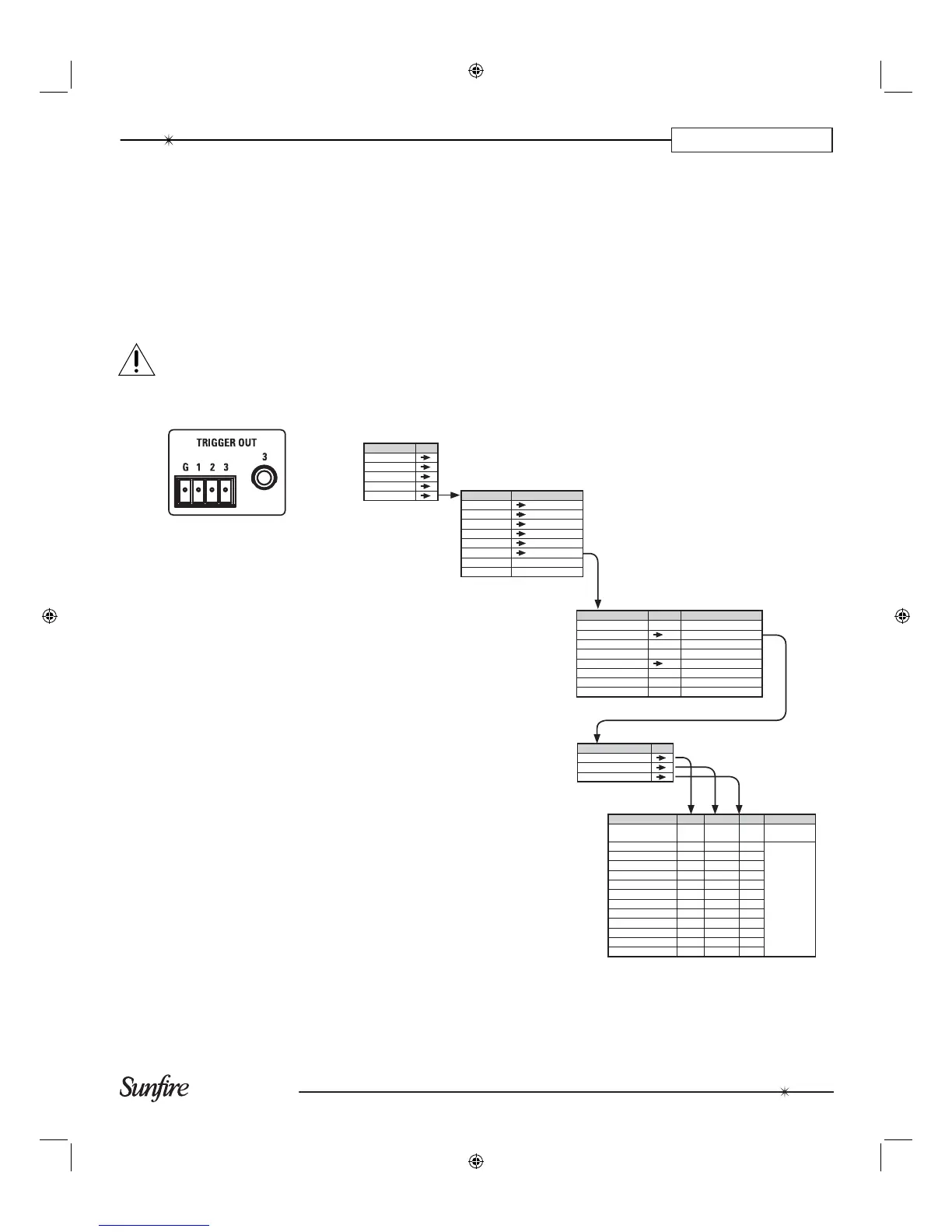

Trigger OSD Menu
The TRIGGER OUTPUT menu al-
lows you to set up each input to turn
on a trigger voltage when that input
is turned on in the Main Zone, Zone
2, both zones, or off (no trigger). The
delay time can also be set from 0 to 5
seconds. Each of the triggers can be
setup separately.
