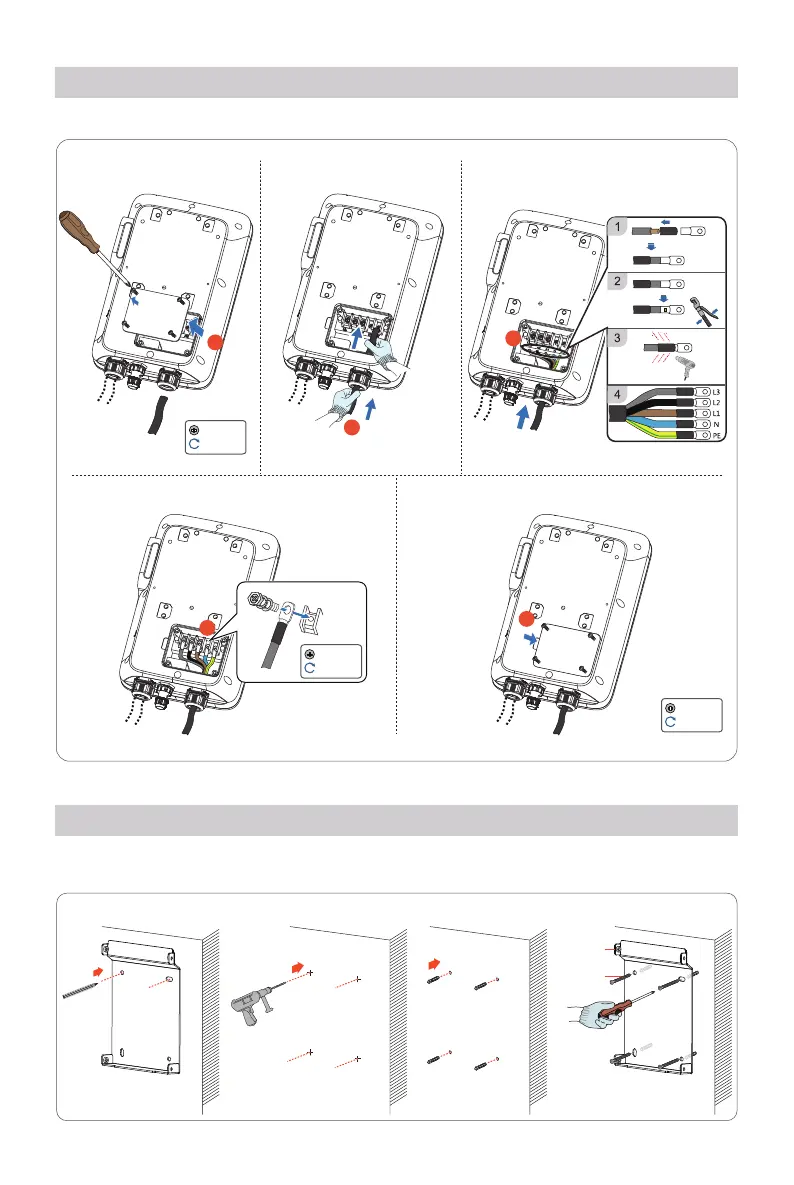

Note: cable shall be connected before the charger is installed. Cable cross section: 5×2.5mm
2
Before drilling, avoid the water and electricity wiring in the wall to prevent hazards. The drill size isΦ6mm and the drilling depth
is about 45mm.The bearing capacity of the installation carrier shall be at least 4.5 times that of the charger!
Cable connection
Wall-mounted charger installation
5
1
① Remove the back cover. ③ Crimp the terminal. (OT2.5-5)② Thread.
④ Connect the cable.
① Install the backplate.
⑤ Install the back cover.
Backplate
Tapping screw
2
Φ6
M3
0.5+0.1N•m
M3
0.5+0.1N•m
3
M5
3+0.2N•m
4
