User Manual 4 Mechanical Installation
13

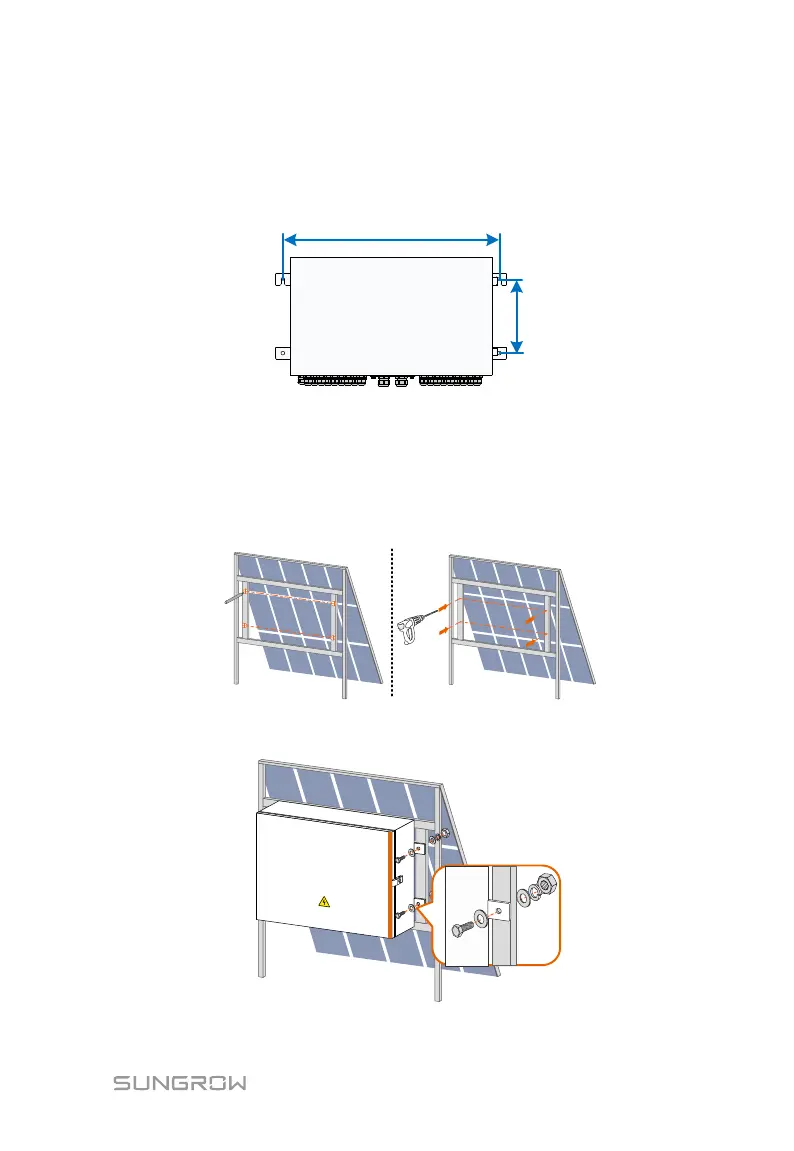

4.4.3 Installation method
When installing the combiner box, fix it to the installation plane through the lugs
on its both sides. The hole distance of the lugs on its both sides is shown in the
figure below.
Wall mounting
Step 1 Measure the distance between the lugs on its both sides.
Step 2 On the plane on which the combiner box is to be installed, mark the
position of the mounting hole and drill.
Marking position Drill according to the mark
Step 3 Fix M10 bolts, flat washers, lugs, brackets, flat washers, spring washers,
and nuts in order. The torque is 34~40N.m.
