sunjoe MJ500M - Grass Catcher Assembly

7
3. Hook the assembled grass catcher onto the mower by
connecting the sockets to both ends of the roller bar
end shaft (Fig. 9).
4. Secure the locking strap on the grass catcher to the
center bar on the lower handle of the mower. Adjust
the strap to an appropriate height so that the grass
catcher does not rub against the ground while mowing or
transporting the unit (Fig. 10).
NOTE: If you have any questions, please call the Snow Joe
®
+ Sun Joe
®
customer service department at 1-866-SNOWJOE
(1-866-766-9563) for assistance.
Operation
Cutting height adjustment
1. The cutting height of the 16" (40.6 cm) reel mower can be
adjusted from 0.79" to 1.81" (2.0 cm to 4.6 cm) using the
4 position settings on the roller assembly.
2. To adjust the cutting height, pull out the height adjustment
knobs on both sides of the reel mower frame and rotate
the knobs to the desired setting (Fig. 11).
Protective
leather
proles

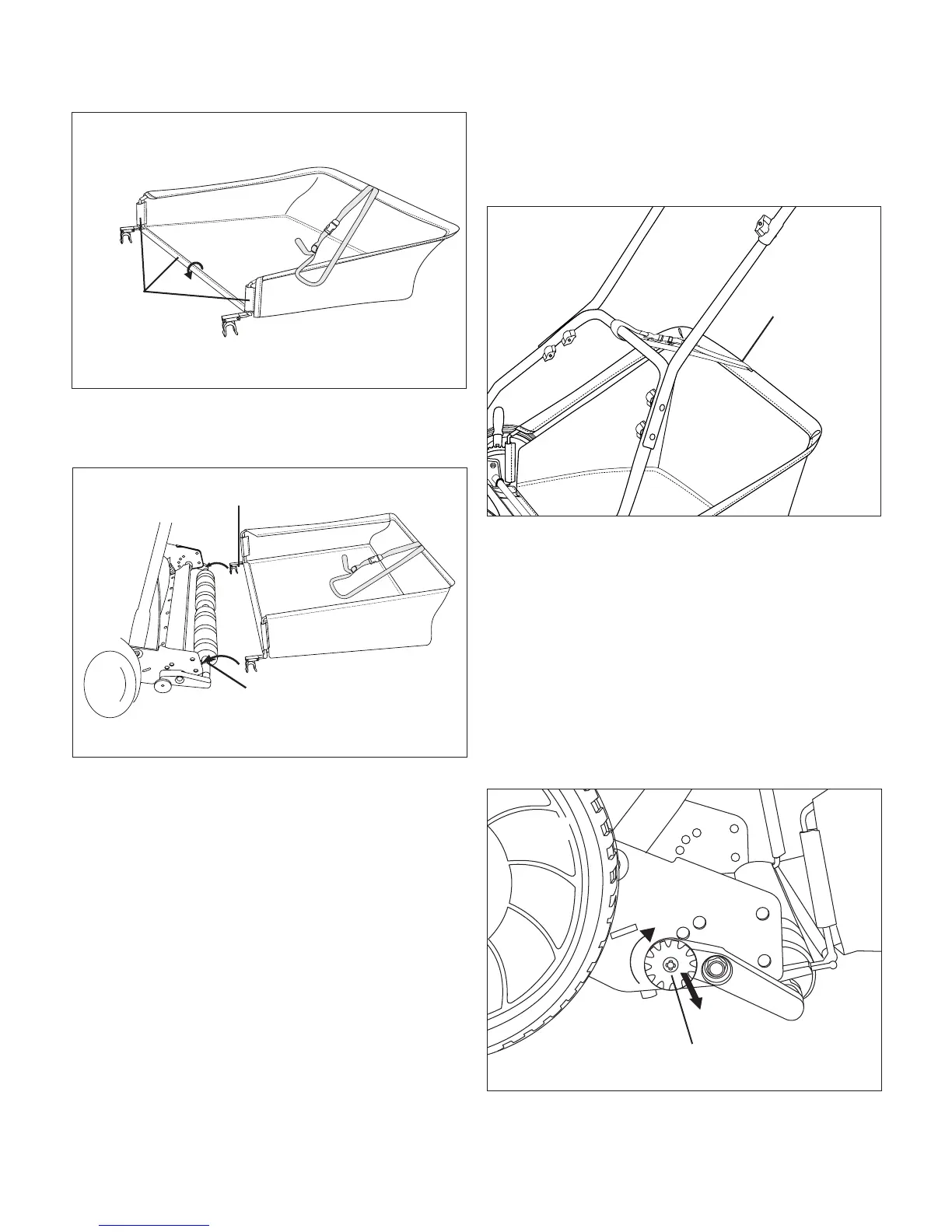

Fig. 8
Roller bar end shaft
Socket
Fig. 9
Locking strap
Fig. 10
Fig. 11
Height adjustment knob
