Know Your Manual Reel Mower

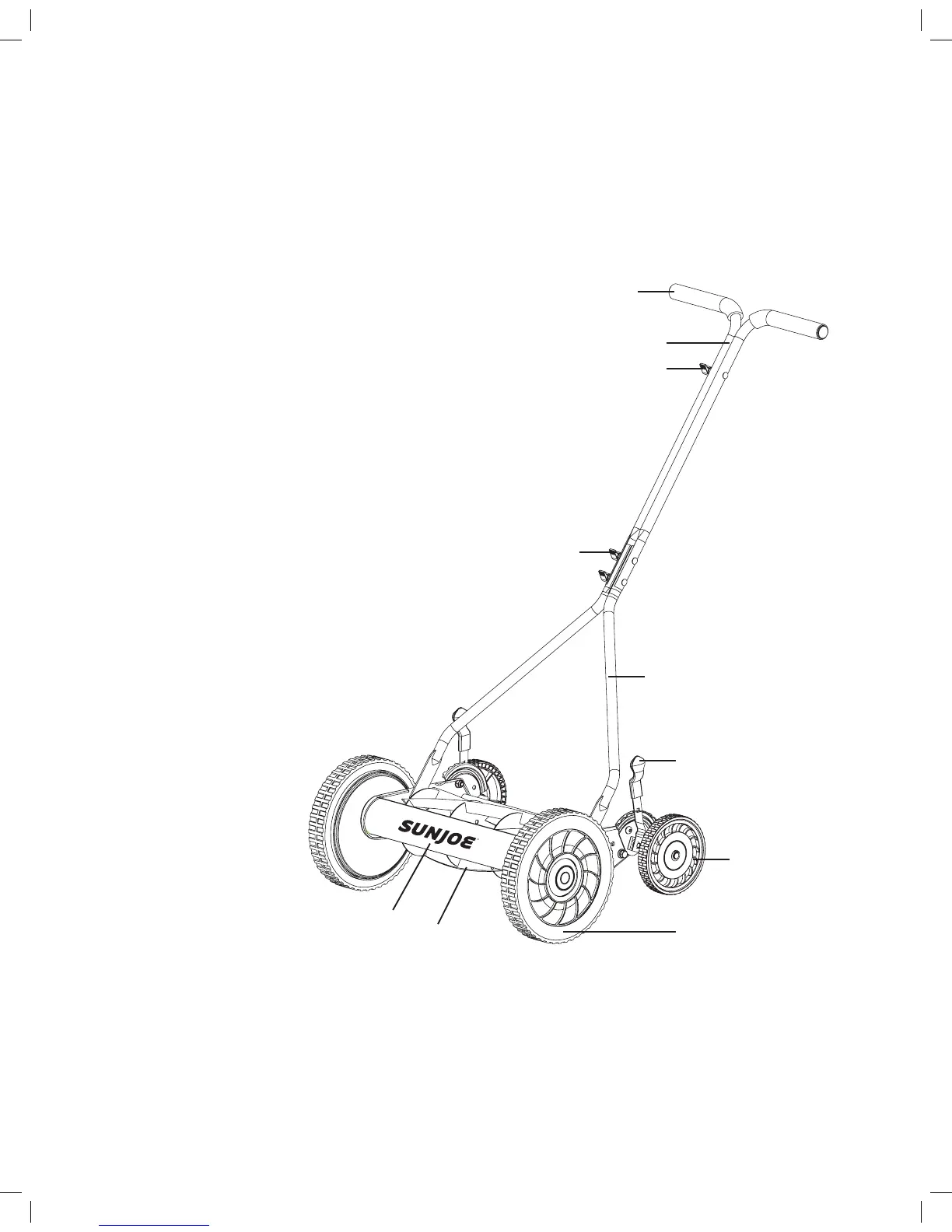

Read the owner’s manual and safety instructions carefully before operating the reel mower. Compare the illustration below to the
reel mower in order to become familiar with the location of the various controls and adjustments. Save this manual for
future reference.
1. Foam grip
2. Upper handle bar (2)
3. Upper handle knob and bolt
4. Lower handle knob and bolt (2)
5. Lower handle bar (2)
6. Height adjustment lever
7. Rear wheel (2)
8. Front wheel (2)
9. Steel blades
10. Reel mower body
5
6
8
7
10
9
3
1
2
4
Technical Data
Rotor 5 steel blades
Cutting Width 14 in. (35.6 cm)
Cutting Heights 1.1 in. – 2.9 in.
(2.7 cm – 7.3 cm)
Wheel Size Front: 10 in. (25.4 cm)
Rear: 6 in. (15.2 cm)
Height Control 9-position manual
height adjustment
Weight 23.8 lbs (10.8 kg)
