12. Repeat steps 8 – 11 to assemble the other side panel.
13. Lay the cart box in the upright position. Remove the front
panel by sliding it up and remove the four #1 at washers
used as shims (Fig. 12).
14. Assemble the supporting tube using four M6 x 50 screws
and #2 at washers through the side panels and the
supporting tube. Secure with #2 at washers and handle
knobs (Fig. 13).
15. Place the handle tube over the side panels and line up
the four holes. Assemble using four M6 x 50 screws and
#2 at washers through the side panels and handle tube.
Secure with #2 at washers and handle knobs (Fig. 14).
16. Lay the cart upside down. Slide the axle through the axle
clamps (Fig. 15).

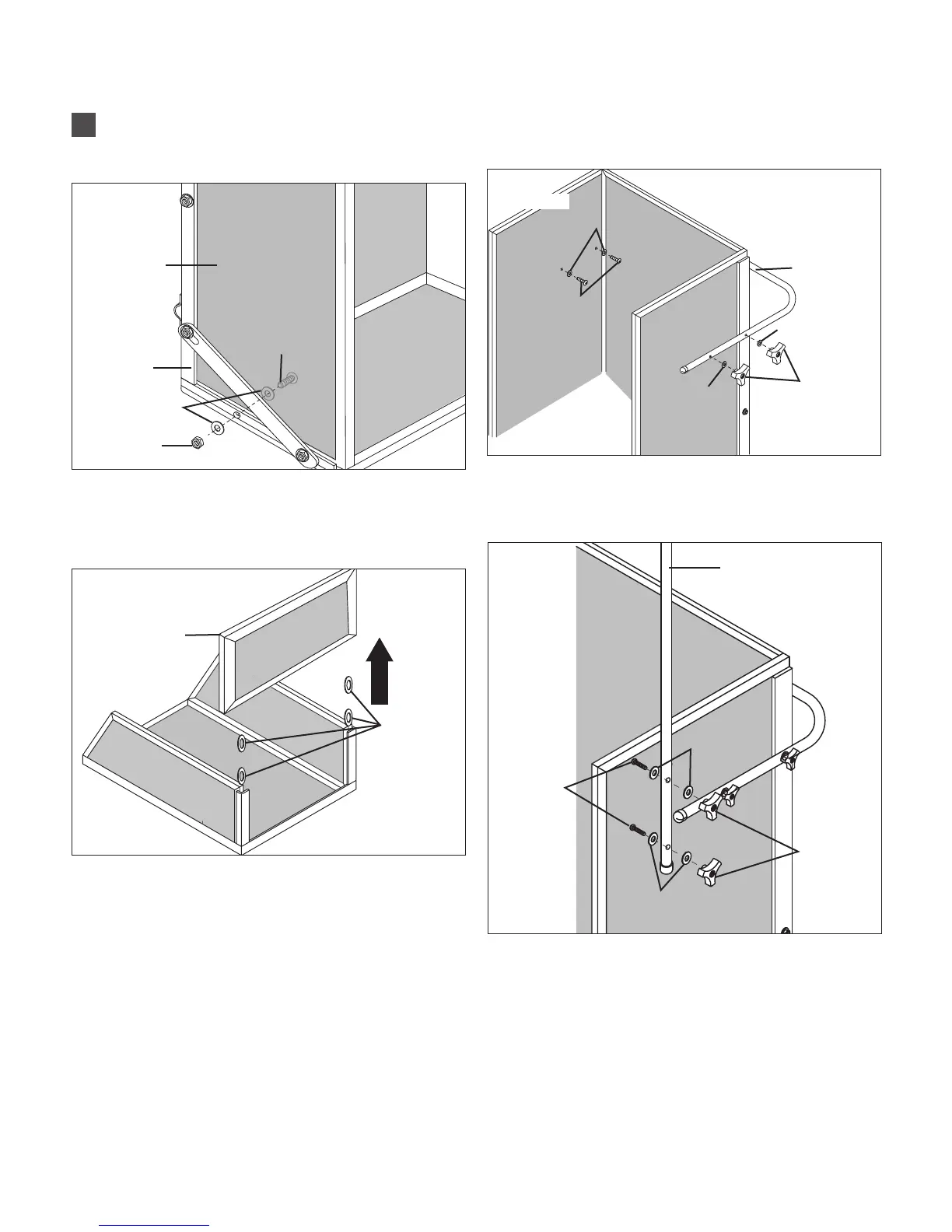

Fig. 11
Side panel
Front angle
clamp
M6 x 25
screw
Flat
washer #2
Hex nut
Fig. 12
Front
panel
Flat
washers
#1
Fig. 13
Supporting
tube
Handle
knobs
Flat washer #2
Flat washer #2
M6 x 50
screws
Flat washer #2
Fig. 14
Handle
tube
Handle
knobs
Flat washer #2
Flat washer #2
M6 x 50
screws
