Know Your Outdoor Patio Heater

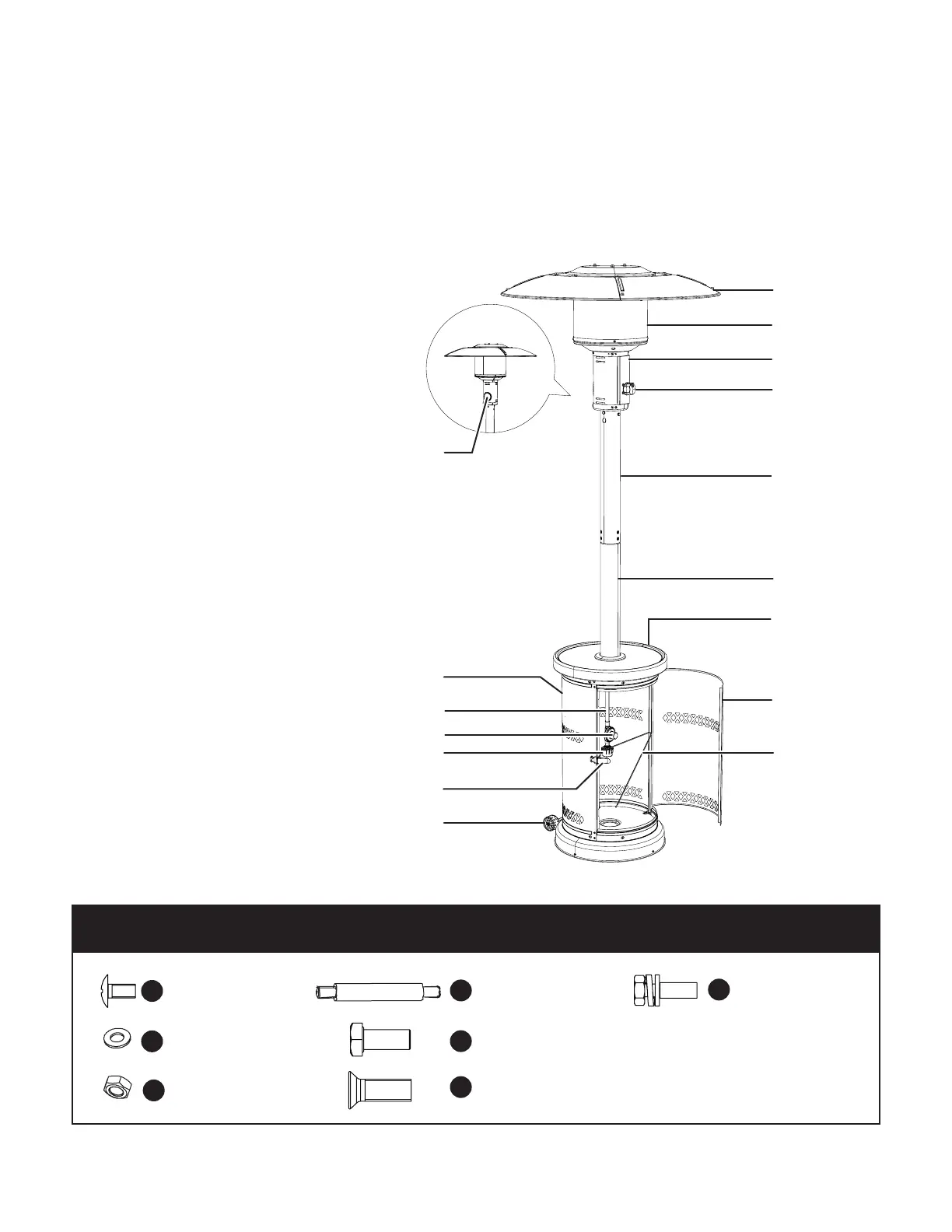

Read the owner’s manual and safety rules carefully before using your outdoor patio heater. Compare the illustration below to
the actual unit in order to familiarize yourself with the location of the various parts and hardware. Save this manual for future
reference.
Hardware Pack Contents
Phillips Head Bolt
M6x10 | Qty.12
A
Washer
6mm | Qty.18
B
Reector Stud
M6x70 | Qty.3
D
Hexagon Socket Head Bolt
M6x14 | Qty.8
E
Cap Nut
M6 | Qty.15
C
Pole Screw
M5x12 | Qty.6
F
Wheel Screw
M6x20 | Qty.2
G
1. Heat reector
2. Emitter screen
3. Burner assembly
4. Lighting knob
5. Upper pole
6. Lower pole
7. Bar table
8. Cylinder tank door
9. Cylinder securing wire
10. Wheel assembly
11. Door latch
12. Propane hose connector
13. Propane hose regulator
14. Propane hose
15. Cylinder tank
16. Observation window
1
2
5
BACK
4
6
7
8
9
10
11
12
14
13
15
16
3
