Assembly (continued)

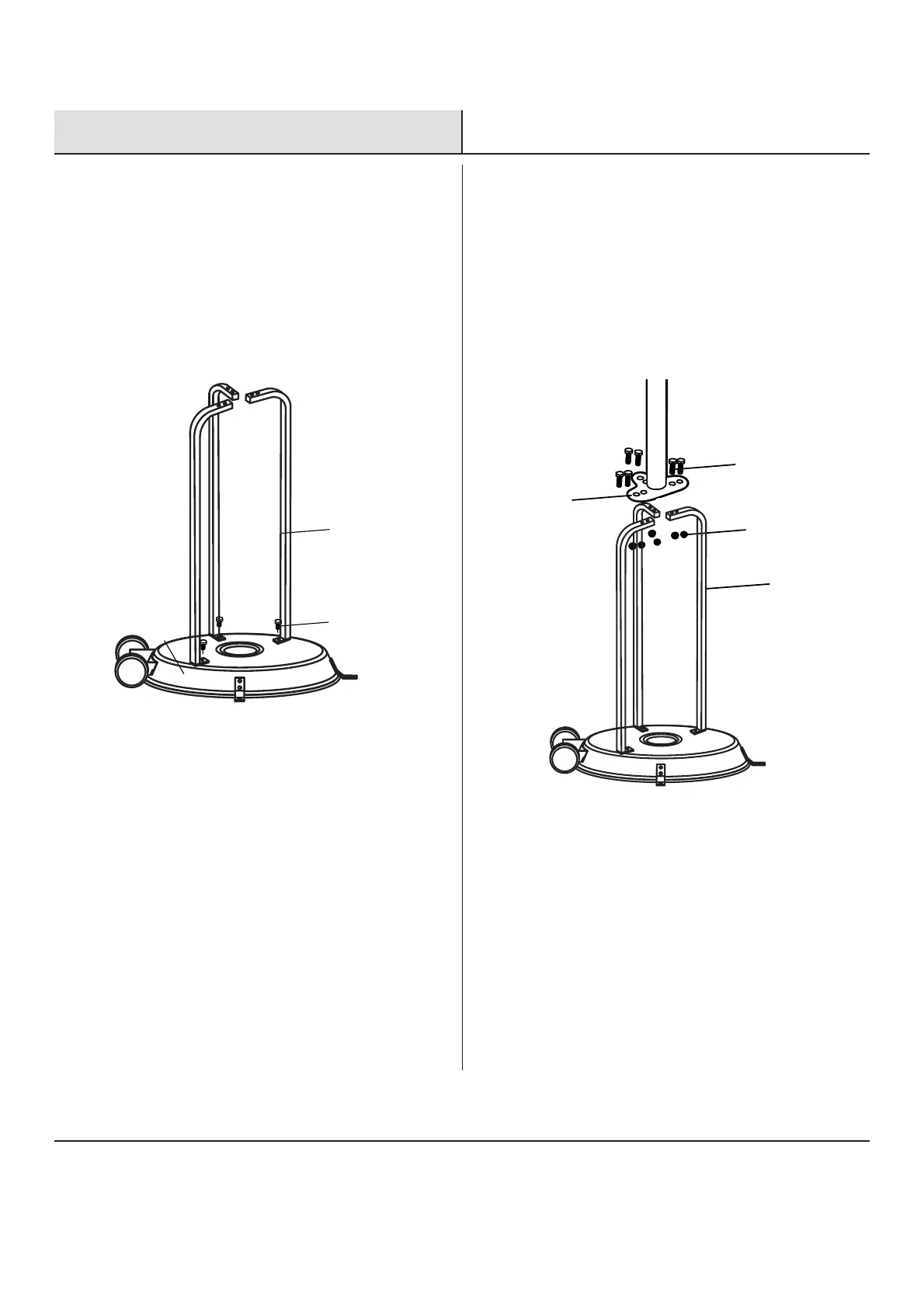

3 Attach support legs to base
4 Attach post support to the support legs
Attach the three support legs (G) to the top of the base (H)
using three M8 bolts (CC).
Attach the post support (F) to the top of the support legs
(G) using six M6 x 22 bolts (DD) and six M6 nuts
(BB).
BB
G
CC
H
G
DD
F
