Fig. 16: Fit Base cover (D2) to Post (A2), attach Post base (E2) to Post (A2) by using bolt (AA) and washer
(BB).
Fig. 17: Lift whole assembled top, insert Post connector (B2) into Post (A2), fix them by using bolt (FF) and
washer (BB).
Fig. 18: Attach Support piece (K2) to Post (A2) and Beam I2 (J2) by bolt (HH) and washer (BB).

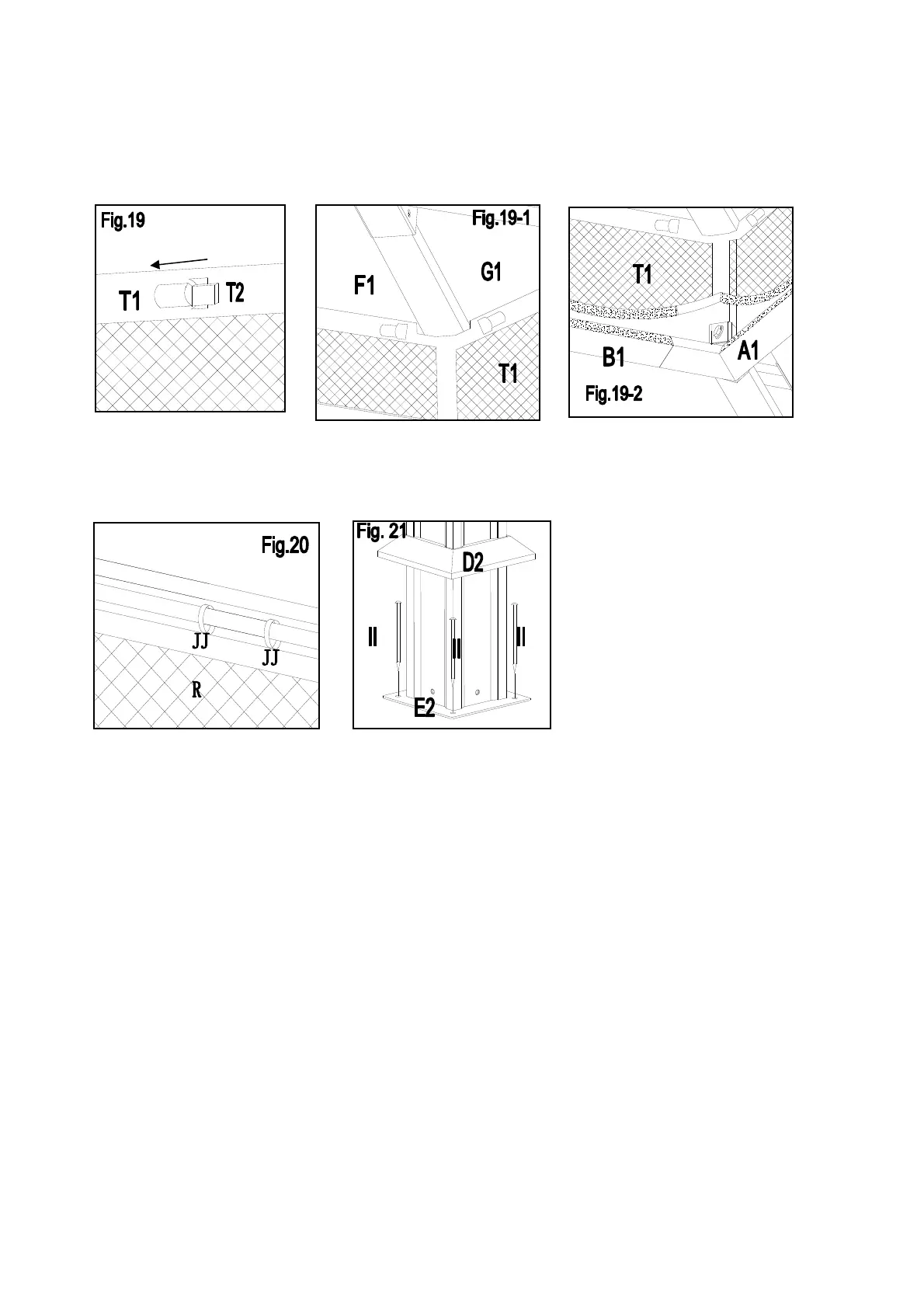

Fig.19: Place the Magnet (T2) into the pockets of the vented roof netting (T1).
Fig.19-1: Attach the magnet end of vented roof netting (T1) to the small top roof panel (F1 & G1).
Fig.19-2 : Attach another velcro end of vented roof netting (T1) to the big top frame bar (A1 & B1).
Fig.20: Hang mosquito net (R) to the netting bar (L2a, L2b, M2a, M2b) by using plastic ring (JJ).
You also can hang the privacy panels (not included) to another pipe of netting bar.
Fig.21: Lift Base cover (D2), fix the gazebo on the ground with peg (II).
Now, your gazebo is ready for use.
