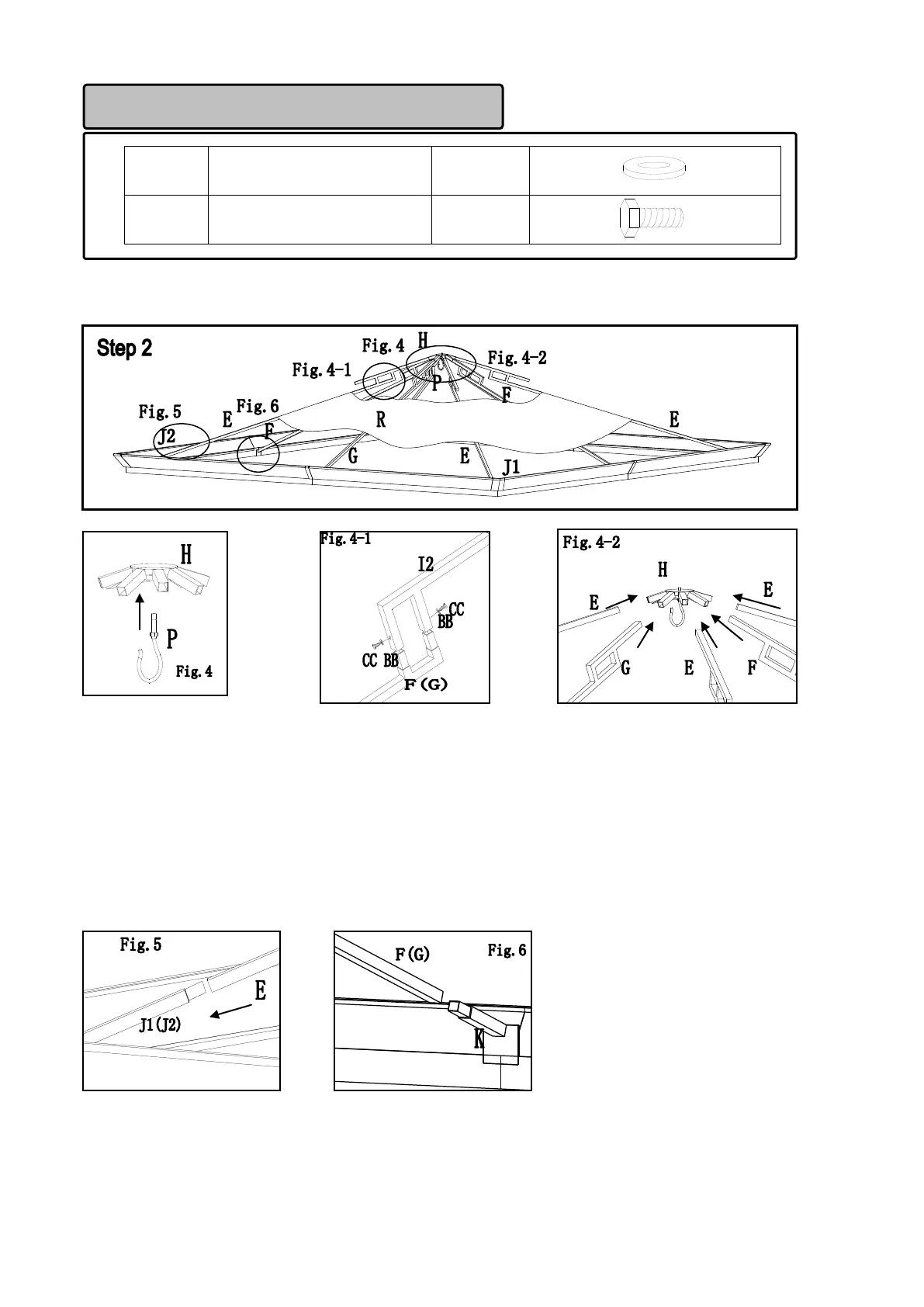

Sunjoy Florence - Step 2: Top Structure Assembly

4
BB
1/4”-20 Flat washer
16 PCS
CC
1/4”-20*0.6 Screw
16 PCS
Fig.4: Assemble Hook (P) to Top connector (H).
Fig.4-1: Insert Bar connector (I2) to Top bar (F&G) and tighten them with Screw (CC) and Flat
washer (BB). Assemble Bar connector (I1) and Top bar (E) in the same way.
Fig.4-2: Insert Top bar (E, F, G) through the opening of Canopy (R) to Top connector (H).
Fig.5: Insert the other end of Top
bar (E) to Corner connector
(J1&J2).
Fig.6: Insert the other end of Top
bar (F&G) to Connector (K).
Hardware Pack used in Step 2
