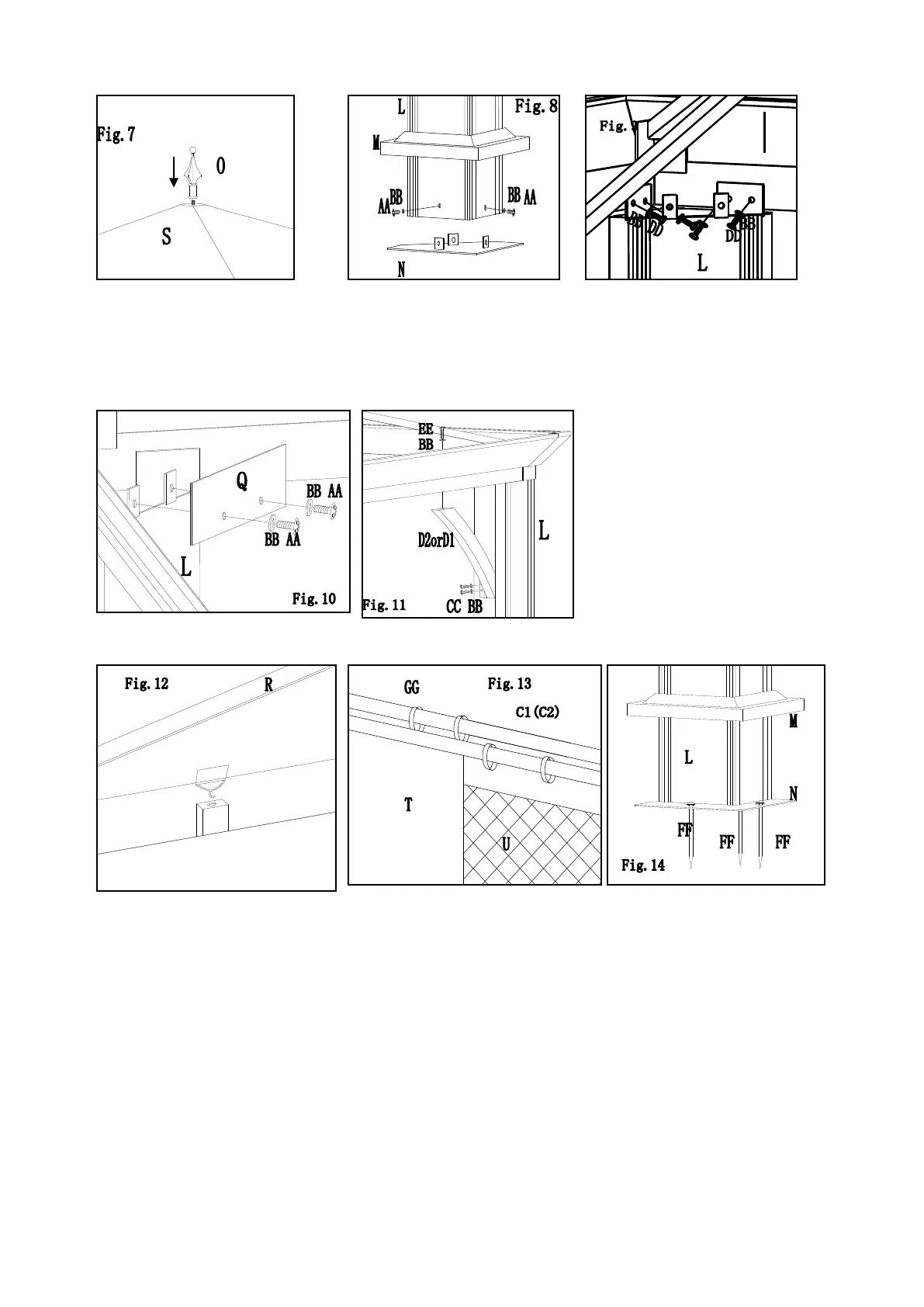

Fig.7: Assemble Top canopy (S) on the frame, and screw Finial (O) on.
Fig.8: Put Base (M) onto Pole (L), and tighten Stake plate (N) with Pole (L) with Screw (AA) and Flat
washer (BB).
Fig.9: Tighten Pole (L) to the beam corner with Screw (DD) and Flat washer (BB).
Fig.10: Tighten Patch (Q) to
Pole (L) with Screw (AA) and
Flat washer (BB).
Fig.11: Tighten Support piece
(D2&D1) to Pole (L) and
beams with Screw (EE), Bolt
(CC) and Flat washer (BB).
Fig.12: Extend Canopy (R), and hook it on the holes of beams.
Fig.13: Tie Netting (U) and Wall (T) to Netting pipe (C1, C2) with Plastic ring (GG).
Fig.14: Lift Base (M) and fix the gazebo on the ground with Stake (FF).
