SMBxxxF-6X20DW, SMBxxxF-4X24DW, SMBxxxF-4X18DW, SMBxxxF-6X24DB,
SMBxxxF-6X20DB, SMBxxxF-4X24DB, SMBxxxF-4X18DB
• Clamps can be used for the connection of SMB series components and support system. The
installation must be completed according to the following example, otherwise the warranty will be
invalid.
• Horizontal installation of SMB series components.
• SMB series components must be properly secured to their supports so that they can withstand the
pressure of the load, including the rise and pressure of the wind. It is the responsibility of the installer
to ensure that the mounting fixture used ensures that the assembly is strong enough.

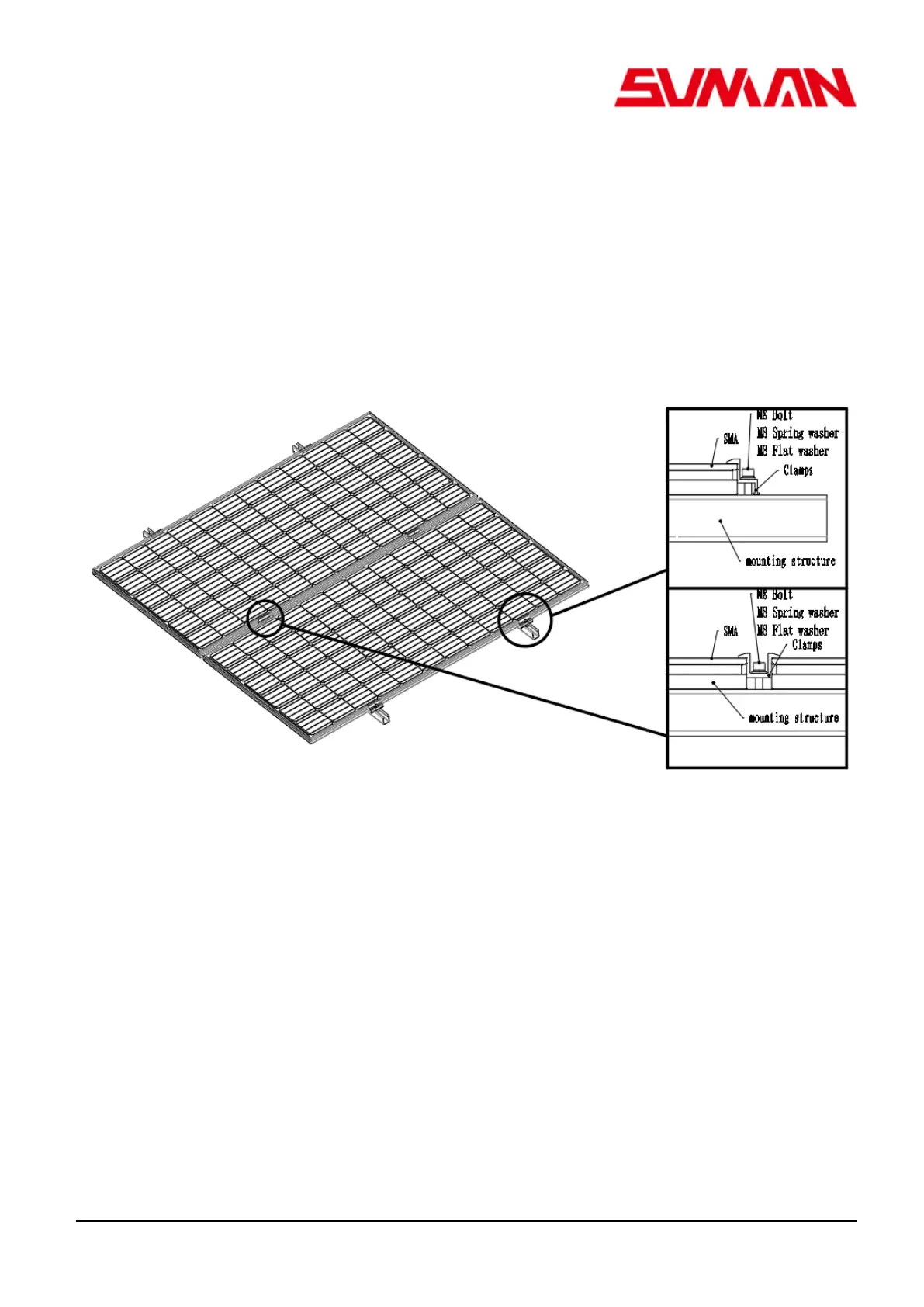

• Layout(For SMB Series: SMBxxxM-6X12DW, SMBxxxM-6X10DW, SMBxxxM-4X12DW, SMBxxxM-
4X09DW, SMBxxxM-6X12UW, SMBxxxM-6X10UW, SMBxxxM-4X12UW, SMBxxxM-4X09UW, SMBxxxF-
6X24DW; SMBxxxF-6X20DW; SMBxxxF-4X24DW; SMBxxxF-4X18DW; SMBxxxF-6X24DB; SMBxxxF-
6X20DB; SMBxxxF-4X24DB; SMBxxxF-4X18DB )
