8
3. With Shaft removed, Lever may be lifted out of body for servicing.
CAUTION
A small Spring is used to provide gaging, force. This Spring is nested in two
Sockets (one in the Lever and one in the body). Do not lose this Spring or
gage will be inoperative (see Figure 9).
4. Check Indicator by pressing Anvil in. If needle moves freely and
returns to original position, indicator is OK.
5. Wipe Lever and Shaft to clean (do not dip in solvents . . . as grit
may be washed into Adjustment Screw).
6 Brass Pivot Bearings may be cleaned, but do not scratch or mar
them. Do not remove spring clips on Bearings.
7. To reassemble, place Spring in Socket in Lever and hold in place.
Insert Lever into body. Be sure Spring is in Socket in body.
8. Align hole in Lever with Pivot Bearings. Insert Shaft and center end
to end. Then retighten Set Screw in lever.
9. Depress Lever to make sure that indicator needle moves freely and
returns to its original position.

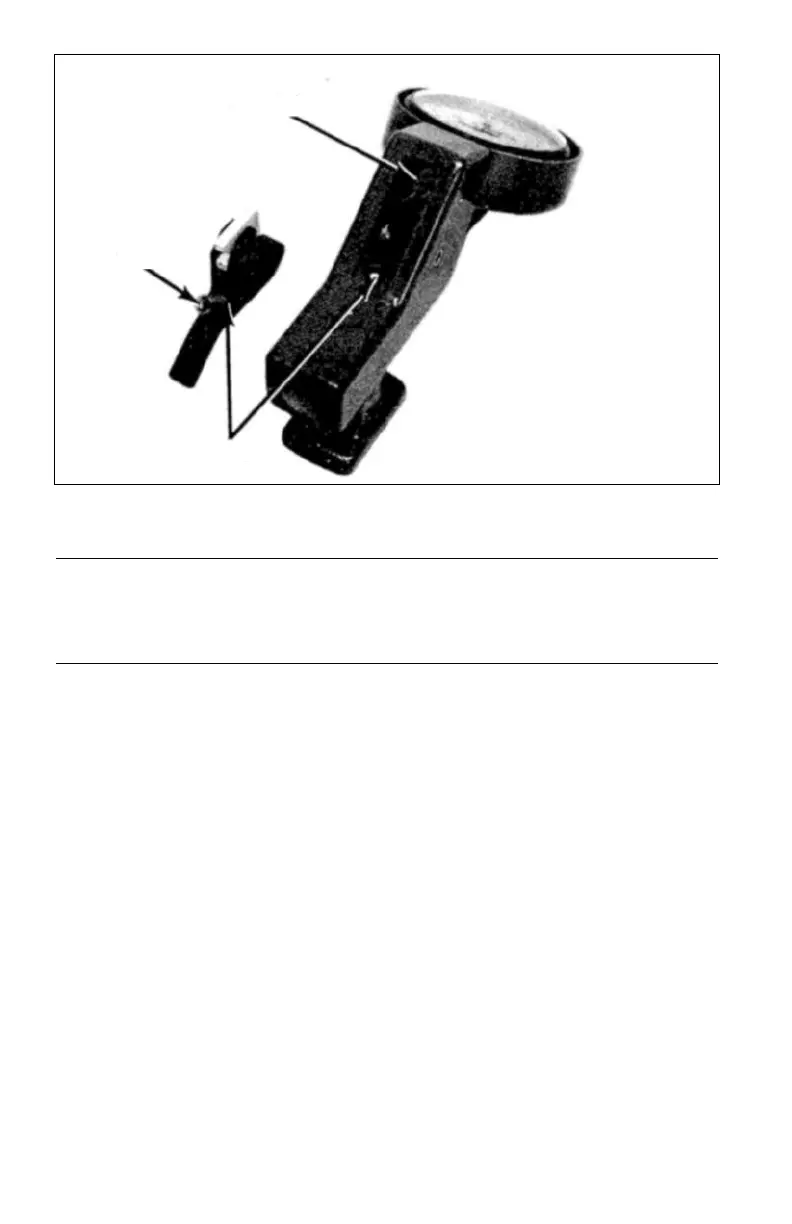

FIGURE 9
ANVIL
SPRING
SOCKETS
