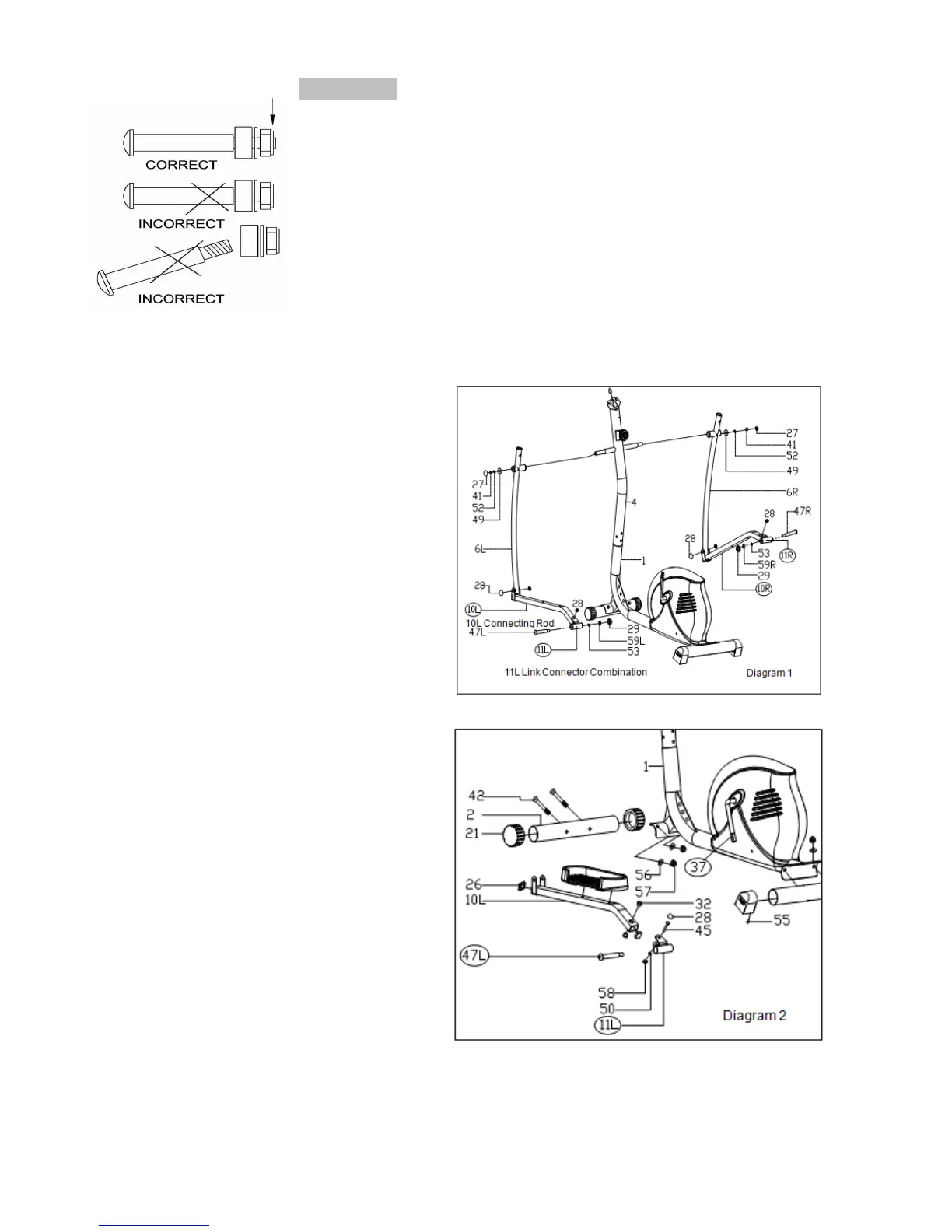

ATTENTION
The Right & Left Hinge Bolt (No. 47R/L) must fully penetrate the
nylon ring inside the pedal arm joint and the cranks. This will ensure
the stability and durability of your Elliptical Trainer.
In order to install hinge bolt properly, keep it perfectly straight as the
bolt goes through the pedal arms and the crankshaft. If the hinge bolt
is connected to the crankshaft at an angle, damage to both the hinge
and the crankshaft may occur.
If you have trouble connecting this part, try this alternate assembly suggestion:
Diagram 2:
Insert the Locking Bolt (No. 47L/R)
through the hole of the Link Connector
Combination (No. 11L/R) then screw
the Locking Bolt No. 47L/R) into the
Crank Arm (No. 37).
*Remember when assembling the Left
side, you must screw the Locking Bolt
counter-clockwise to tighten. Connect
the Spring Washer (No. 53) and Nut
(No. 59L/R), and attach the End Cap
(No. 29), as seen in the Diagram on
Page 5. You can now reattach the
Connecting Rod (No. 10) to the Link
Connector Combination (No. 11).
