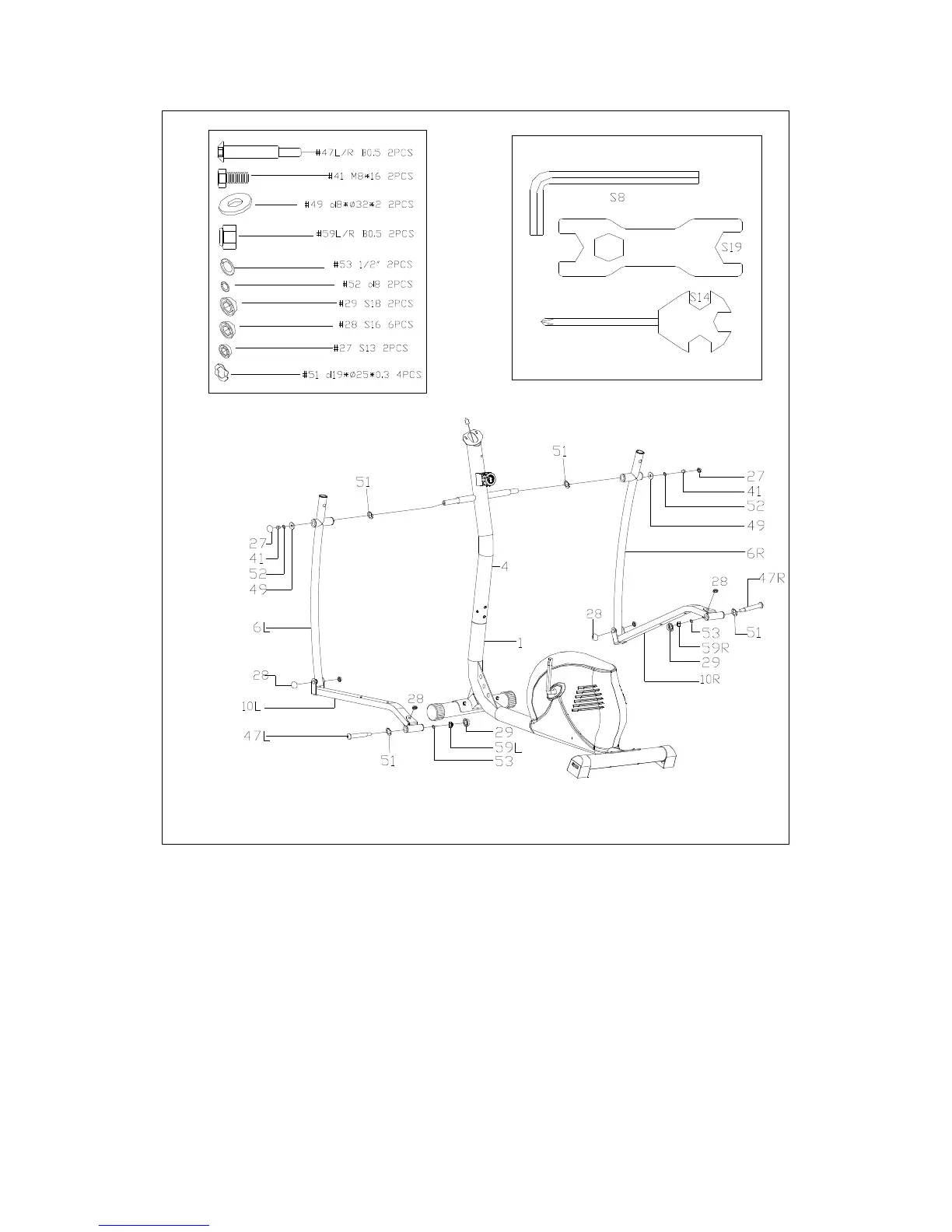

STEP 3:
Attach the Swing Rod (No. 6L/R) onto the Handlebar Post (No. 4) using Bolt (No. 41),
Spring Washer (No. 52), Wave Washer (No. 51) and Washer (No. 49). Finish by attaching
the End Caps (No. 27).
Attach the Connecting Rod (No. 10L/R) onto the crank on the Main Frame (No. 1) using
Bolts (No. 47L/R) for L/R pedal, Wave Washer (No. 51), Spring Washer (No. 53) and Nut
(No. 59L/R). Finish by attaching the End Caps (No. 29).
*IMPORTANT: No. 47L has reversed threading; you must screw counter-clockwise.
Incorrect installation can result in permanent and irreversible damage to your machine.
