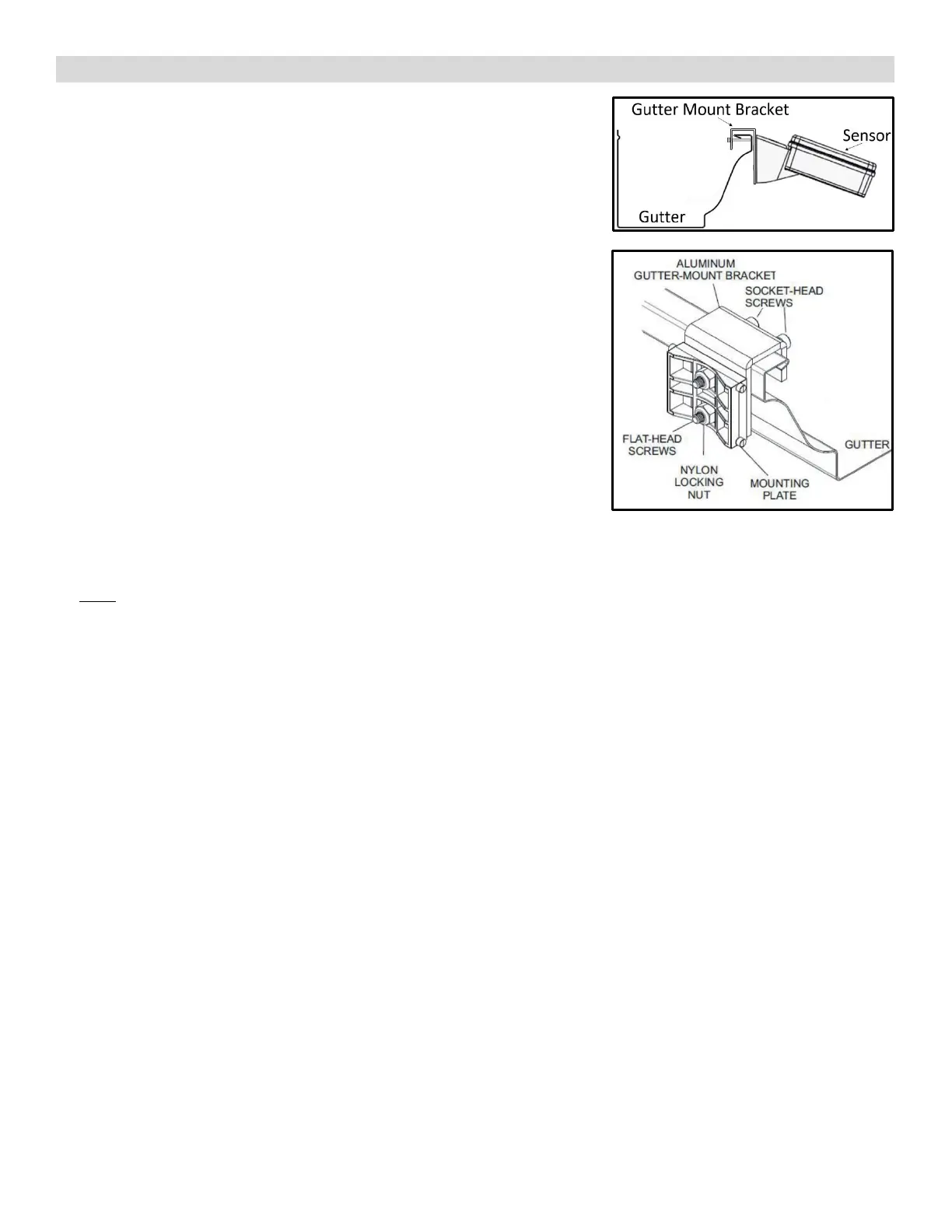

1. Remove mounting plate from Sensor:
a. Push bracket clips down gently, towards main body of
Sensor. See Figure 11
b. Slide mounting plate out of Sensor.
2. Using the two provided flat head screws and nylon locking
nuts, attach flat side of mounting plate to long side of
gutter mount bracket.
3. Hook short side of gutter mount bracket over edge of gutter,
and secure with the two provided socket head screws.
4. Slide Sensor back onto mounting plate by pressing bracket clips down gently towards main body of
Sensor and sliding plate in, until you hear a click. See Figure 12
Note: Ensure front tabs move into top slot, and back tabs move into lower slot.
