SunSetter Somfy - Mount Sensor; Wall Mount; Pole Mount

4

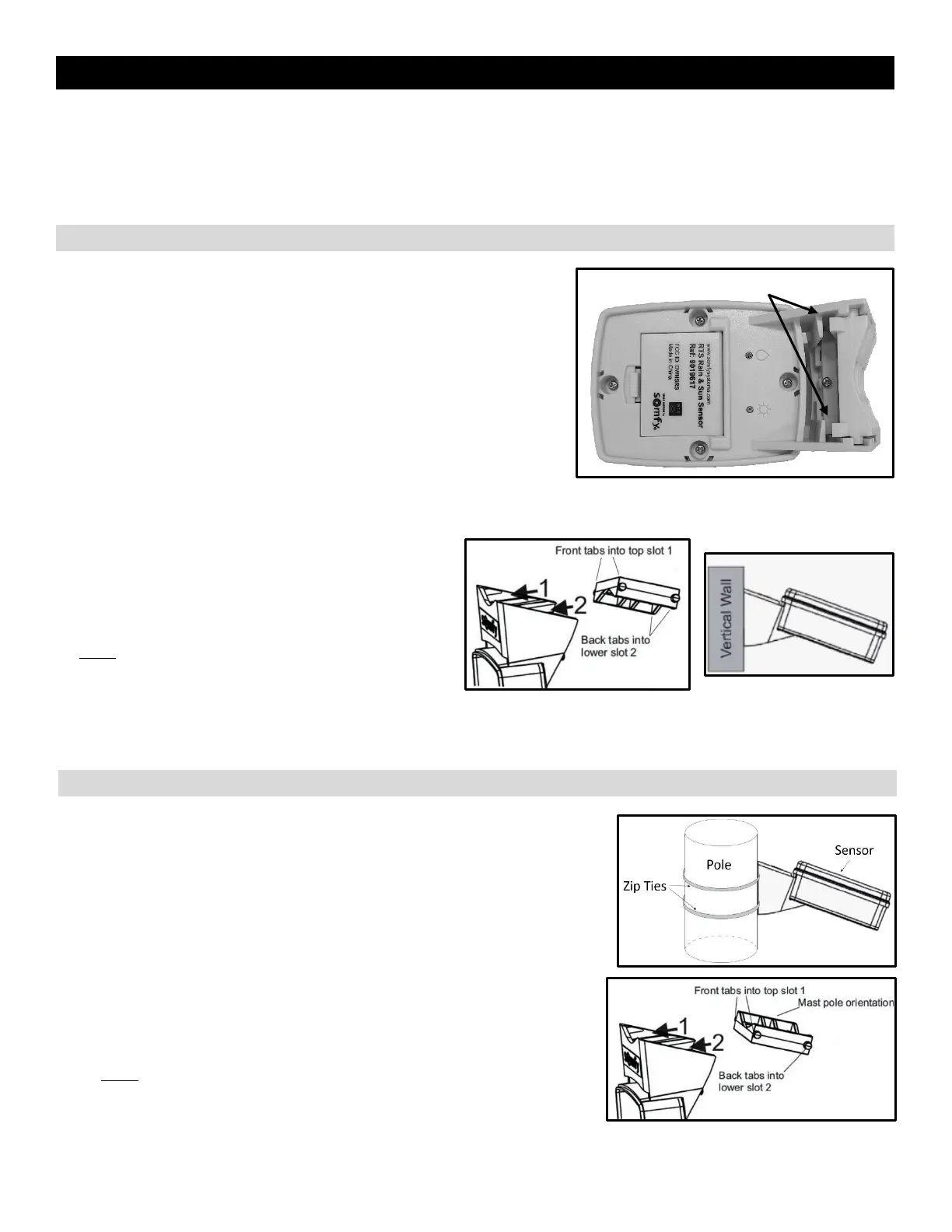

Mount Sensor
Wall Mount
Figure 13
1. Remove mounting plate from Sensor:
a. Push bracket clips down gently, towards main body of
Sensor.
b. Slide mounting plate out of Sensor.
Bracket Clips
Figure 11
2. Use the two provided round head wood screws to attach mounting plate to the wall.
3. Slide Sensor back onto mounting plate by
pressing bracket clips down gently towards
main body of Sensor and sliding plate in,
until you hear a click.
Note: Ensure front tabs move into top slot, and
back tabs move into lower slot.
Pole Mount
1. Remove mounting plate from Sensor:
a. Push bracket clips down gently, towards main body of Sensor.
See Figure 11
b. Slide mounting plate out of Sensor.
2. Use two zip ties (not provided) to secure curved side of
mounting plate to pole.
3. Slide Sensor back onto mounting plate by pressing bracket clips
down gently towards main body of Sensor and sliding plate in,
until you hear a click.
Note:
Ensure front tabs move into top slot, and back tabs move
into lower slot. See Figure 15
Choose best mounting location and method for Sensor.
• Sensor should be exposed to as much rain as possible, as close to awning as possible.
• Sensor can be mounted to a wall, gutter, or pole. Choose appropriate section below.
Figure 12
Figure 14
Figure 15
