Sunshine Tech Smart Touch Light Switch - Wiring and Connection Procedures

17 pages

To Next Page

To Previous Page

Processing steps

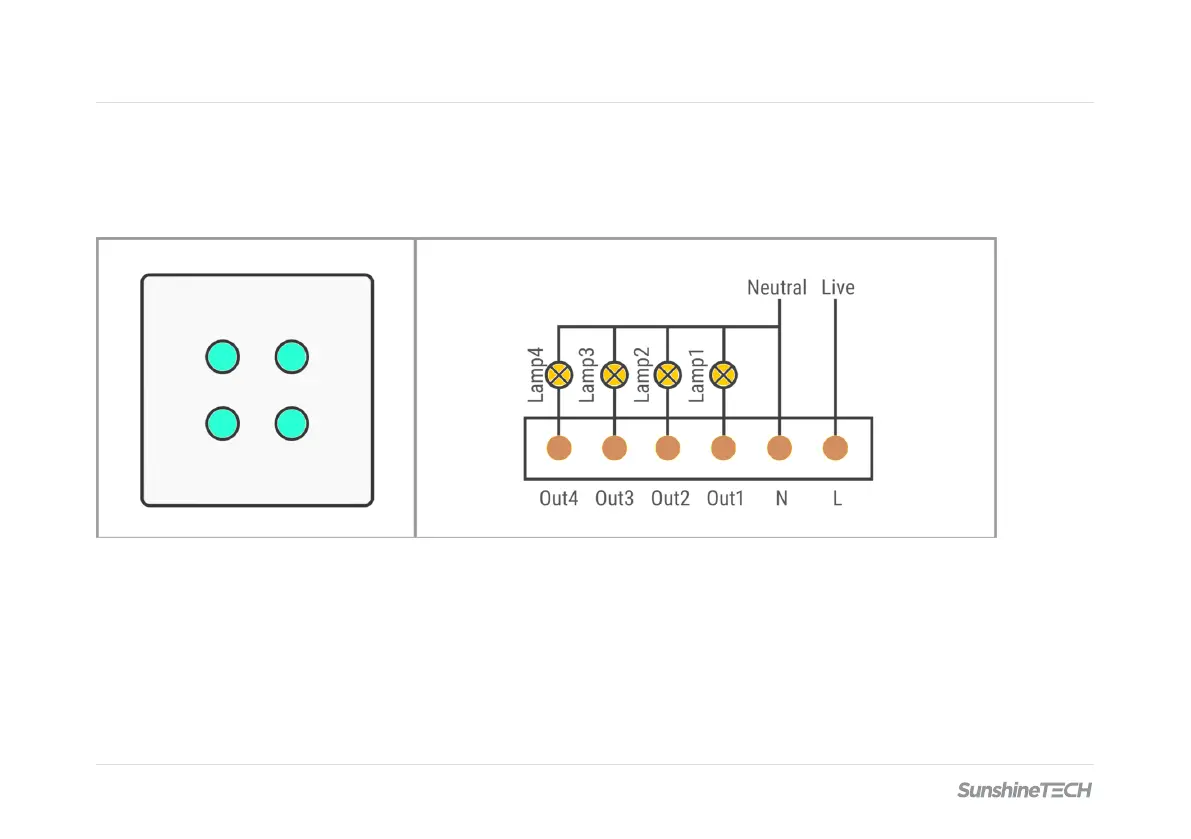

Diagram of wiring connection

Step 1: Power Supply for Smart Touch Light Switch

• Connect the L (Live) wire of the AC power to the L pin of the Smart Touch Light Switch.

• Connect the N (Neutral) wire of the AC power to the N(pin 2 from the right as shown above) of the

Smart Touch Light Switch.
