Sunsystem SWP 2N 300 - Technical Specifications and Wiring; Electric Heating Element Technical Data; Water Heater Electrical Wiring Diagrams

6
ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ
ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ
INSTALLATION and OPERATION MANUAL
INSTALLATION and OPERATION MANUAL

The connection of the electric
heating element to the electric power
supply must be done by a qualified
electricians.
When connect the heating element
to the electric network, make sure
that it is properly grounded.

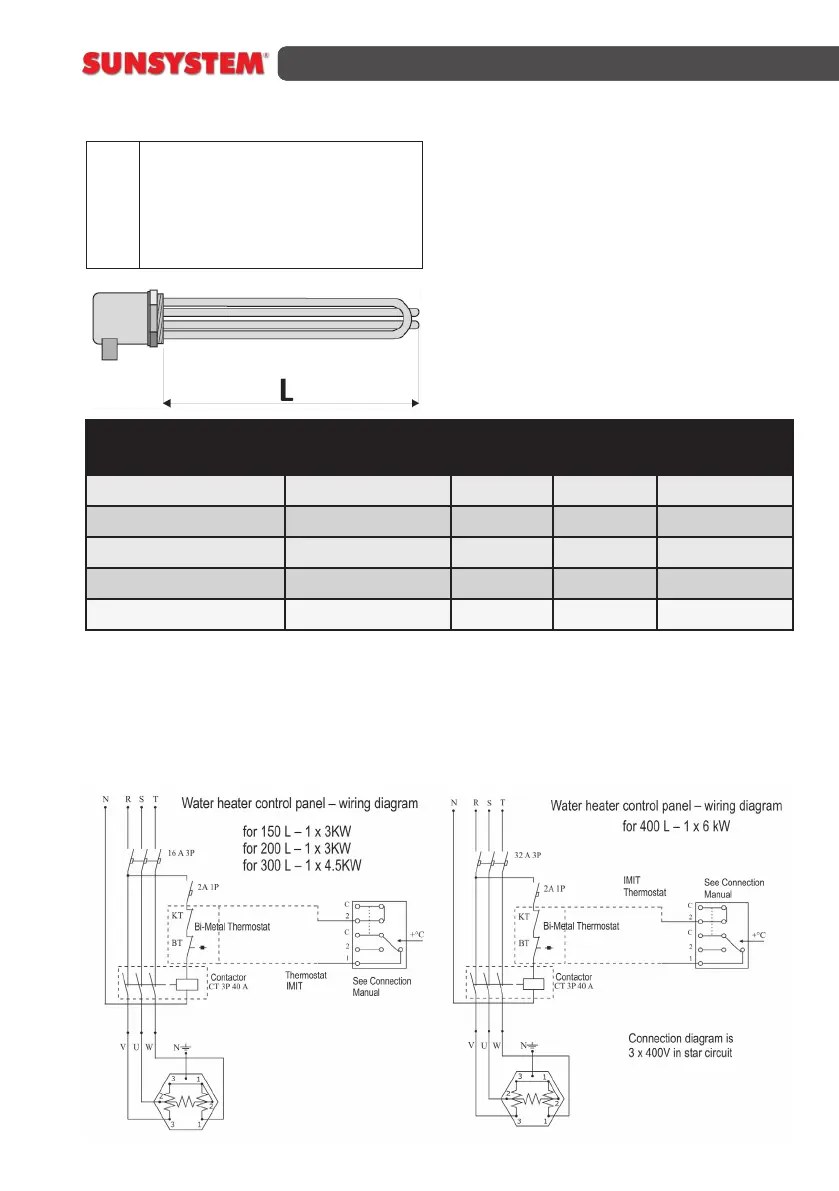

Wiring diagrams
Water tank, L Connecon Lenght
L, mm
Current,
W
Voltage,
V
150 1
1/2”
210 3000 230/400
200 1
1/2”
210 3000 230/400
300 1
1/2”
320 4500 230/400
400 1
1/2”
410 6000 230/400
500 1
1/2”
590 7500 230/400
In the table of technical parameters is specified location for installation of electric
heating element.
