2.7.Thermostat (opon).

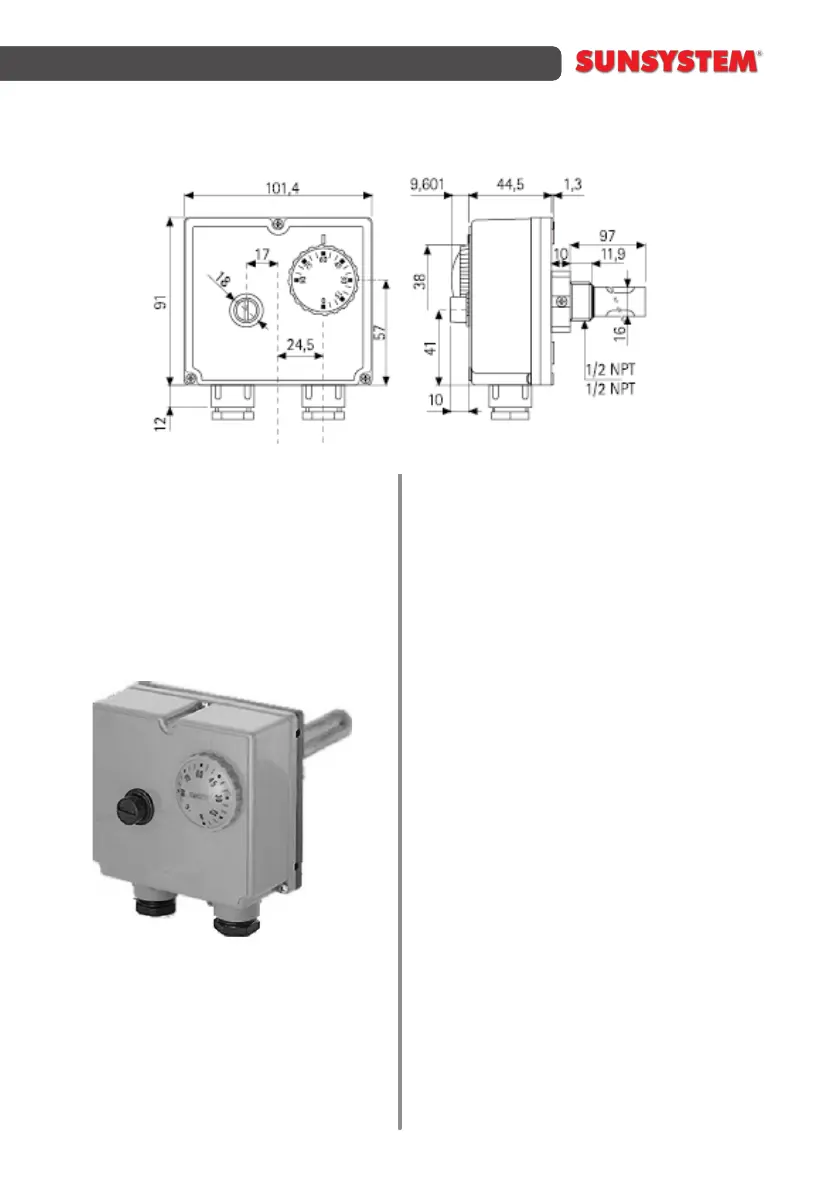

sheme 1
The thermostat may be adjusted by the
userwithintherange30°С÷80°С,andthe
thermal protecon would go o in case
thewaterreaches95°С.
This is an adjustable double THERMOSTAT
which is designed to regulate the water
temperature and ensures safety tolerance;
it can be manually adjusted (TLSC model)
orautomacallyadjusted(TLSC/Amodel).
CONFORMITY TO STANDARDS
This product is in conformity with:
-EN60730-1andsubsequenteditions;
-EN60730-2-9
CONFORMITY TO REGULATIONS
This product complies with:
-LowVoltageDirective73/23EEC
- Electromagnetic Compatibility Directive
89/336/EC
TECHNICAL CHARACTERISTICS
Temperaturerange–regulation-0°C÷
90°C;
limit-90°C÷110°C;
Tolerance
Regulation ±5k,
limit – 15 k; -6 k (depends on the type)
Temperature differential
Regulation 6 ± 2 k; 4 ± 1 k (depends
on the type)
Limit 25 ± 8 k; 15 ± 8 k (depends on
the type)
Automatic adjustment (TLSC/A) and
manual adjustment (TLSC).
Degree of protection = IP 40
Insulation class = I.
Temperaturechangerate=<1К/min.
Maximal temperature point: 80°C
Maximal temperature for electric lamp:
125°C
Accumulationtemperature:15°C÷55°C
Maximum pressure of the cartridge: 10
bar
Constant time: < 1“
Electric connection:
C-1ADJ.:10(2,5)A/250V°;
C-2ADJ.:6(2,5)A/250V~;
