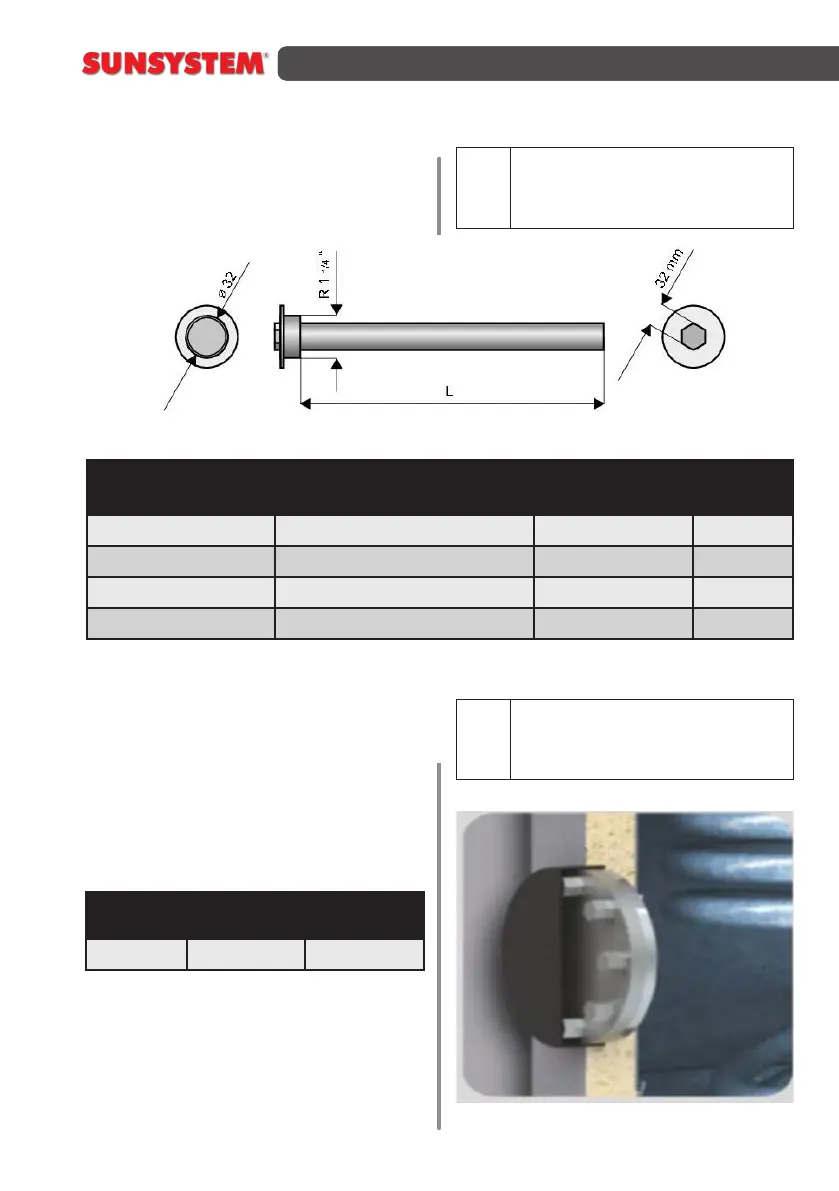

2.5. Cathodic Corrosion Protection of
Enamelled Steel tanks for domestic hot
water (DIN 4753, part 6)

Anode must be checked every
two years.
Replace the anode when needed.
Magnesium anode - connecon Size and Length:
Water tank
Capacity, L
Anode connecon
size, mm
Anode
length, mm
Anode
Pcs.
150 1
1/4”
230 1
200 1
1/4”
300 1
300 1
1/4”
400 1
400, 500 1
1/4”
600 1
2.6. Inspection opening
Large and convenient inspection opening
located in the lower part of the tank gives
access for maintenance and cleaning. The
opening is closed by an enameled flange
cover which may have a sleeve for fitting
electric heater if necessary.
Water tank
Capacity, L
Flange
diameter, mm
Opening
diameter, mm
150÷500 180 110

Do not reuse the gasket of flange.
Replace the gasket at each
inspection (opening).
