30
Overall Barbecue Dimensions – Including Side Shelves
Length Width Height
3 Burner 1361mm 605mm 1200mm

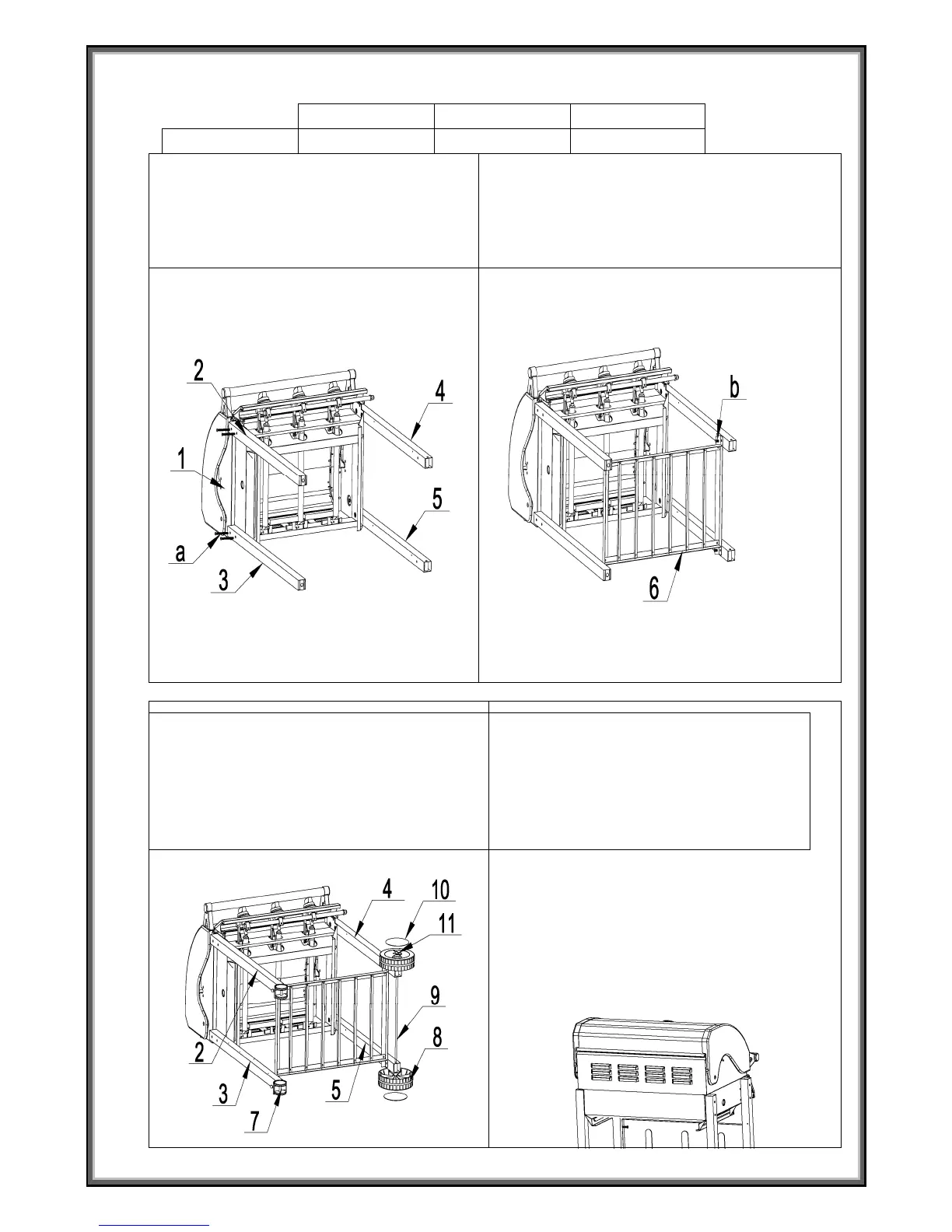

Step 1： Attach the left legs {(2) and (3)}
and right legs for wheels {(4) and (5)} to
the hood body assembly (1) by using eight
M6*50 screws (a).
Step 2： Attach the base shelf (6)
by using four M5*10 screws (b).
Step 3： Attach the castors (7) to the left and
right front legs (2,3) and, then use the wheel
axis (9) to attach the wheels (8), to the right
front and back legs (4,5). Use a pin (11) to
secure the wheels. Attach the wheel caps (10)
to the wheels (8).
Step 4：Attach the front panel (12) by using
four M4*10 screws(c).
