Installing the pipe through the roof
When installing the pipe through the roof, put a mark in the ceiling where the hole should be – aer
posioning the pipe vercally towards the planned hole. Ensureš that you avoid potenal raers.
The appropriate diameter of the hole needed will depend on the roof pitch. Start o by drilling through
the ceiling with a thin but suciently long drill, enabling you to use a hole saw from both sides
aerwards. This inially small hole will then also guide the central pilot drill of the hole saw.
When installing the pipe through a tar paper/shingle roof, the cu supplied in the installaon package
should be used. The tar paper/shingle should be heated and placed so that it covers the part of the cu
that is above the roof; the lower part of the cu should be glued in place. Use generous amounts of
asphalt glue. For turf roofs with a membrane underlay, professional assistance from a roofer should be
sought.
For turfed roofs with tar paper underneath, the pipe is installed in the same way as described for tar paper
roofs. The drainage layer covers the tar paper, and should be adjusted so that lies adjacent to the pipe.
For le and le plate roofs, the cu should also be sealed against the tar paper underlay. Please contact
a roofer or a nsmith to get a metal plate that seals the area between the pipe and the les/le plates.
Mounng the pedal

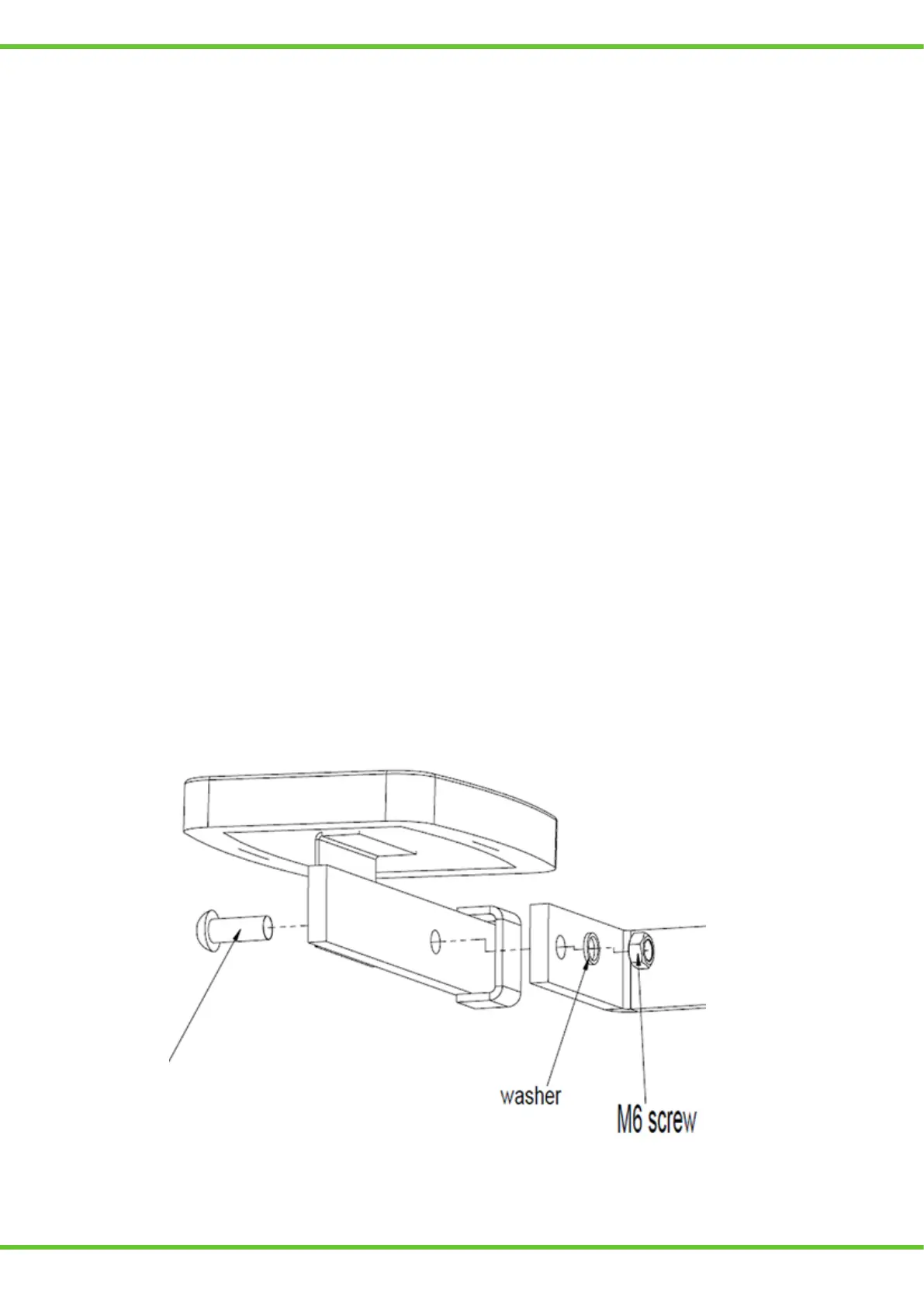

Mount the pedal to the toilet as shown in the drawings below.
