72
FX-301

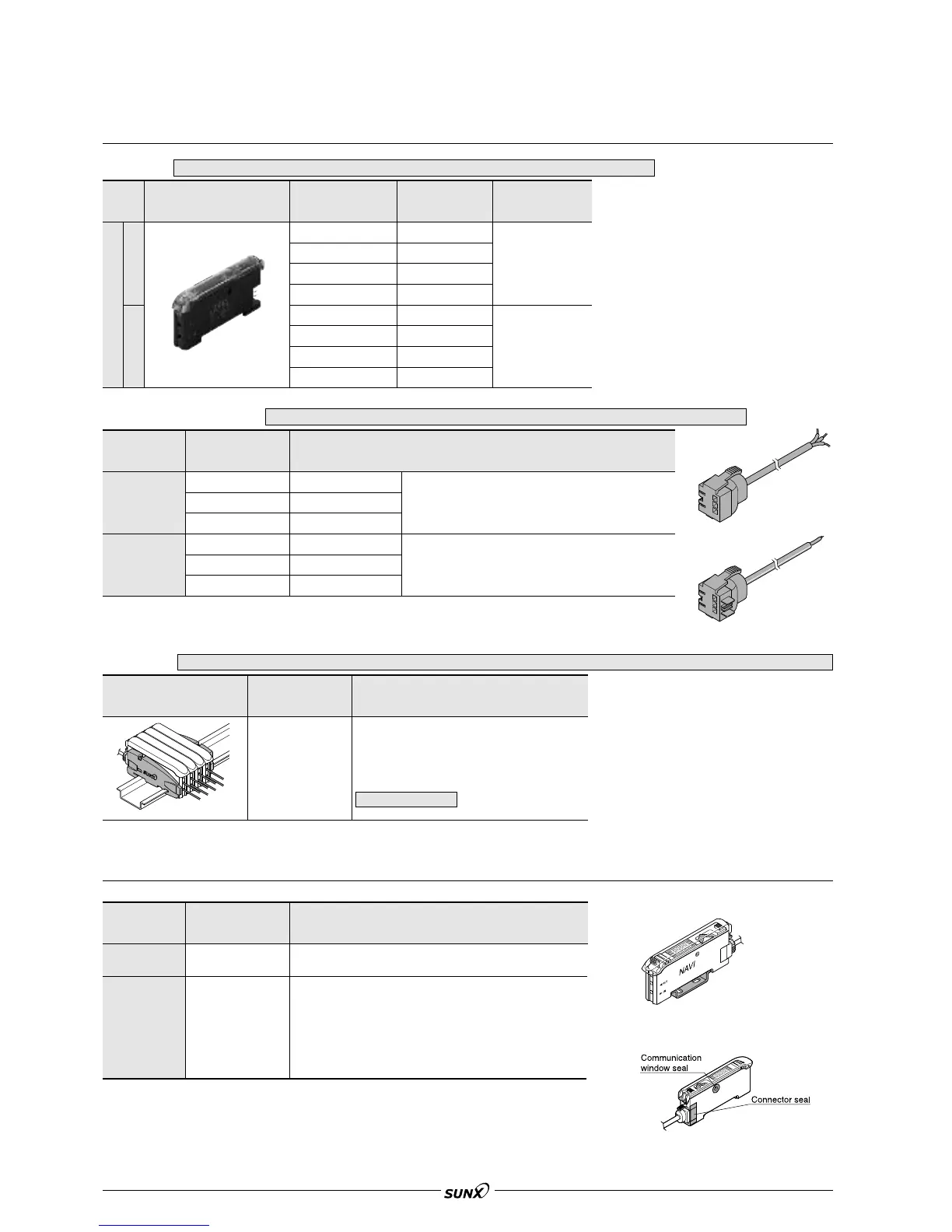

ORDER GUIDE
Type Appearance Model No. Emitting element Output
NPN output
PNP output
Digital
FX-301
FX-301B
FX-301G
FX-301H
FX-301P
FX-301BP
FX-301GP
FX-301HP
Red LED
Blue LED
Green LED
Infrared LED
Red LED
Blue LED
Green LED
Infrared LED
Amplifiers
NPN open-collector
transistor
PNP open-collector
transistor
Quick-connection cables
Type Model No. Description
CN-73-C1
CN-73-C2
CN-73-C5
CN-71-C1
CN-71-C2
CN-71-C5
Length: 1 m 3.281 ft
Length: 2 m 6.562 ft
Length: 5 m 16.404 ft
Length: 1 m 3.281 ft
Length: 2 m 6.562 ft
Length: 5 m 16.404 ft
Main cable
Sub cable
0.15 mm
2
3-core cabtyre cable, with connector on one end
Cable outer diameter: "3.0 mm "0.118 in
0.15 mm
2
1-core cabtyre cable, with connector on one end
Cable outer diameter: "3.0 mm "0.118 in
Main cable
• CN-73-C
Sub cable
• CN-71-C
Appearance Model No. Description
MS-DIN-E
When cascading multiple amplifiers, or when it
moves depending on the way it is installed on a
DIN rail, these end plates ensure that all
amplifiers are mounted together in a secure and
fully connected manner.
End plates
Quick-connection cable is not supplied with the amplifier. Please order it separately.
Quick-connection cable is not supplied with the amplifier. Please order it separately.
Two pcs. per set
OPTIONS
Designation Model No. Description
MS-DIN-2
FX-MB1
Mounting bracket for amplifier
10 sets of 2 communication window seals and 1 connector seal
Communication window seal:
It prevents malfunction due to transmission signal from another
amplifier, as well as, prevents effect on another amplifier.
Connector seal:
It prevents contact of any metal, etc., with the pins of the quick-
connection cable.
Amplifier mounting
bracket
Fiber amplifier
protective seal
Amplifier mounting bracket
• MS-DIN-2
Fiber amplifier protective seal
• FX-MB1
End plates are not supplied with the amplifier. Please order separately when the amplifiers are mounted in cascade.
