SUOMY TX-PRO TRACK-1 - Visor Removal and Re-assembly; Visor Removal Procedure; Visor Re-assembly and Verification

EN
While riding the motorcycle the visor must never be left in the
intermediate positions; it must always be locked in the locking
positions.

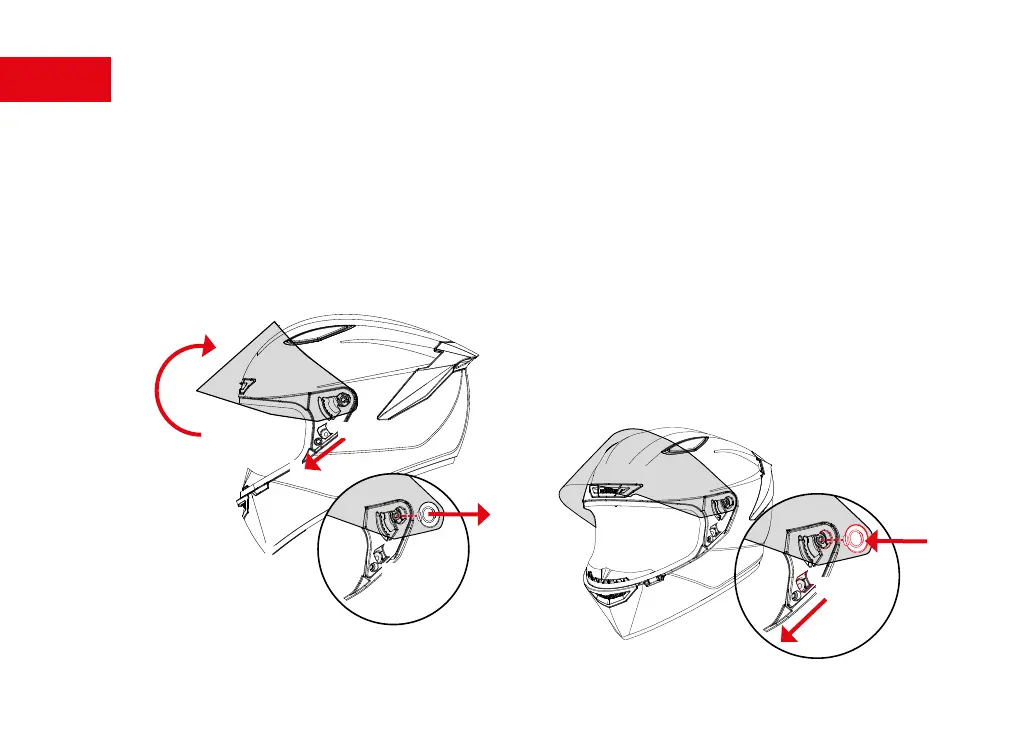

Removing the visor — Figure 13
Open the visor until it is completely open.
Slide the lever (Q) and Keep it in tension (Q)
Remove the visor from its mechanism by rotating and at the same
time by pulling it outwards.
Repeat the operation on the opposite side.
Assembly — Figure 14
To assure the proper operation of the rotation system of the visor,
before tting the visor back on, verify that all the parts (seats on
helmet, visor surface in contact with the moving parts) are perfectly
clean.
Open the visor completely. Position the visor on the mechanism so
that the rotation seat is inserted in the rotation ring.
1) Slide the lever (Q)
2) Press slightly to stick the hooks on the visor into the slots on the
rotation mechanisms
Repeat the operation on the opposite side.
After tting the mechanism verify that the visor is tightly xed to
the helmet, that it rotates freely and that it locks correctly into the
locking positions.
If this doesn’t happen and the rotation mechanism of the visor
doesn’t work correctly, do not use the helmet and contact Suomy
authorized personnel only.
FIGURE13
1
2
3
Q
Q
FIGURE 14
1
2
Q
30
