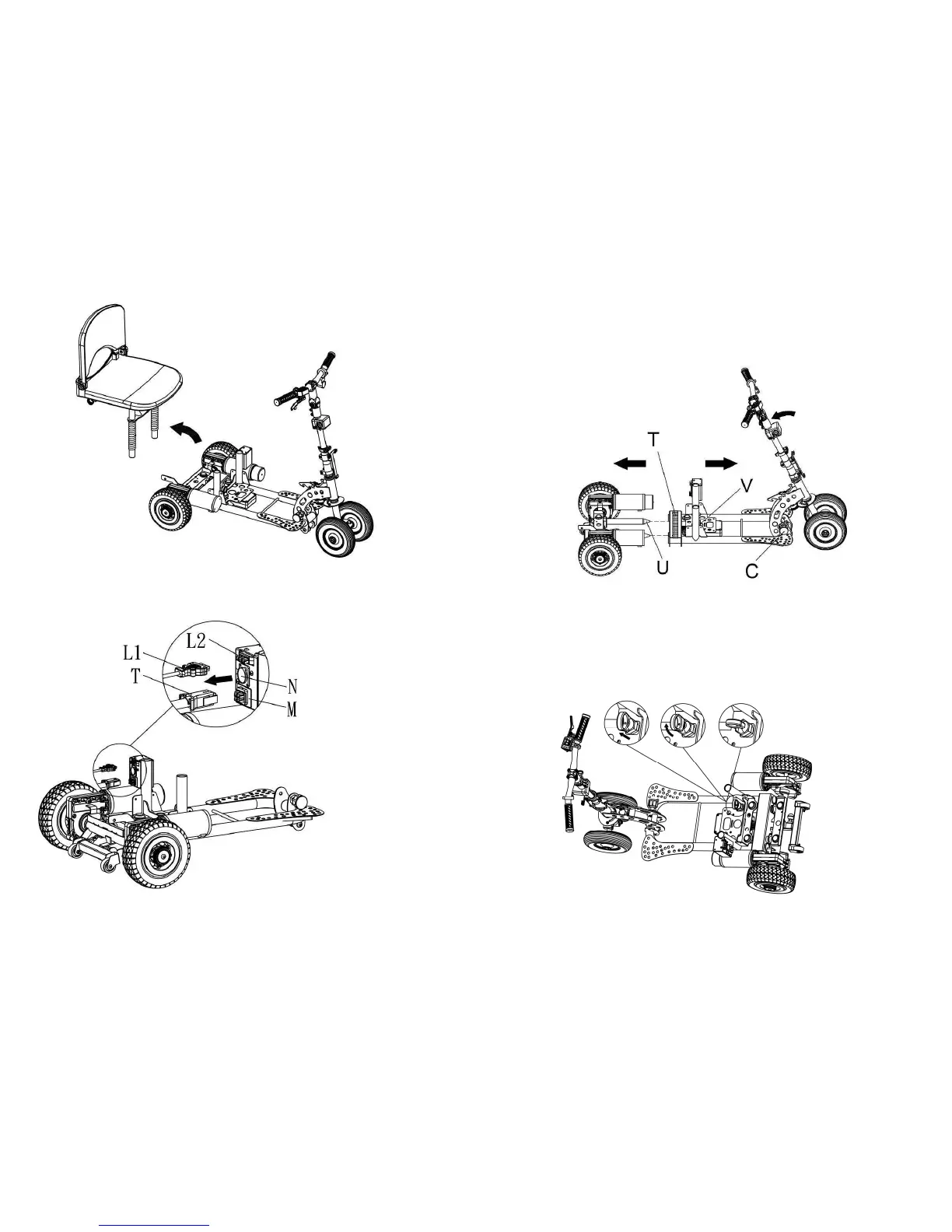

● Remove the seat.
● Press the lock tab of
connector and pull out
to disconnect the
connector as per
illustration.
- 29 -
Frame Disassembly
Assembly and disassembly is best carried out by pulling the locking pin
C and allowing the tiller assembly to fold forward until it rests
on the ground.
● Unplug all connectors.
● Pull the lock pin knob (V) and turn it to the “unlock” position, pull lock
pin (C) and lower the tiller until the frame rests on the ground.
● Hold the strap (T) with one hand and the rear section of the scooter
frame with the other hand and slide the 2 halves of the frame apart.
- 30 -
