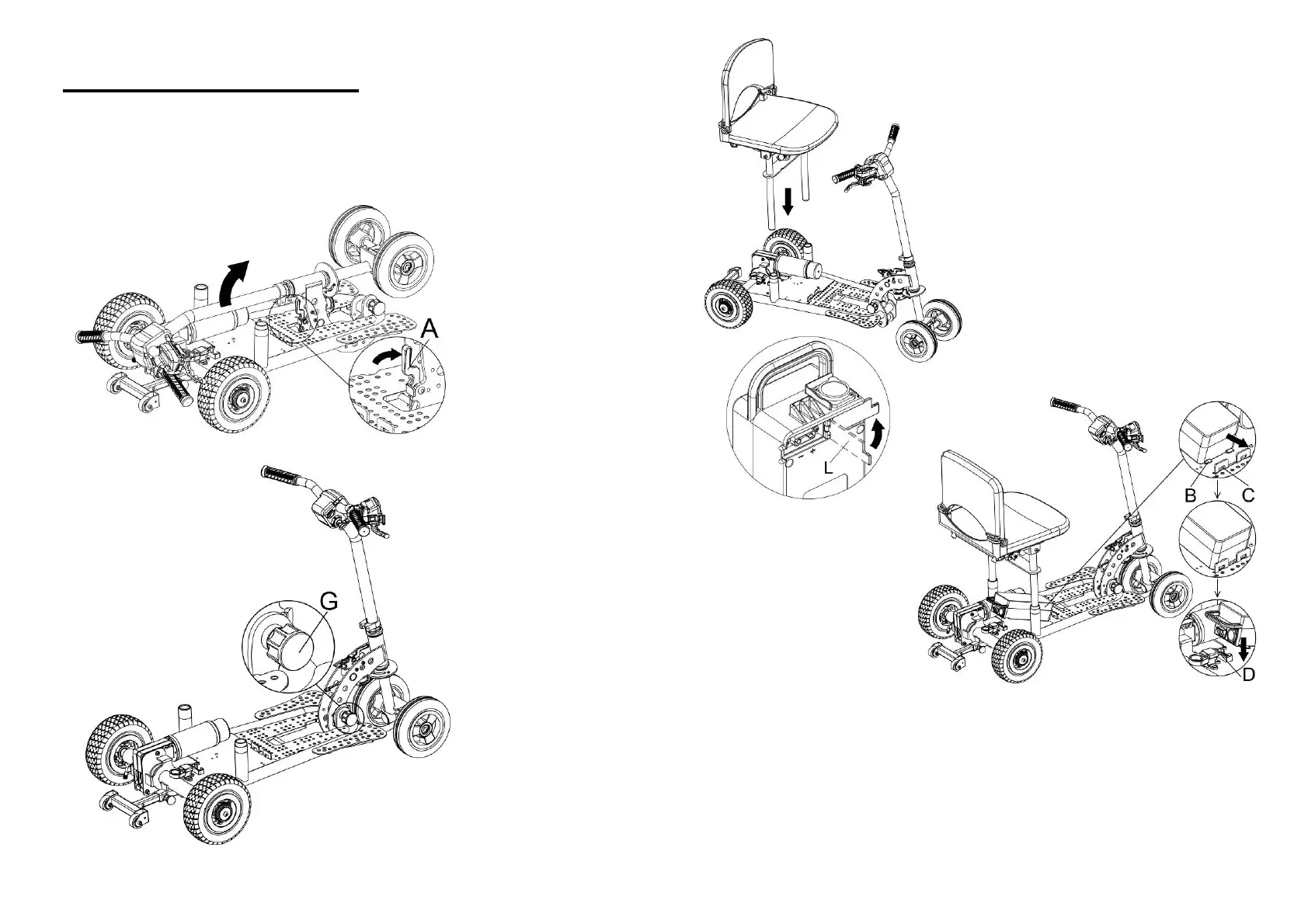

TO OPEN THE SUPALITE
● Use one hand to hold the tiller handle and use the other hand to
push the lock pin lever (A) per the illustration and lift the handle.
Continue lifting the tiller until you hear the “click”, the locking into
position.
● You must check that
the pin “G” has
locked into position.
- 13 -
● Fit the seat onto the frame,
and insert the seat frame
tubes into the corresponding
holes on the main frame,
Open the terminal cover
“L” of the battery module
first before locking into
scooter.
● Insert 2 block (B) into slots (C) as illustrated direction and push
battery pack downward until you hear “click”, the locking of cam
locker “D”.
● You must check that the battery module has locked into
position.
- 14 -
