Type II camera supports 3-axis adjustment. Loosen the tilt adjust
screw to adjust the tilt angle [0°~75°], hold the black liner to adjust
the pan angle [0°~355°], and hold the lens to rotate the camera
[0°~355°]. See figure below.
Tilt Adjust
Screw
0°~
355°
0°~355°
0
°~75°

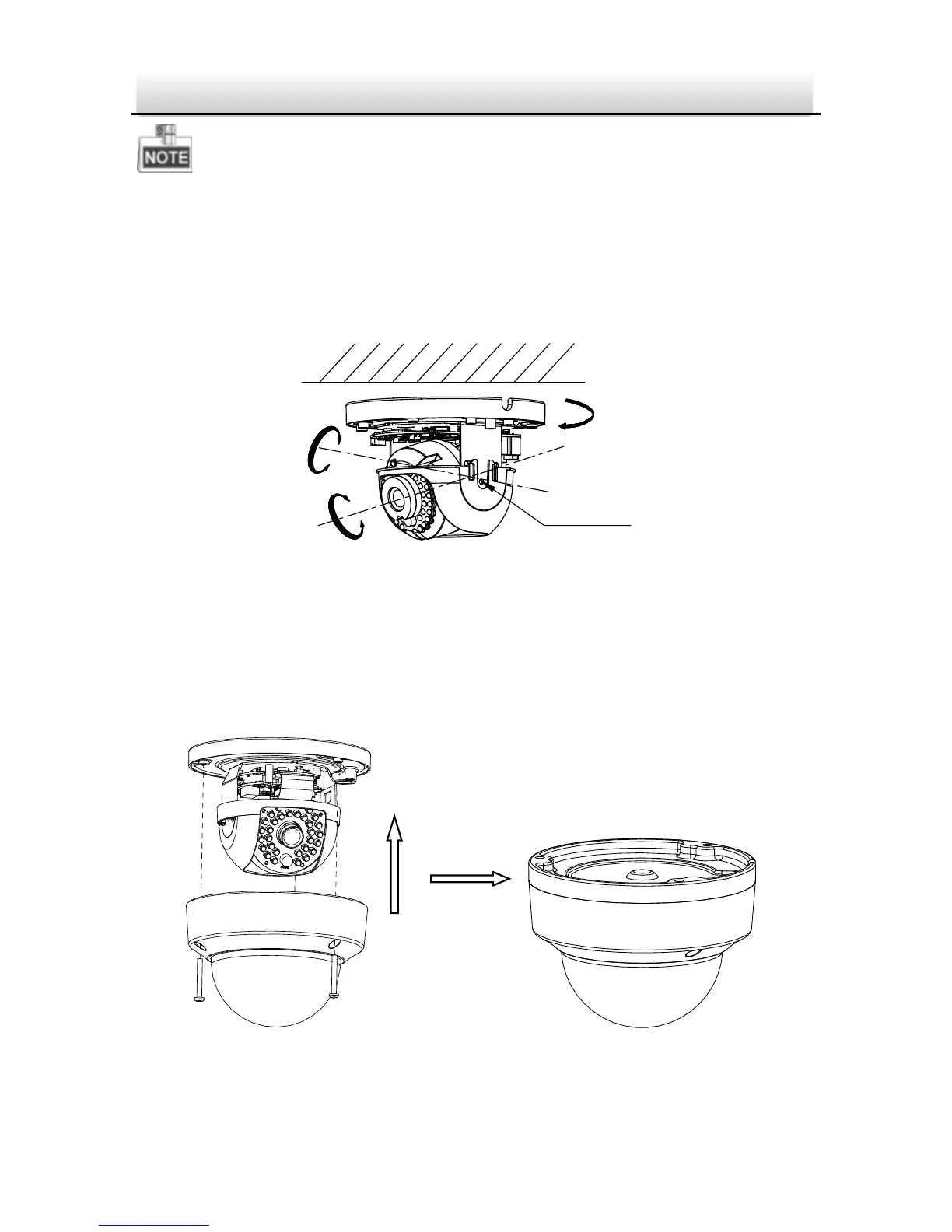

3-axis Adjustment of Type II Camera Figure 2-6
6. Reinstall the bubble and tighten the screws.
Bubble Reinstallation Figure 2-7
