Superior IO-360 SERIES User Manual

Model Specification Data
IO-360 Series Engine
9 Appendix B • IO-360 Model
© March 2004 Superior Air Parts Inc. Specification Data

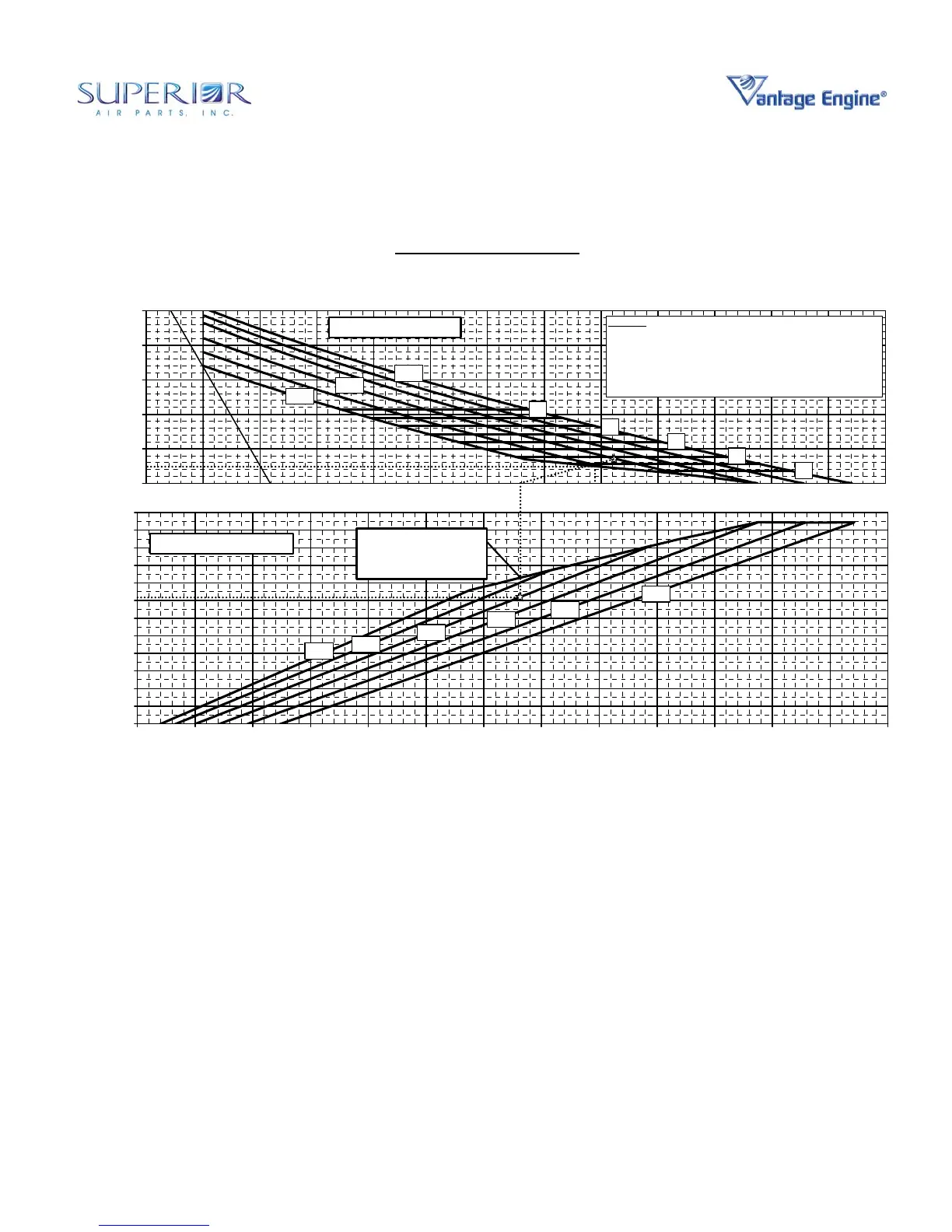

Figure 8 • Altitude Performance At Best Power
18
19
20
21
22
23
24
25
26
27
28
29
30
60 70 80 90 100 110 120 130 140 150 160 170 180 190
Power (Hp)
Absolute Dry Manifold
Pressure (In-Hg)
Sea Level Performance
2400
2200
2600
Limiting manifold
pressure for
continuous operation
2700
2300
2500
Altitude Performance
Superior Vantage O/IO-360 Series
Best Power
0
5
10
15
20
25
Pressure Altitude (Ft x 1000)
Altitude Performance
28
26
24
22
20
2700
2200
0°F-50°F +50°F
Std Alt Temp
2400
Example:
Flying at 25.1" MP, 2400 RPM, 2200 ft and at 75° F outside
air temp the engine should produce 139 Hp on a standard day (HPs).
However, the inlet air is 25° F higher than standard day (75° F vs. 50°
F), so we must correct for this by multiplying HPs by the square root of
the temperature ratio (adjusting for absolute, or Rankine, temperature).
Thus, 139x [(460+50)/(460+75)]^0.5 = 135.7 HP actual.
