Superior IO-360 SERIES User Manual

Installation & Operation Manual
O-360 and IO-360 Series Engines
27 Chapter 3 • Aircraft / Engine
© March 2004 Superior Air Parts Inc. Integration Considerations
Engine Forcing Functions on Firewall
Start-Up & Shut-Down Operation
Superior Vantage O/IO-360
0 5000 10000 15000 20000 25000
Frequency (Hz)
Torsional
Bending - Horizontal
Bending - Vertical
Engine Forcing Functions on Firewall
Steady State Operation
Superior Vantage O/IO-360
0 5000 10000 15000 20000 25000
Frequency (Hz)
Torsion
Bending - Horizontal
Bending - Vertical

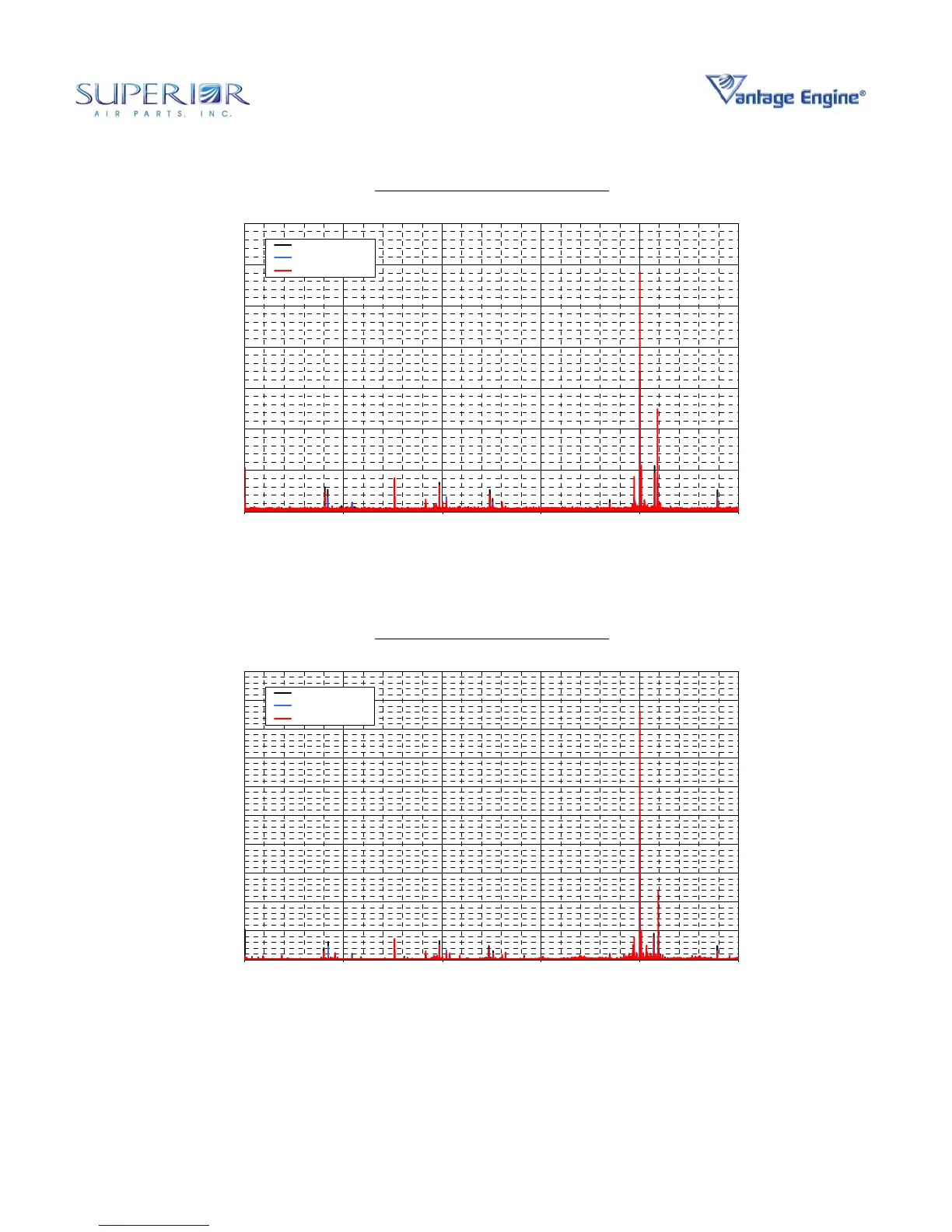

Figure 3-8 • Engine Mount Forcing
Function for Engine Startup and Shutdown
Figure 3-9 • Engine Mount Forcing
Function for Steady State Conditions
