Supero Super X8DT3 User Manual

2-30
X8DT3/X8DTi/X8DT3-F/X8DTi-F/X8DT3-LN4F/X8DTi-LN4F User's Manual
J5
T-SGPIO2
T-SGPIO1
JLAN2
JLAN1
JF1
1
COM2
JWOL
Battery
JSM1
JSM2
JBT1
JUSB2
JUSB3
1
BMC/VGA
CTRL
J26
JPG1
JPL1
JPL2
JWD
JPS1
JPT1
JI2C2
JI2C1
D1
LE1
LES2
J6
JD1
SP1
JOH1
JL1
JPS2
JPW3
JPW1
JPW2
1
X8DT3/i Series
BIOS
LAN3
LAN1
LAN2
VGA
Slot6 PCI-E 2.0x8
PCI 33 MHz
I-BUTTON
P1-DIMM3A
P1-DIMM3B
P1-DIMM2A
P1-DIMM2B
P1-DIMM1A
P1-DIMM1B
P2-DIMM1A
P2-DIMM2B
P2-DIMM2A
P2-DIMM3B
SAS4~7
SAS0~3
Fan6
Fan5
Fan2
Fan8/
CPU2 FAN
Fan4
Fan3
Fan7/
CPU1
Fan1
Slot3
P2-DIMM3A
KB/MOUSE
COM1
LAN4
Slot2 PCI-E x4
I
-
SATA0
I-SATA1
I
-
SATA2
I-SATA3
I
-
SATA4
Slot1 PCI 33MHz
Floppy
USB6/7
USB4/5
USB3
USB2
USB 0/1
I-SATA5
P2-DIMM1B
LAN
CTRL
LAN
CTRL
Slot5 PCI-E 2.0x8 in x16
CPU2
CPU1
ICH10R
North Bridge
LSI
1068E
LES1
(X8DT3/i-LN4F)
SI/O
(*X8DT3 Models only)
SPEC
Dedicated LAN
Slot4 PCI-E 2.0 x16
(X8DT3/i-F/-LN4F only)
(*X8DT3 Models only)
J27J28
JPB
Intel 5520
South Bridge

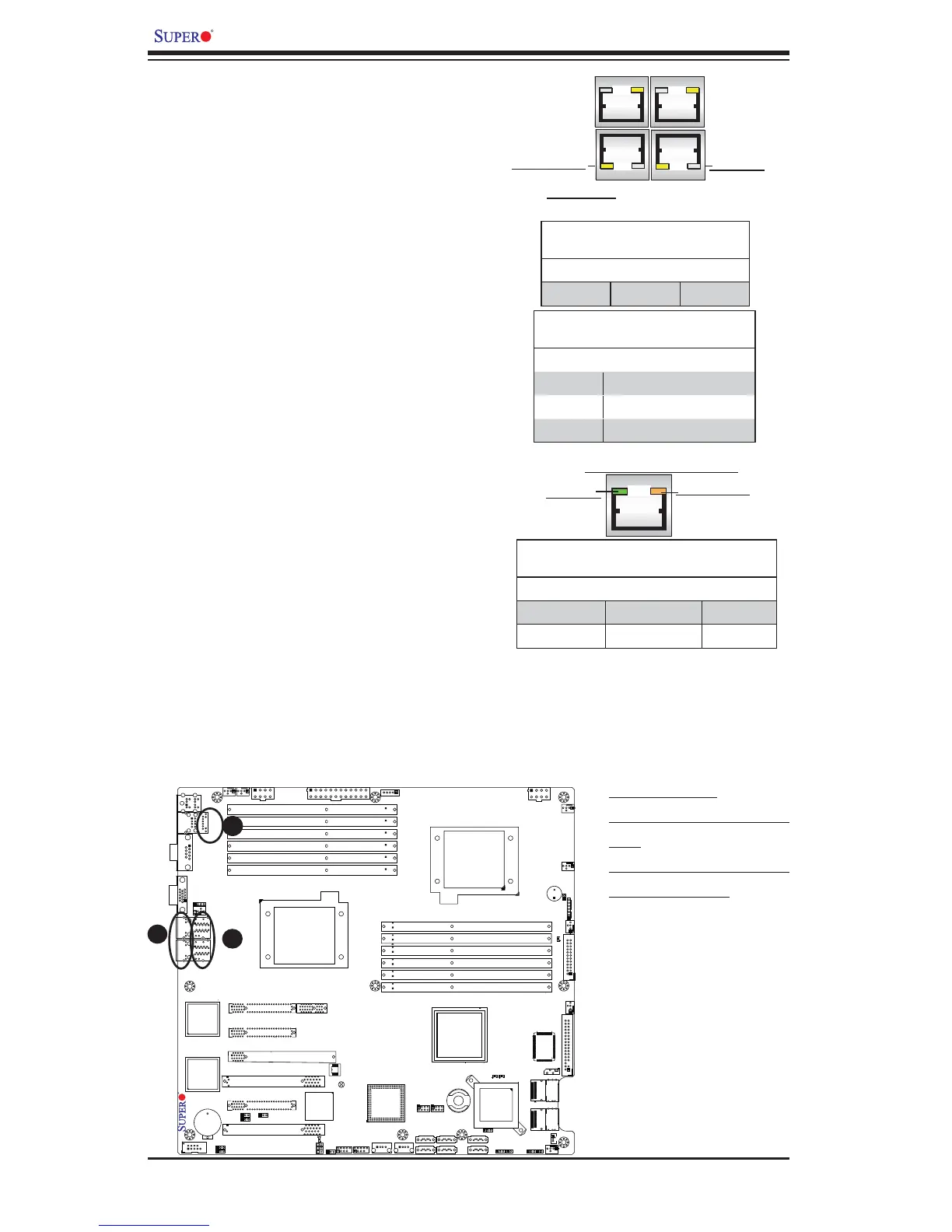

2-8 Onboard LED Indicators
A
B
A. LAN1/2 LEDs
B. LAN3/4 LEDs (X8DT3/i-
LN4)
B. Dedicated LAN LEDs
(X8DT3/i-F/-LN4F)
GLAN LEDs
Two LAN ports (LAN 1/LAN 2) are located
on the IO Backplane of the motherboard.
In addition, LAN3/LAN4 are located on the
X8DT3/i-LN4F. Each Ethernet LAN port
has two LEDs. The yellow LED indicates
activity, while the Link LED may be green,
amber or off to indicate the speed of the
connections. See the tables at right for
more information.
LAN 1/LAN 2 Link LED (Right)
LED State
LED Color Defi nition
Off No Connection or 10 Mbps
Green 100 Mbps
Amber 1 Gbps
LAN 1/LAN 2 Activity LED (Left)
LED State
Color Status Defi nition
Yellow Flashing Active
Rear View (when facing the
rear side of the chassis)
Activity LED
Link LED
IPMI Dedicated LAN LEDs (X8DT3/i-F/-
LN4F Only)
In addition to LAN 1/LAN 2, an IPMI Dedicat-
ed LAN is also located on the IO Backplane
of the X8DT3/i-F/-LN4F. The amber LED on
the right indicates activity, while the green
LED on the left indicates the speed of the
connection. See the tables at right for more
information.
Link LED
Activity LED
IPMI LAN (F models only)
IPMI LAN Link LED (Left) &
Activity LED (Right)
Color Status Defi nition
Link (Left) Green: Solid 100 Mbps
Activity (Right) Amber: Blinking Active
C
