SERVICING VALVE
Stop pump, close gate valve in suction & discharge before proceeding.
а) Set handle in FILTER position.
b) Remove cover screws.
с) Lift cover and key assembly out.
ТО ASSEMBLE:
1) Place valve key so that wedge opening is at ТОР port (handle in Filter position). Flat edge of cover
screw lug should align with flat edge of body screw lug.
2) Position cover O-ring.
3) Secure assembly to body with cover screws. Tighten cover screws evenly and alternately. Do not
over-tighten.
*Pipe tap boss provided for optional influent pressure gauge.

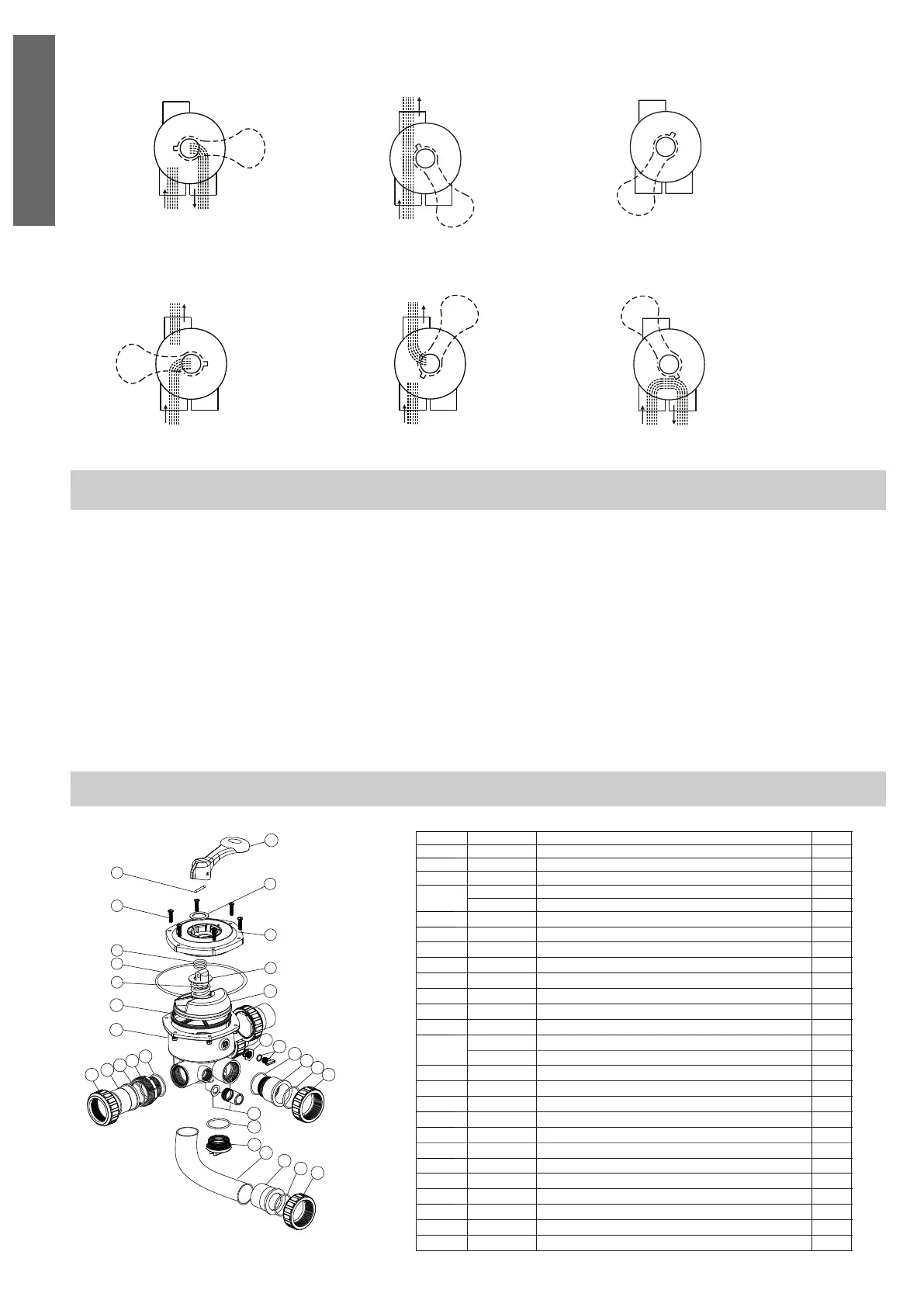

PARTS OF 1.5’’ VALVE
2
4
6
8
9
11
12
17
15
24
23
22
3
5
7
10
13
14
15
16
25
17
18
15
19
20
21
25
17
1
Item
Part No.
Description
1
01013003
Handle (Big)
2
03018008
Pin for handle
3
01181001
Washer for handle
4
89281203
M6x25 Screw with Nut for Camber Lid
89280107
M6x30 Screw with Nut for Standard Lid
5
01013004
1.5"Side Mount Valve Standard Lid (Black)
6 02011022
O-Ring for 1.5" Valve Rotor
7
01181002
Washer for Spring
8
02011002
O-Ring for 1.5" Valve Lid
9
03014001
Spring for 1.5" Side Mount Valve
10
01021001
1.5" Valve Rotor
11
02311002
Spider Gasket
12
01013009
1.5" Side Mount Valve Bottom Body (Black)
13
01111048
Connector for Pressure Gauge/Stopper
14
89021303
Drain Plug with O-ring
15
02020013
O-Ring
16
01013018
1.5"Union Tale (Black)
17
01013017
1.5" Union Nut (Black)
18
89280104
Sight Glass with O-Ring
19
01013100
1.5" Side Mount Valve Plug (Black)
20
01013149
1.5" Elbow Tube (Black) 120mm
21
01171002
1.5" Union (Metric)
22
01013015
1.5"Connector with External Thread(Black)
23
02011003
O-Ring for Union Adaptor
24
01171153
1.5"Union
25 02011003
O-Ring
Qty
1
1
1
6
6
1
2
1
1
1
1
1
1
1
1
5
1
5
1
1
1
1
3
3
3
2
02011139
O-Ring
1
FILTER WASTE CLOSED
BACKWASH RINSE RECIRCULATE
WASTE WASTE WASTE
IN FLOW OUT FLOW
IN FLOW OUT FLOW
IN FLOW OUT FLOW
IN FLOW OUT FLOW IN FLOW OUT FLOW IN FLOW OUT FLOW
WASTE WASTE WASTE
