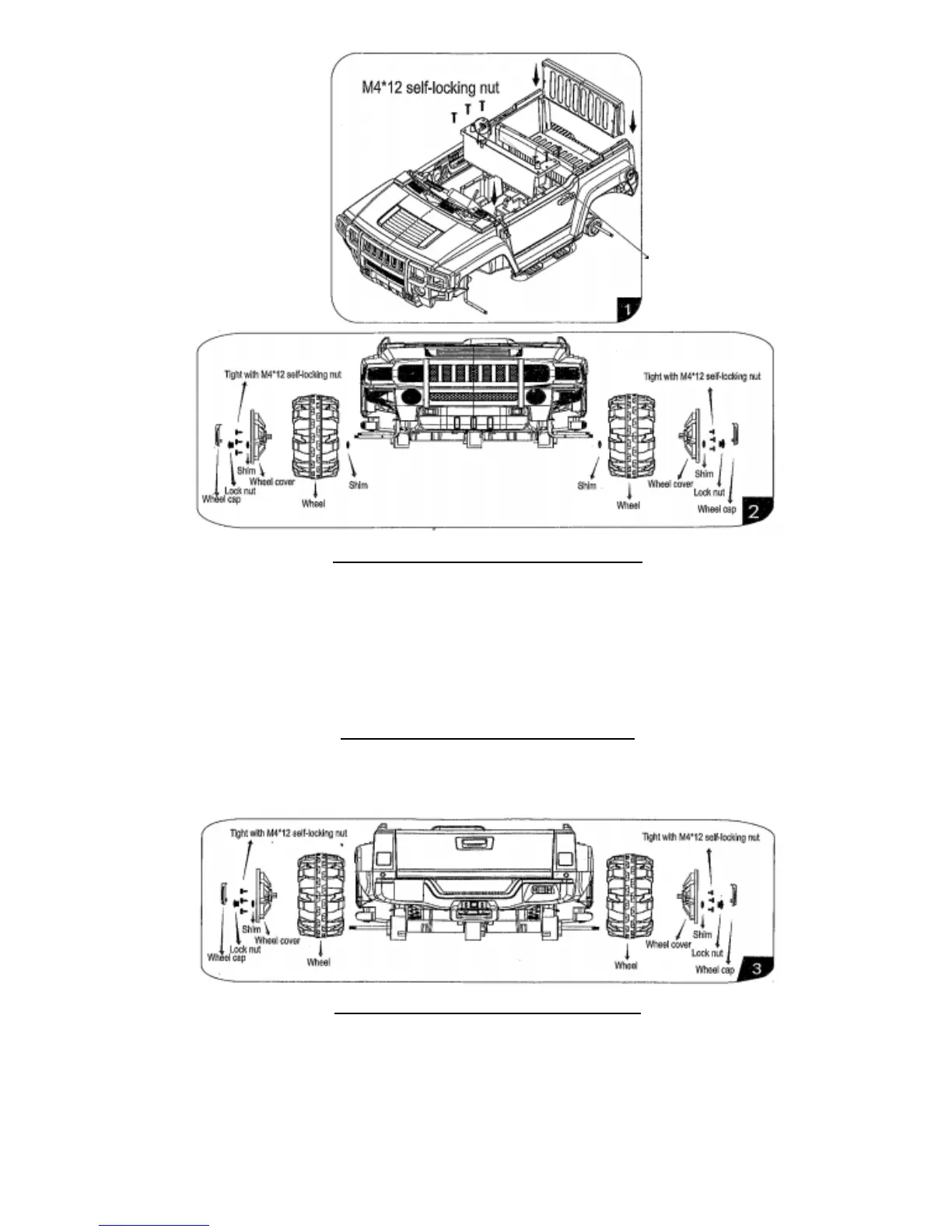

2: Installation of Front Wheels:
A. Put one washer on and then put on the tire
B. Position the wheel cover on the wheel, then tighten with 3 pcs
of M4*12 screws. Then put one washer on the axle and
tighten down a M10 self locking nut.
C. Snap on the center wheel cap
3: Installation of Rear Motors
A. Slide R motor onto right rear axle and plug into control box
B. Slide L motor onto left rear axle and plug into control box
4: Installation of Rear Wheels:
Slide the rear wheels onto the rear axle followed by the wheel
covers. Tighten the covers down with 3 pcs of M4*12 screws. Add one
washer and then tighten down the M*10 self locking nut.
