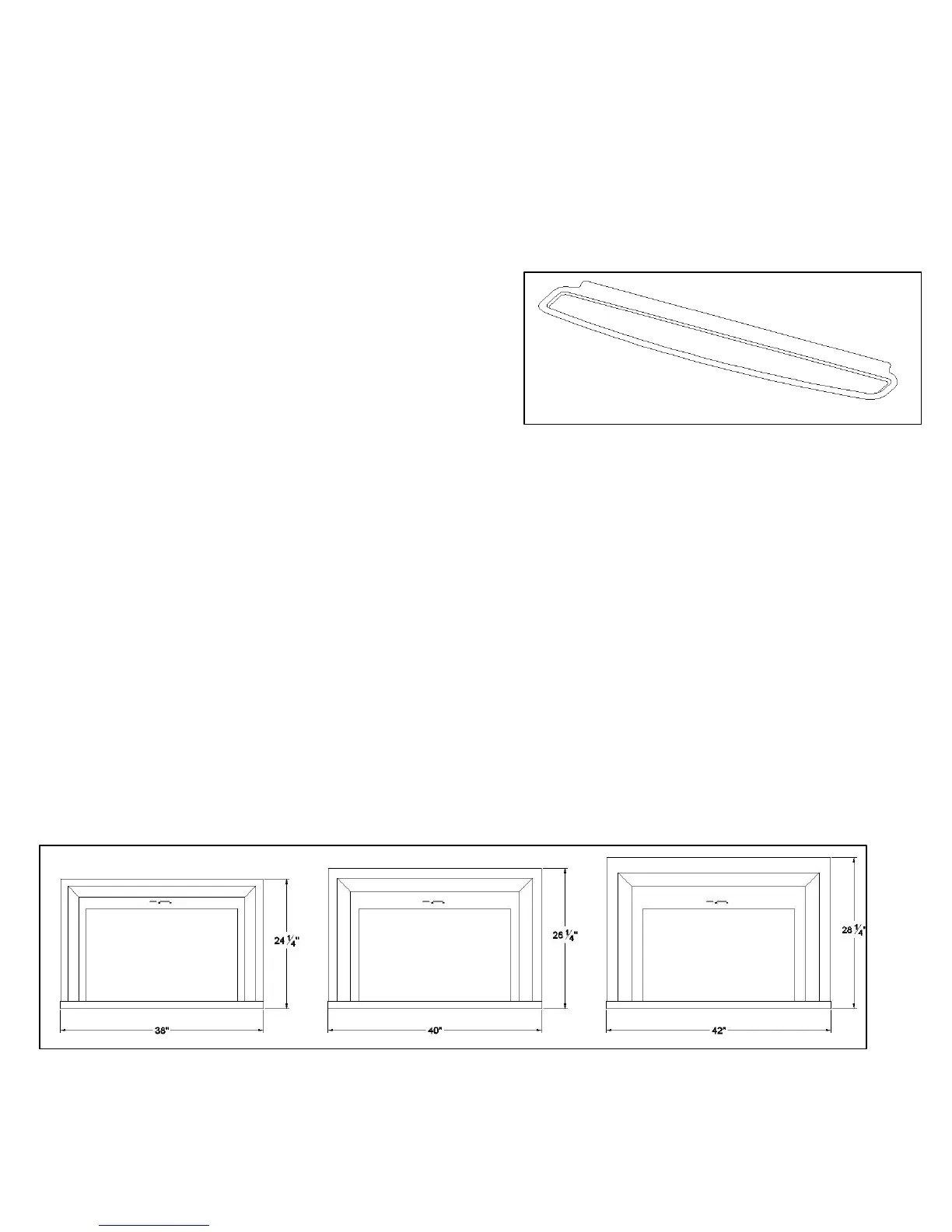

Figure 10: Surround Size Options - Small, Medium, and Large (Left to Right)
2.6 Door
The FUSION wood burning insert comes with a Pyroceramic glass panel door. Pyroceramic is the
highest grade available for fireplaces and stoves and can withstand temperatures up to 1300
o
F. To
remove the door, open the door, lift it and pull it towards the bottom until the rod exits from the hinge
holes.
NOTE: The door of the FUSION must remain closed at all times during operation.
2.7 Removable Ash Lip
The Ash Lip is a removable accessory that comes
standard with the FUSION insert (Figure 7). It is
installed on the door holder (under the two small
angled tags below the door) and prevents ashes from
falling onto the front of the hearth. The Ash Lip can be
installed with the door open or closed. It is safe to
operate the unit without the Ash Lip.
2.8 Blowers
The FUSION wood burning fireplace insert is equipped with two AC centrifugal compact fans on
either side of the surround (electrical rating: 115V, 60Hz, and 19W).
CAUTION: Make certain that the fireplace in not in operation and the blowers are unplugged
before accessing the electrical wiring.
Plug the power cord into an 115V grounded outlet for protection against a power surge. The blowers
will turn on and turn off automatically during the operation of the unit. As the temperature of the
fireplace insert increases and the heat activated sensor reaches 95°F, the fans will turn on. Note that
the average time it takes for the fans to activate is between 30 to 45 minutes after starting a fire. The
fans will turn off once the fireplace has cooled down and the heat activated sensor reaches 85°F. The
speed of the fans can be adjusted with the variable speed control mounted on the wall. It is safe to
operate the FUSION in the event of a power failure (fans not powered).
2.9 Surround
The FUSION wood burning insert is available in three different sizes. Refer to Figure 10 for the
dimensions of the different surrounds available.
NOTE: SUPREME FIREPLACES INC. reserves the right to alter the dimensions of the surrounds
without prior notice.
Figure 9: Removable Ash Lip
