FCC Statement
This equipment can generate, use and radiate radio
frequency energy and, if not installed and used in
accordance with the instructions in this guide, may
cause interference to radio communications. This
equipment has been tested and found to comply with
the limits for a Class A computing device pursuant to
Subpart J of Part 15 of the FCC rules, which are desig-
ned to provide reasonable protection against radio
interference when operated in a commercial
environment. Operation of this equipment in a reside-
ntial area is likely to cause interference, in which case
the user, at his own expense, will be required to take
whatever measures are necessary to correct the
interference.
CE Declaration of conformity
This equipment complies with the requirements relating to
electromagnetic compatibility, EN 55022 class A for ITE
and EN 50082-1. This meets the essential protection
requirements of the European Council Directive 89/336/
EEC on the approximation of the laws of the Member
States relating to electromagnetic compatibility.
Trademarks
All company, brand, and product names are trademarks or
registered trademarks of their respective companies.
Copyright
No part of this guide may be reproduced by any means without
written permission from SURECOM Technology Corp., ex-
cept that the purchaser may copy necessary portions for inte-
rnal use only.
Copyright 2002 by SURECOM Technology Corp.
All rights reserved.
c
Switch to Hub

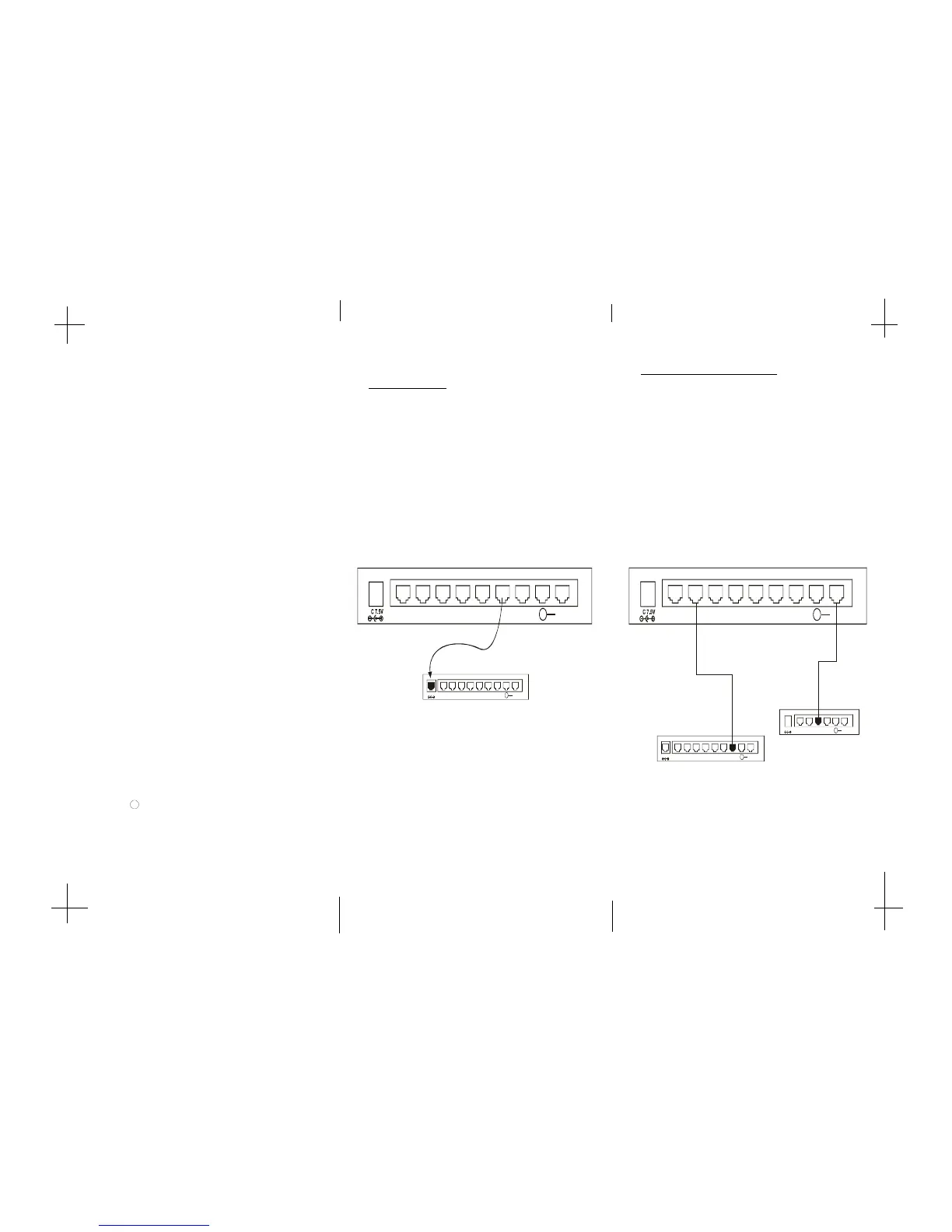

A hub (10BASE-T or 100BASE-TX) can be connected
to the N-Way Switch via a two-pair Category 3/4/5 UTP
/STP straight cable. The connection is accomplished
from any normal port of the N-Way Mini Switch
to the uplink port of the connected hub.
Hub without Uplink Port
Using straight cable
When using straight cable, the connection can be made
from the Uplink port shared with the port #1 of the 8-Port
N-Way Mini Switch to any port of the Hub .
Using crossover cable
When using crossover cable, the connection can be made
from any port (the port #1-8) of the 8-Port N-Way
Mini Switch to any port of the Hub .
7
8 9
8765432
Up-Link
1
DC 7.5V
8765432
Up-Link
1
8765432
Up-Link
1
DC 7.5V
8765432
Up-Link
1
DC 7.5V
5432
Up-Link
1
The 8-Port N-Way Mini Switch
The 8-Port N-Way Mini Switch
Straight Cable
HUB A
Crossover Cable
HUB B
