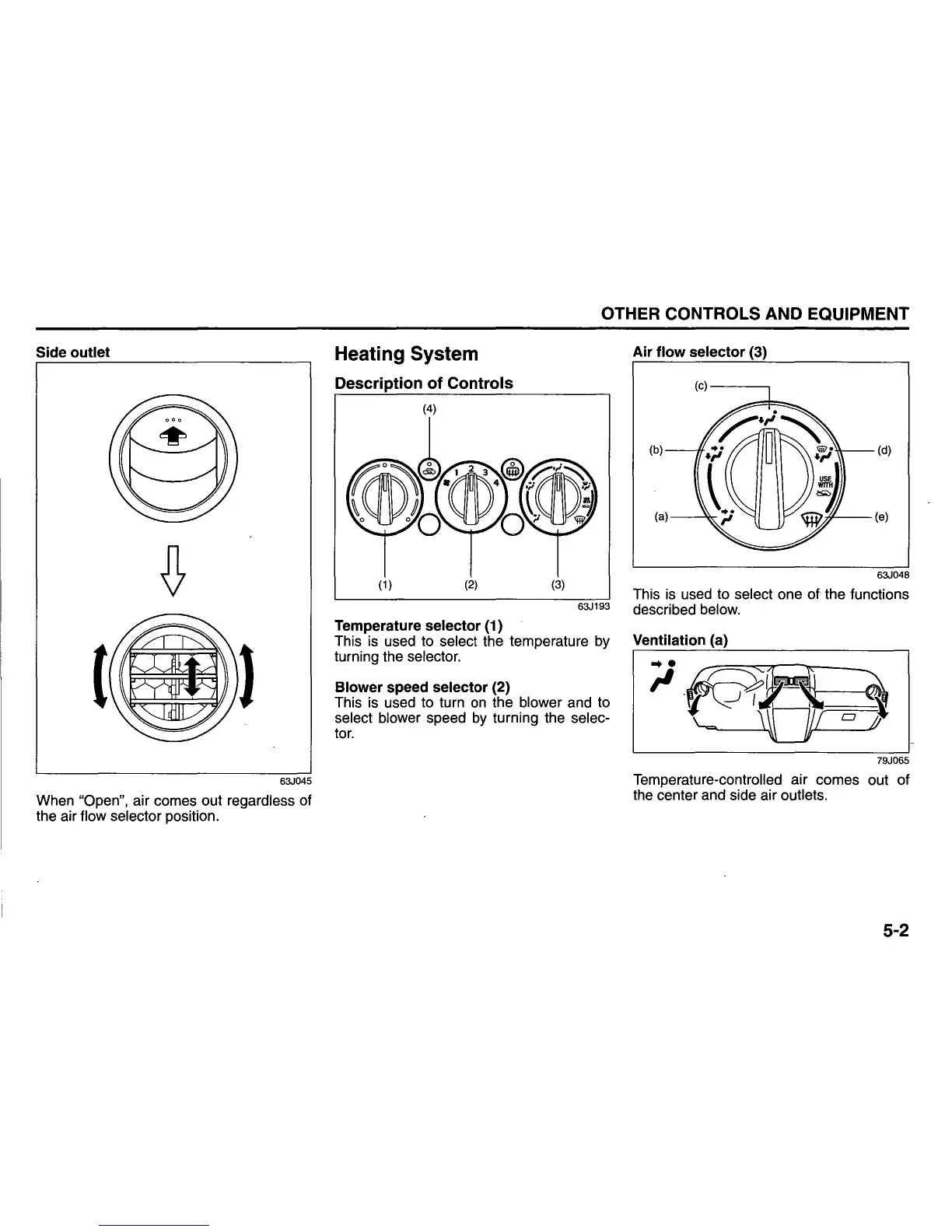

Side outlet
I
)
63J045
When "Open", air comes out regardless of
the air flow
selector position.
OTHER CONTROLS AND EQUIPMENT
Heating System
Description of Controls
(1) (2)
Temperature selector (1)
(3)
63J193
This
is
used to select the temperature by
turning the
selector.
Blower speed selector (2)
This is used to turn
on
the blower and to
select blower speed
by
turning the selec-
tor.
Air flow selector (3)
(c)--~
(b)
(d)
(a)
(e)
63J048
This is used to select one of the functions
described
below.
Ventilation (a)
79J065
Temperature-controlled air comes out of
the center and side air
outlets.
5-2
