Suzuki DF80A - Page 72

72
4. Inspect the fuse and replace with new fuse if
needed.
NOTE:
If a fuse is blown, try to determine the root
cause and correct it.
If the cause is not corrected, the fuse may be
blown again.
 WARNING
If you replace a blown fuse with a fuse having
a different amperage rating or with a substi-
tute such as aluminum foil or a wire, extensive
electrical system damage and a fire may
result.
Always replace a blown fuse with a fuse of the
same type and rating.
NOTICE
If a new fuse blows in a short time after instal-
lation, you may have a major electrical system
problem.
Consult your SUZUKI marine dealer.

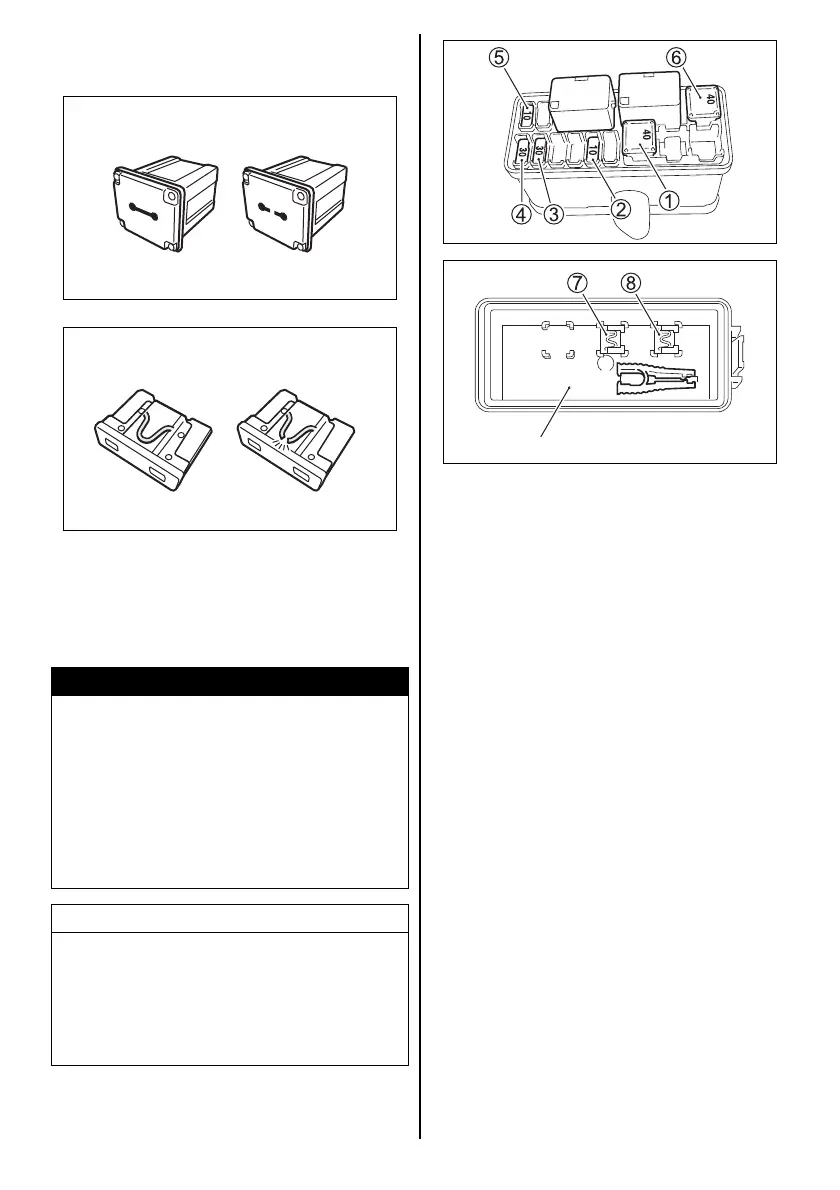

Normal fuse
Main fuse (40A)
Blown fuse
Normal fuse Blown fuse
1 Main fuse: 40A
2 PTT switch fuse: 10A
3 Ignition coil/Injector/ECM/Fuel pump fuse: 30A
4 Starter motor relay fuse: 30A
5 IAC fuse: 10A
6 Spare fuse: 40A
7 Spare fuse: 30A
8 Spare fuse: 10A
NOTE:
Spare fuses 7 and 8 are provided for the back
of fuse box cover.
Fuse box cover
