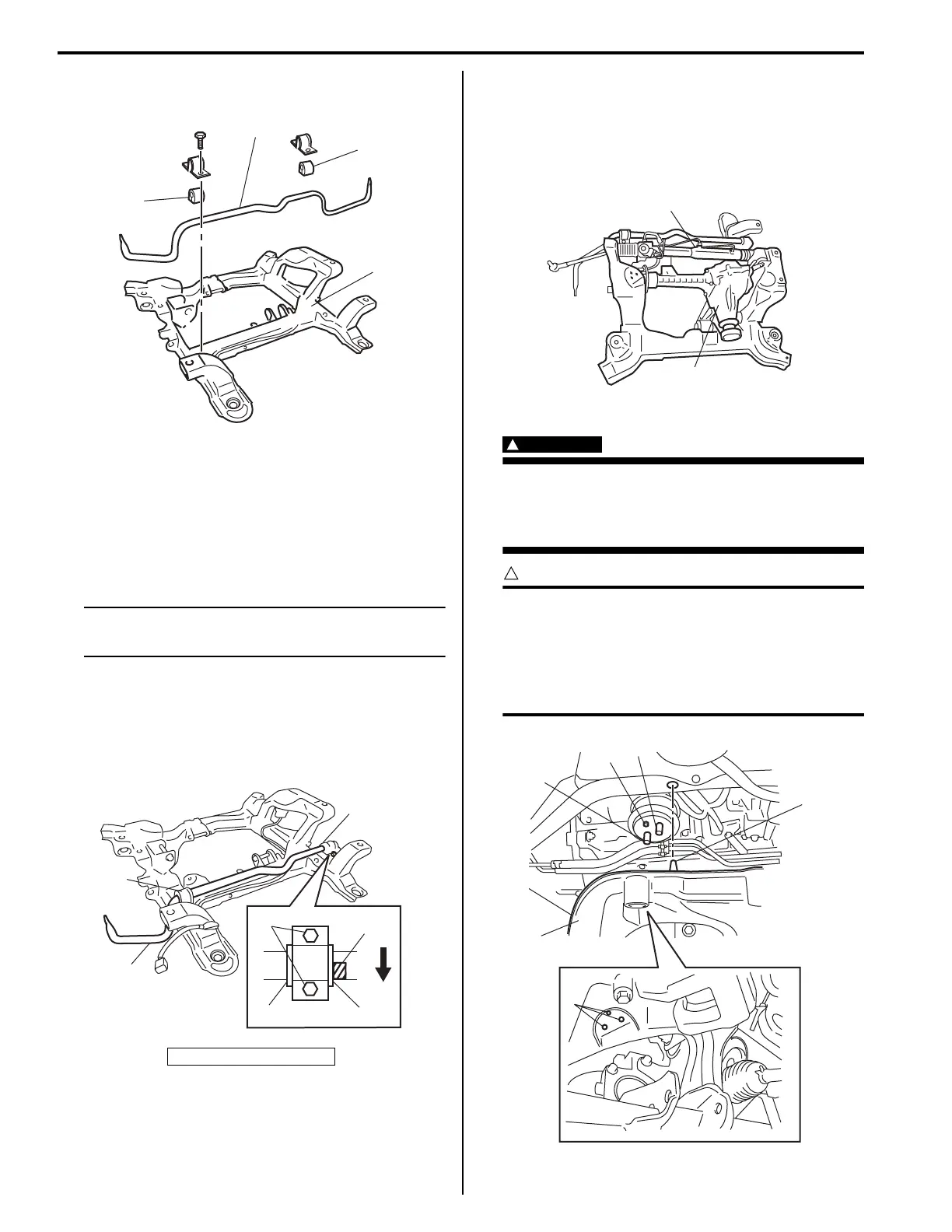

2B-18 Front Suspension:
18) Remove stabilizer bar (1) and bushing (2) from
suspension frame (3).
Installation
1) When installing stabilizer, loosely assemble all
components while insuring that stabilizer is centered,
side-to-side.
2) Install stabilizer bar (1), stabilizer bushing (2) and
stabilizer mounting bracket (3) to suspension frame.
NOTE
Install the stabilizer bar whose mark (5) is to
front.
3) Tighten stabilizer bar mounting bracket bolts (4) to
specified torque.
Tightening torque
Stabilizer bar mounting bracket bolt (a): 50 N·m (
5.0 kgf-m, 36.5 lb-ft)
4) Install P/S gear box assembly (1) and front
differential assembly (2) referring to “P/S Gear Case
Assembly Removal and Installation: in Section 6C in
related manual” and “Front Differential Dismounting
and Remounting: Front in Section 3B in related
manual”.
5) Install suspension frame.
WARNING
!
When installing suspension frame, be sure to
apply some supporting equipment under it at
well-balanced position as shown in the figure
section so as to prevent from its drop.
CAUTION
!
Lug (2) in suspension frame (1) must be
mated to the corresponding hole in body.
And also engine front body side mounting
bolts (3) and engine mount lug (4) must be
mated to the corresponding holes in
suspension frame.
F: Forward
1
2
2
3
I5JB0A220050-01
5
4
2
2
F
3
3
1
I5JB0A220051-01
1
2
I5JB0A220049-01
1
4
3
3
2
5
I5JB0A220052-02
