9-24
INSPECTION AND MAINTENANCE
55TH0-74E

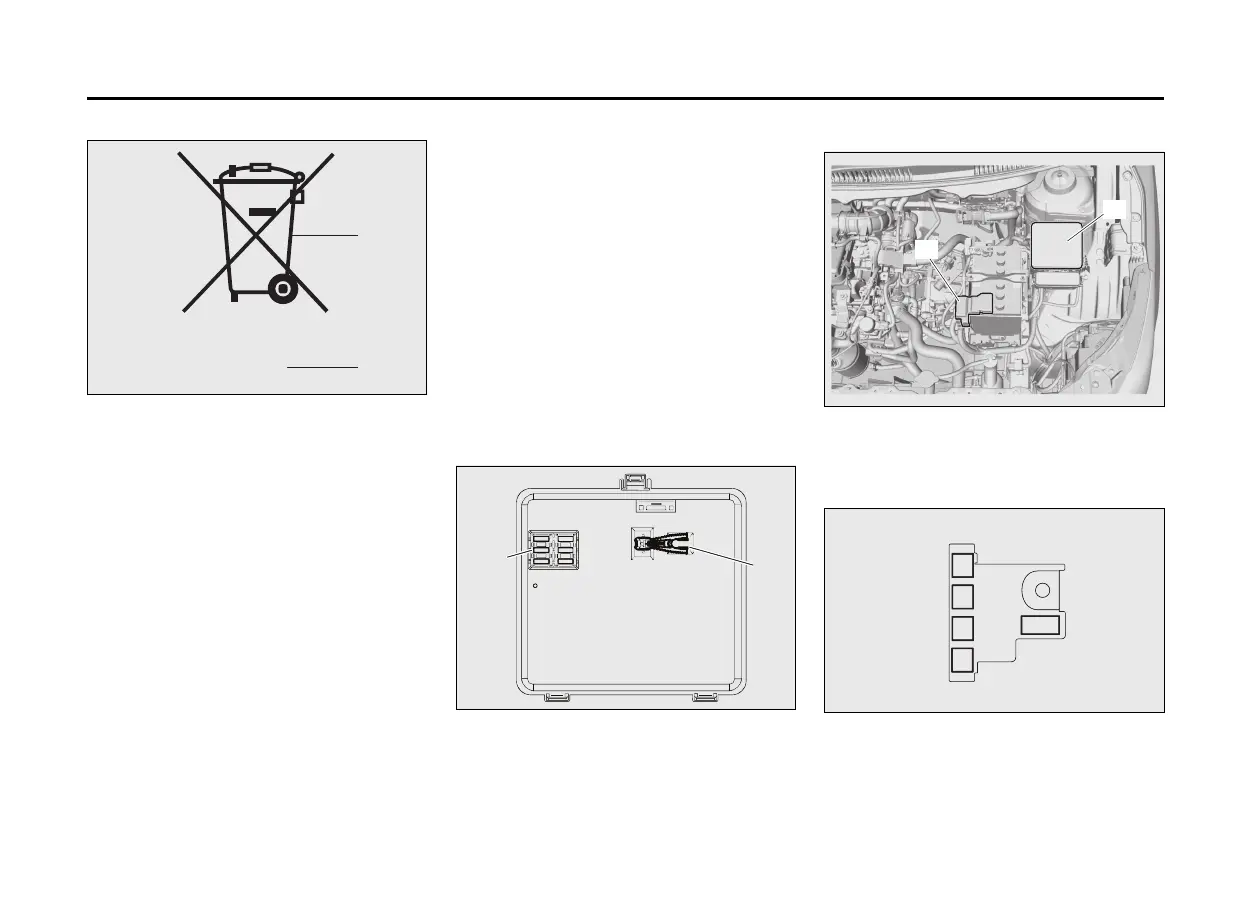

(Battery label)
51KM042
(5) Crossed-out wheeled bin symbol
(6) Chemical symbol of “Pb”
The crossed-out wheeled bin symbol (5)
located on the battery label indicates that
the used battery should be collected sepa-
rately from ordinary household trash. The
chemical symbol of “Pb” (6) indicates the
battery contains more than 0.004% lead.
By ensuring the used battery is disposed
of or recycled correctly, you will help pre-
vent potential negative consequences for
the environment and human health, which
could otherwise be caused by inappropri-
ate trash handling of the battery. The recy-
cling of materials will help to conserve
natural resources. For more detailed infor-
mation about disposing of or recycling the
used battery, consult a Maruti Suzuki
authorised workshop.
Fuses
Your vehicle has three types of fuses, as
described below:
Main fuse
The main fuse takes current directly from
the lead-acid battery.
Primary fuses
These fuses are between the main fuse
and individual fuses, and are for electrical
load groups.
Individual fuses
These fuses are for individual electrical cir-
cuits.
To remove a fuse, use the fuse puller pro-
vided in the fuse box cover.
55T090640
(1) Fuse puller
(2) Spare fuse
Fuses in Engine Compartment
55T090600
(3) Main fuse box
(4) Relay box
Main fuse box
56RS00707
To Next Page
