Suzuki RA410 - Disassembly

6H-12 CHARGING SYSTEM

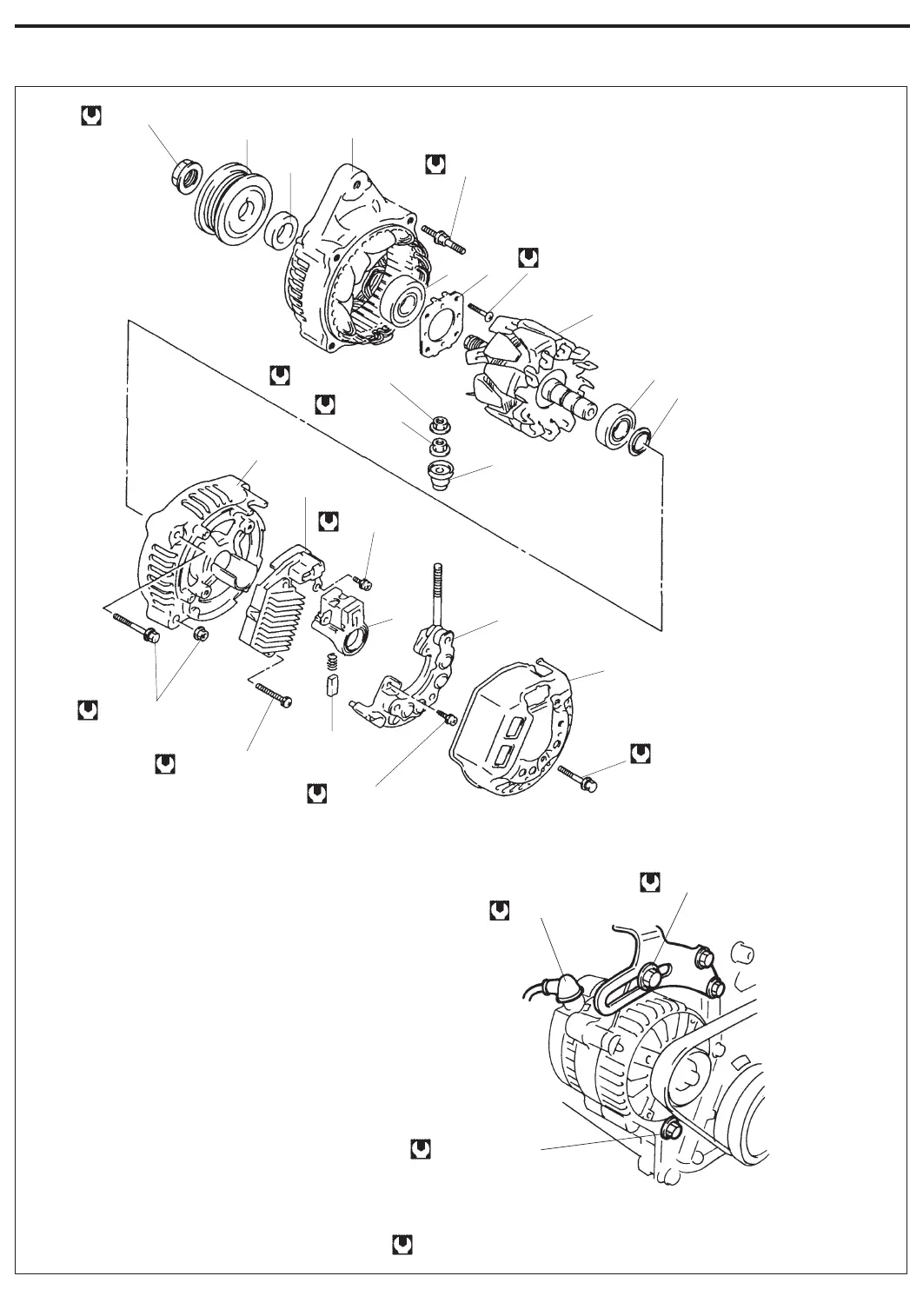

DISASSEMBLY
1. Pulley nut
2. Pulley
3. Spacer
4. Drive end frame
5. Stud bolt
6. Drive end bearing
7. Bearing retainer
8. Rotor
9. End housing bearing
10. Bearing cover
11. Rear end frame
12. Regulator
13. Brush holder
14. Brush
15. Rectifier
16. Insulator
17. Rear end cover
5 8.7 N·m (0.87 kg-m)
: Tightening Torque
1 113 N·m (11.3 kg-m)
2.0 N·m (0.2 kg-m)
2.0 N·m (0.2 kg-m)
4.5 N·m (0.45 kg-m)
4.2 N·m
(0.42 kg-m)
7.8 N·m (0.78 kg-m)
4.5 N·m (0.45 kg-m)
7 N·m (0.7 kg-m)
22 N·m (2.2 kg-m)
2.0 N·m (0.2 kg-m)
50 N·m (5.0 kg-m)
2.6 N·m (0.26 kg-m)
2
3
4
6
7
8
9
10
17
15
13
12
11
14
16
