CLUTCH RELEASE SYSTEM
REMOVAL

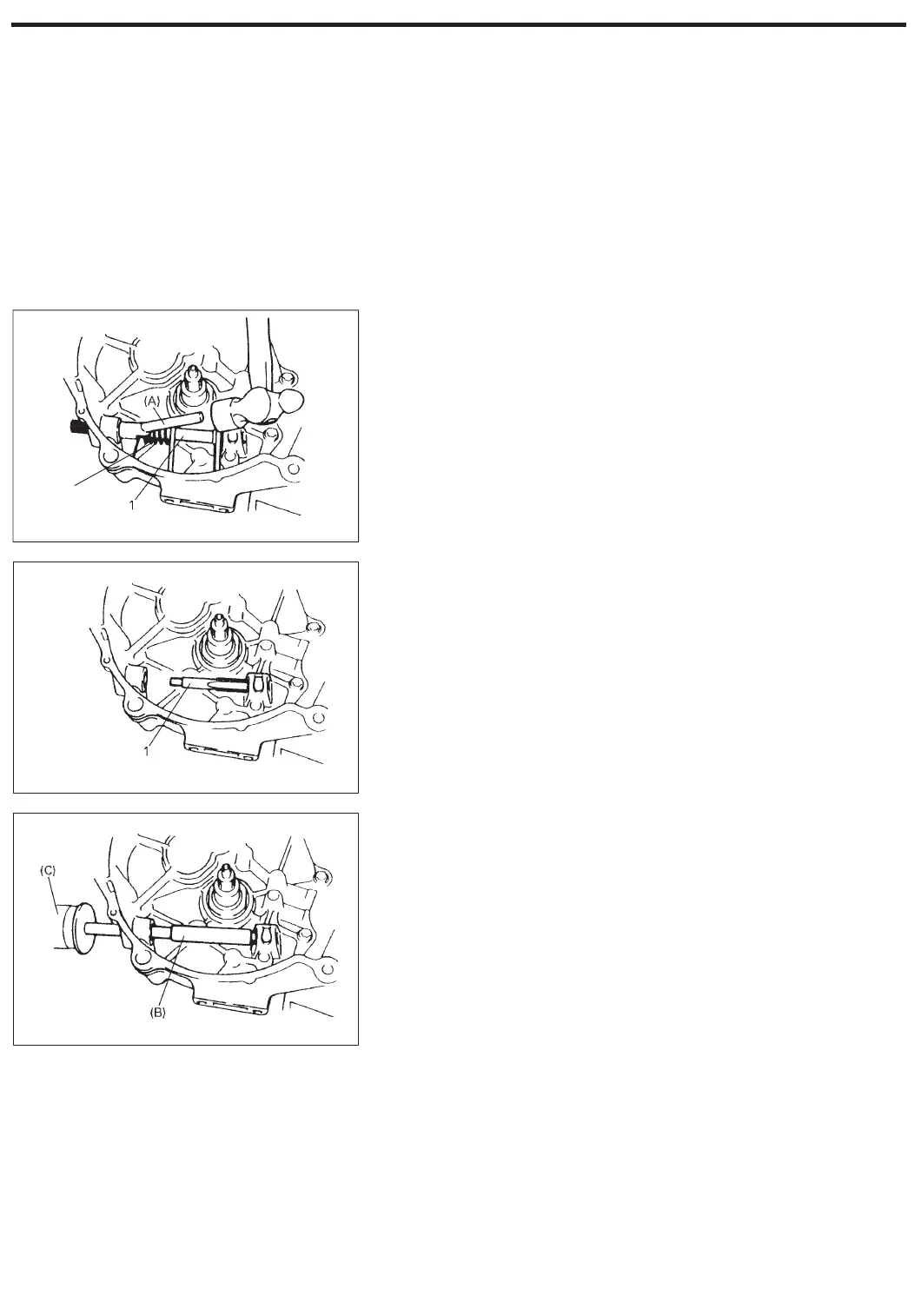

1) Remove release arm by loosening its bolt.
2) Take out release bearing by turning release shaft.
3) Unhook return spring using pliers.
4) Drive out No.2 bush using special tool and hammer.
Release shaft seal will also be pushed out.
Special Tool
(A): 09922-46010
5) Remove release shaft (1) and return spring (2).
2
6) Install tap (M14 1.5)(1) to clutch release shaft No.1 bush.
7) Pull No.1 bush out by using special tools.
Special Tool
(B): 09923-46030
(C): 09930-30102
CLUTCH 7C-9
