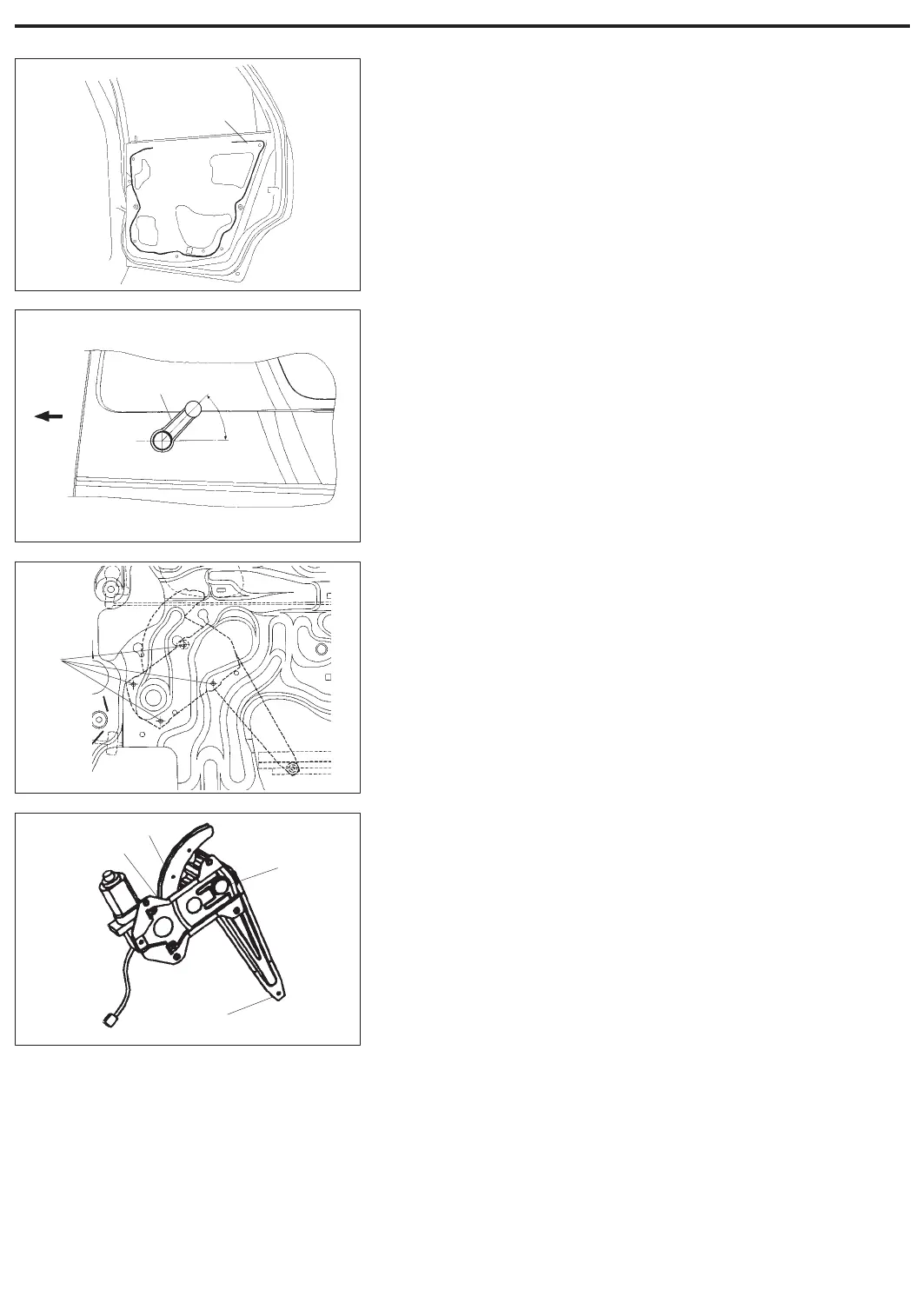

Secure door sealing cover with adhesive (1).
1
Install door window regulator handle (1) so that it has a 455 angle
when glass is fully closed, as shown in left figure.
Front
1
455+255
REAR DOOR WINDOW REGULATOR
REMOVAL
1) Remove door glass, referring to steps 1) to 8) of REAR DOOR
GLASS REMOVAL in this section.
2) Disconnect power window motor lead wire at coupler and clamp
(if equipped).
3) Remove door window regular mounting screws (1) and take out
regulator through hole as shown in left figure.
1
INSPECTION
1) Check regulator sliding and rotating parts for greasing (1).
2) Check rollers (2) for wear and damage.
1
1
2
1
INSTALLATION
Reverse removal procedure.
9-14 BODY SERVICE
