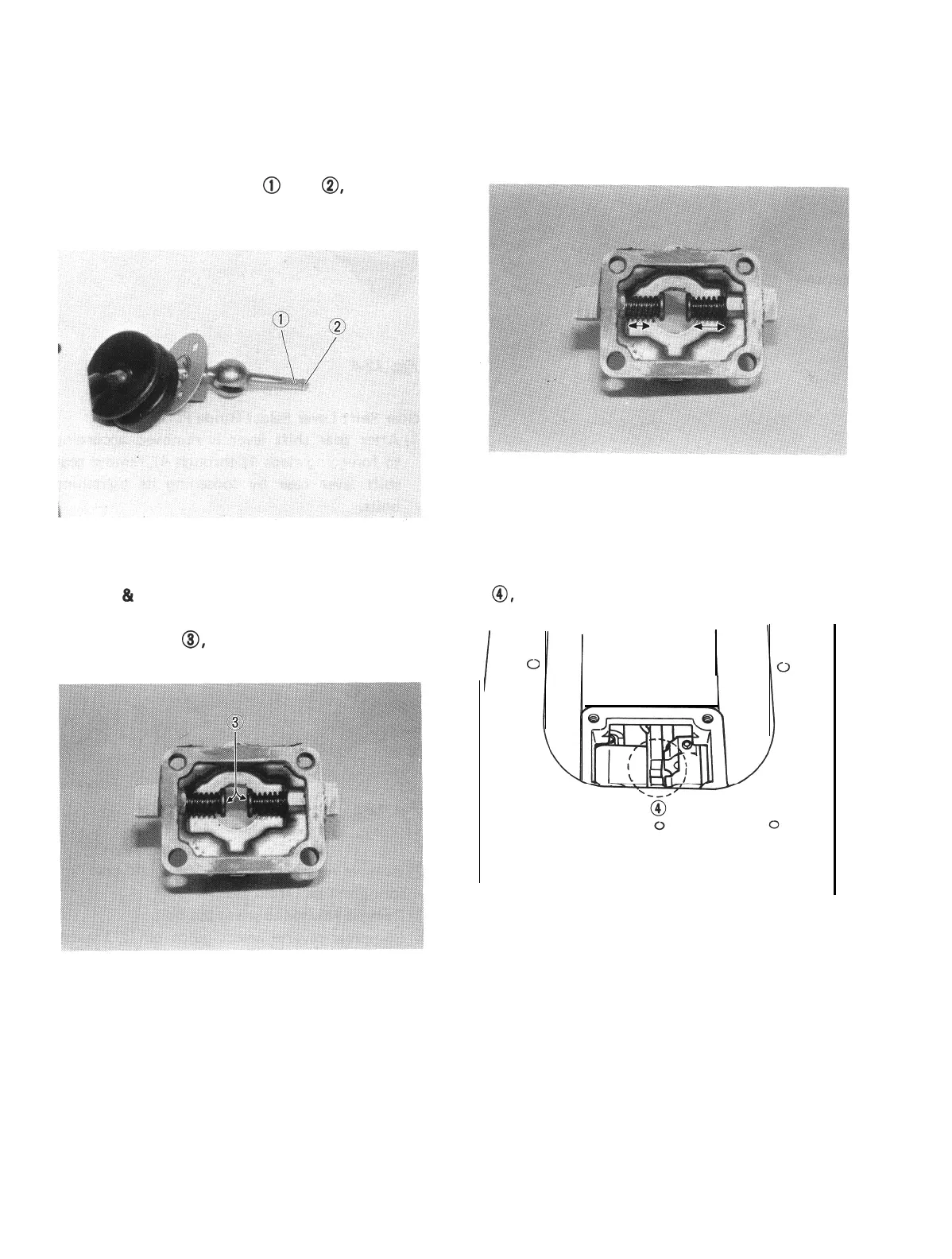

12-3. INSPECTION OF COMPONENTS
Gear Shift Lever
Check lower end of gear shift lever where gear
shift fork shaft contact, @ and 0, for wear
and any kind of damage. Worn or damaged gear
shift lever must be replaced with a new one.
Fig. 12-7
Reverse & Low Speed Select Guide Pins
Check both select guide pins where gear shift
lever contacts, 0, for stepped wear. Replace
worn select guide pin.
Move shaft and check low speed select guide
pin for smooth movement without rattle. If
found defective, replace it and apply grease to
pin.
Fig. 12-9
Gear Shift Fork Shaft
Visually check each gear shift fork shaft (High,
Low and Reverse) where gear shift lever contacts,
@, for wear. Worn shaft must be replaced.
I
0
0
Fig. 12-10
Fig. 12-8
12-4
