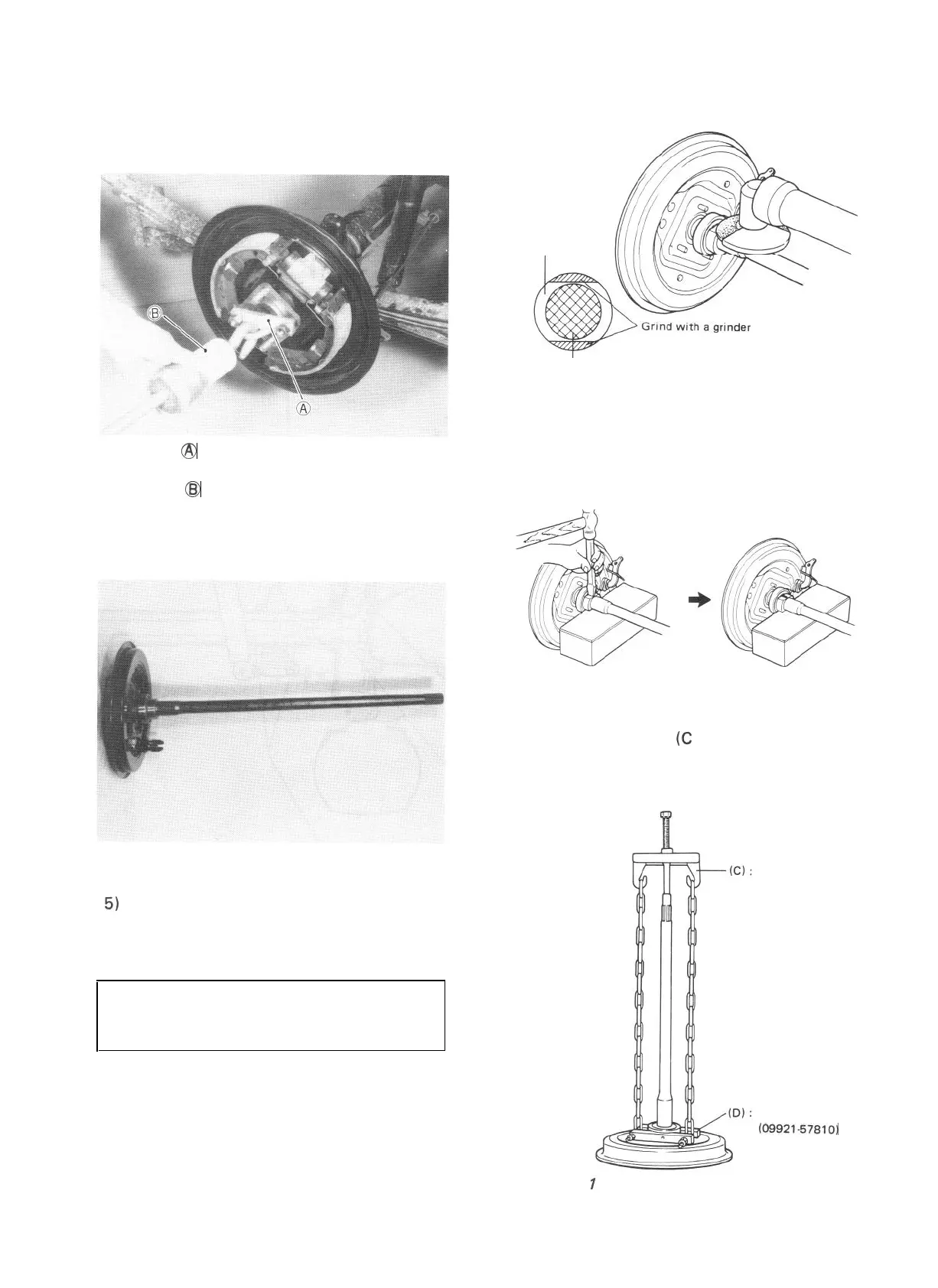

4) Using special tools indicated below, draw out
each axle shaft with brake backing plate.
Fig. 17-2-7 @ Special Tool (Rear Axle
Remover 09922-66010)
@I
Special Tool (Sliding Hammer
09942-15510)
Rear axle shaft that was drawn out.
Fig. 17-2-8
5)
In order to remove the retainer ring from the
shaft, grind with a grinder two parts of the
bearing retainer ring as illustrated till it
becomes thin.
Rear wheel bearing
retainer ring
Rear axle shaft
Break with a chisel the thin
ring, and it can be removed.
n
ground retainer
6) Using special tools
(C
and D), remove bear-
ing from shaft and then remove brake back
plate.
CAUTION:
Be careful not to go so far as to grind the
shaft.
Universal pulley
09927-l 8410
Bearing remover
(09921-57810)
17-17
Fig. 17-2-11
Fig. 17-2-10
Fig. 17-2-9
