2-139
BEFORE DRIVING
52RM0-01E
The headlight pattern must be adjusted to
avoid dazzling oncoming motorists and
can be set for right or left hand traffic.
LED headlights (if equipped)
You do not need to adjust the light pattern.
Halogen headlights (if equipped)
The light pattern may not be as good.
You should readjust the light pattern by
masking the headlight lens.
Left hand drive vehicle
To readjust the light pattern by masking the
headlight lens;
1) Copy the A and B templates as shown
in the illustrations.
2) Transfer the template to a self-adhesive
waterproof material and cut it out.
3) Position the self-adhesive templates at
the right distance from the center mark
of the headlight lens.
Refer to the dimensions in the following
list:

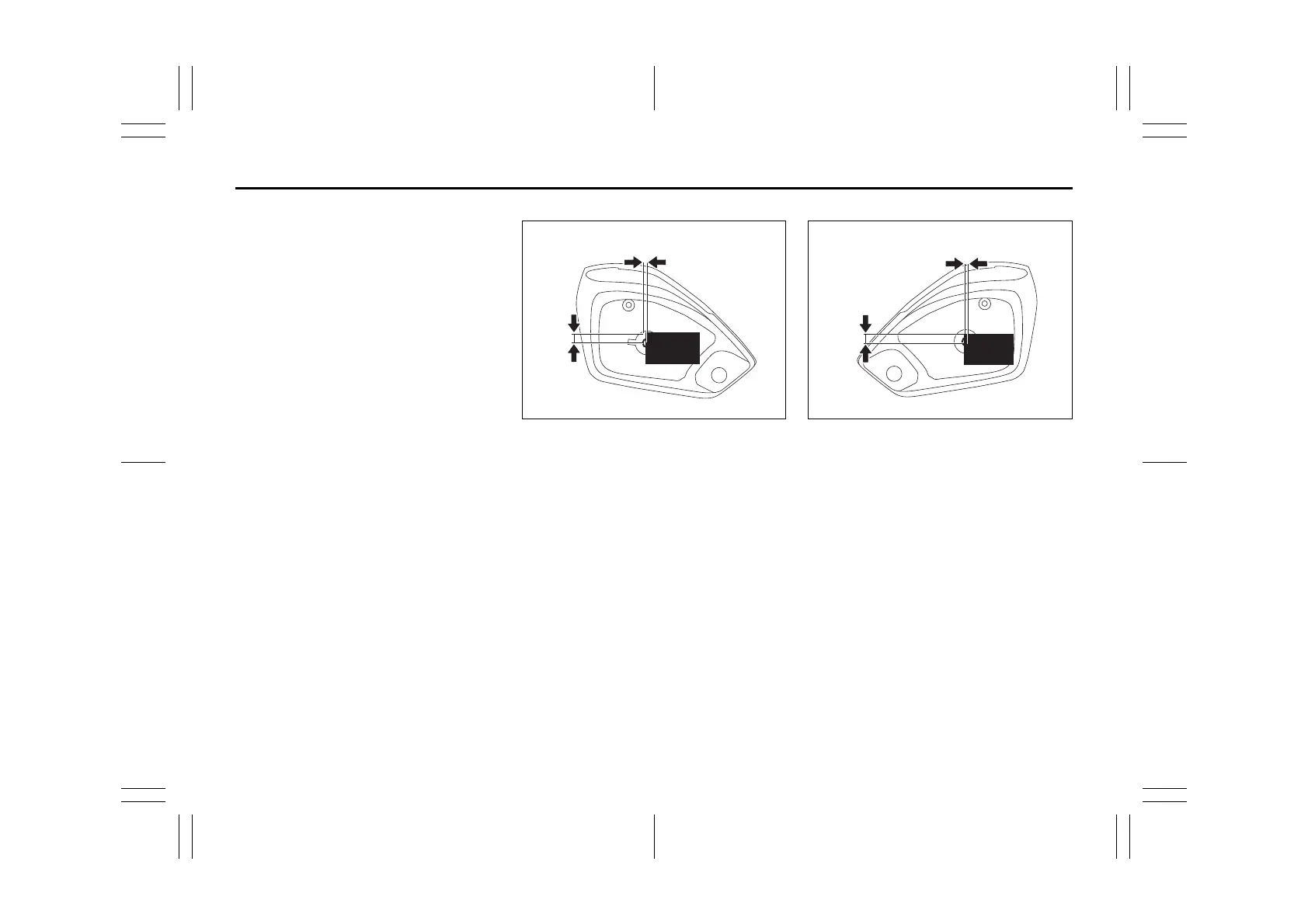

Right hand (A)
52RM20340
(1) Horizontal line: approximately 2.1 mm
(2) Vertical line: approximately 18.5 mm
Left hand (B)
52RM20350
(1) Horizontal line: approximately 2.5 mm
(2) Vertical line: approximately 11.2 mm
To Next Page
