NOTE:
With disc brakes, the fluid level can be
expected to gradually fall as the brake
pads wear.
Brake pedal
Check brake pedal stroke. If the stroke is
so large, have the brake system inspected
by an authorized SUZUKI dealer. If you
doubt the brake pedal is at its normal
height, check it as follows:

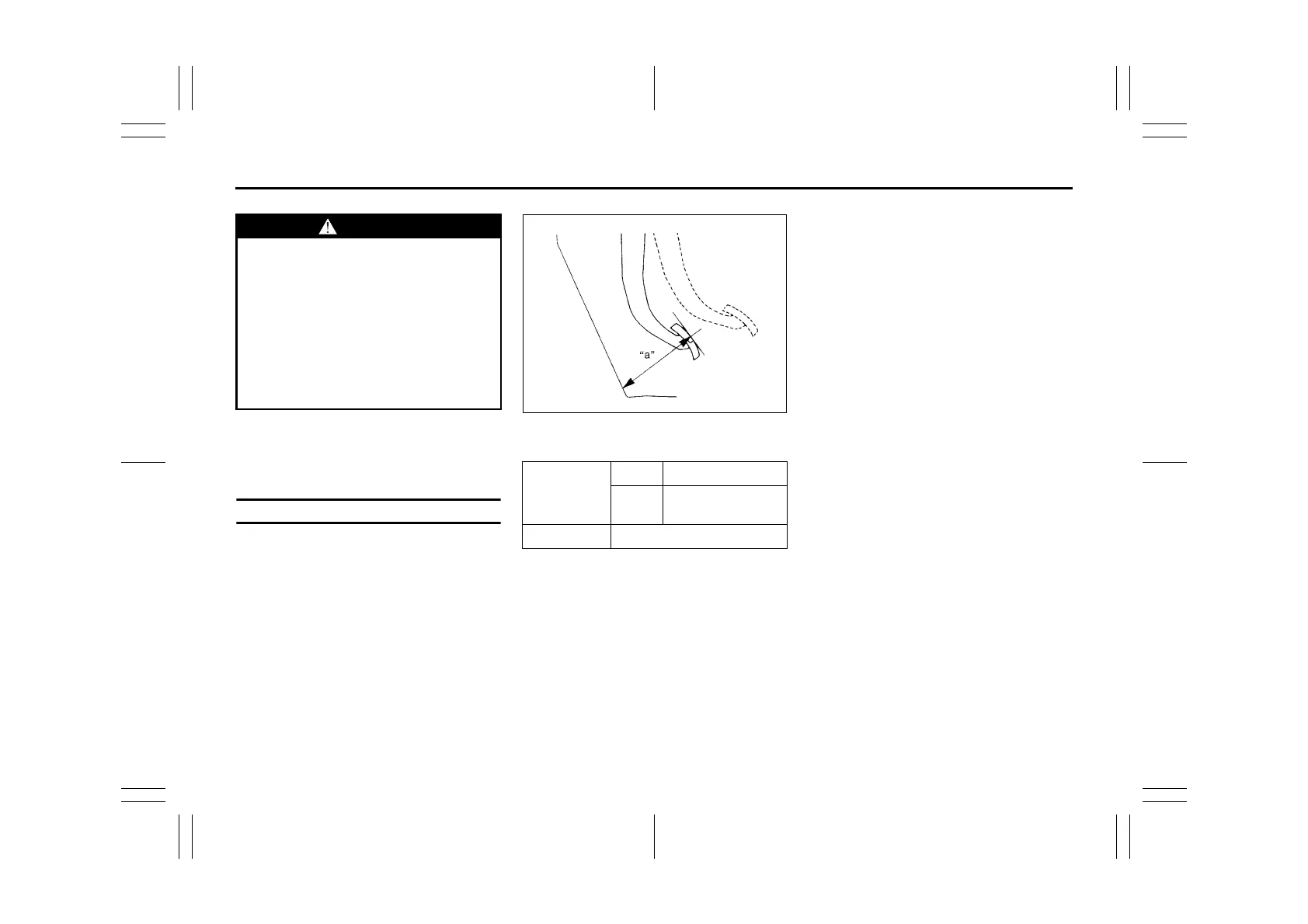

54G108
Minimum distance between brake pedal
and floor carpet “a”
With the engine running, measure the dis-
tance between the brake pedal and floor
carpet when the pedal is depressed with
approximately 30 kg (66 lbs) of force. The
minimum distance required is as specified.
Since your vehicle’s brake system is self-
adjusting, there is no need for pedal
adjustment.
If the pedal to floor carpet distance as
measured above is less than the minimum
distance required, have your vehicle
inspected by an authorized SUZUKI
dealer.
NOTE:
• When measuring the distance between
the brake pedal and floor wall, be sure
not to include the floor mat or rubber on
the floor carpet in your measurement.
• Measure the distance at the brake
pedal's side facing toward the driver's
door.
WARNING
Brake fluid is harmful or fatal if swal-
lowed, and harmful if it comes in con-
tact with skin or eyes. If swallowed,
do not induce vomiting. Immediately
contact a poison control center or a
physician. If brake fluid gets in eyes,
flush eyes with water and seek medi-
cal attention. Wash thoroughly after
handling. Solution can be poisonous
to animals. Keep out of reach of chil-
dren and animals.
LHD
MT 68 mm (2.7 in.)
AT
CVT
59 mm (2.3 in.)
RHD 53 mm (2.1 in.)
