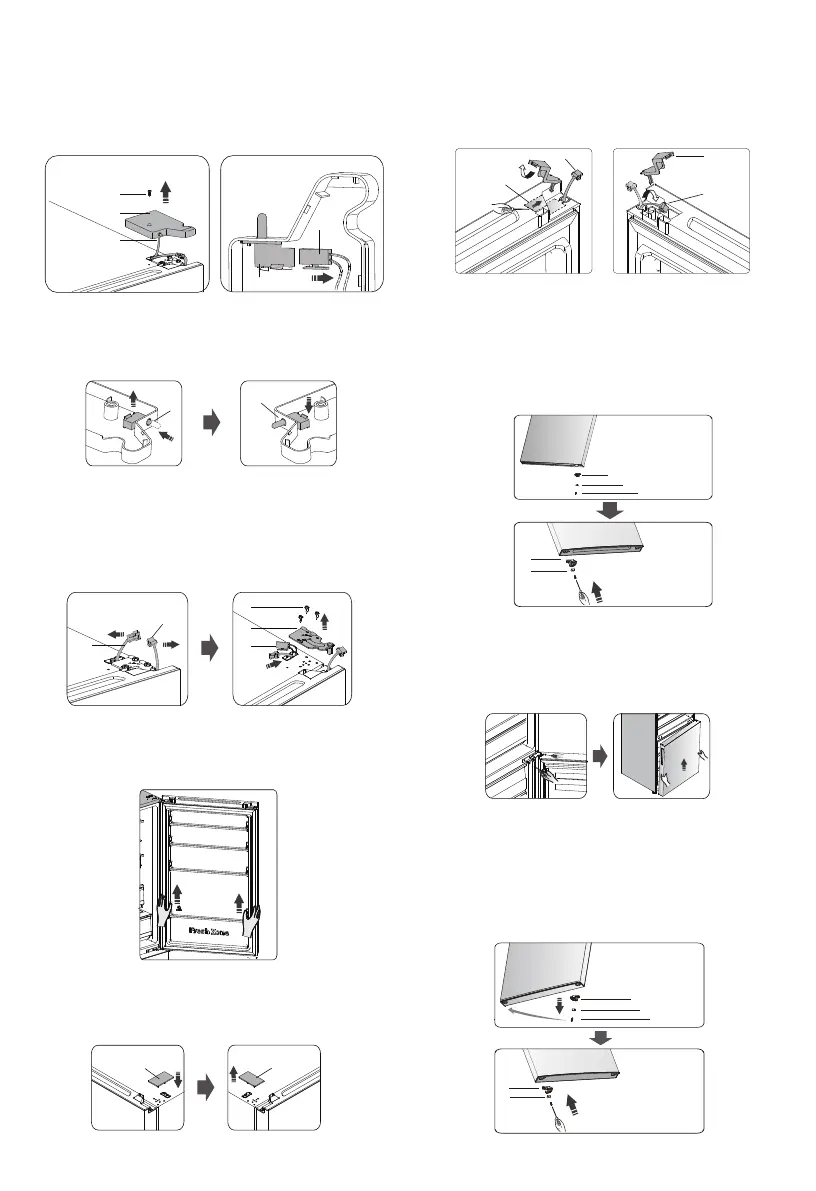

2.Remove screw①, then take down cover②
from the top right side. Be careful of the
electrical connector③ below, because it’s
still connected. Then unconnect it and
remove cover②.
3.Press the door switch④ ,then remove it
upward. Install switch④ into cover⑤
(provided in the plastic bag). Put the other
cover② into the plastic bag.
4.Disconnect the connetor① and②, then
unscrew screws③ by a 8mm socket driver
or a spanner, and remove hinge④. Then
put the conector① and⑤ into the hole.
Please hold the door by hand when
installing.
14
③
③
④
④
Eletrical connector
Door switch
6.Install cover① (provide in the plastic bag)
on the top right side.Then remove cover②
from top left side of the appliance, and put
it into the plastic bag.
5.Remove the upper door from the middle
hinge by carefully lifting the door straight
up. Then Place the upper door on a smooth
surface with its upper cover upwards.
④
⑤ Upper hinge
cover-left
① Screw hole
cover-right
② Screw hole
cover-left
①
①
②
②
③
Self-tapping screw
Upper hinge cover
①
②
③
④
⑤
8.Loose screw③ and take down part②
and part ①, Install replacement door
stopper-left④ and stop block-left⑤
(provided in the plastic bag) to the left
side with screw③. Keep part ① and
part② with the appliance for future
reference.
7.Remove cover① from the top left side of
upper door and take out connector ②.
Remove cover③ from the right side and
put connector④ inside, reinstall the
cover① and③.
9.Use the Allen wrench(provided in the
plastic bag) and cross-shaped
screwdriver to loosen the screws and
remove the middle hinge-right. Then
remove the lower door.
⑤
⑤
10. Place the lower door on a smooth
surface with its panel upwards. Loose
screw③ and take down part② and part①,
then Install door stopper-left④ and stop
block-left⑤ (provided in the plastic bag) to
the left side, and tighten them with screw③
securely.
①
②
③
① Door stopper
② Stop block
③ Self-tapping screw
④ Door stopper-left
stop block-left
④
①
②
④
③
⑤
④Door stopper-left
stop block-left
⑤
④
②
③
①
②
Door stopper
③
Stop block
Self-tapping screw
①
