Svan SVF1972NFD - Page 16

15
c． Us

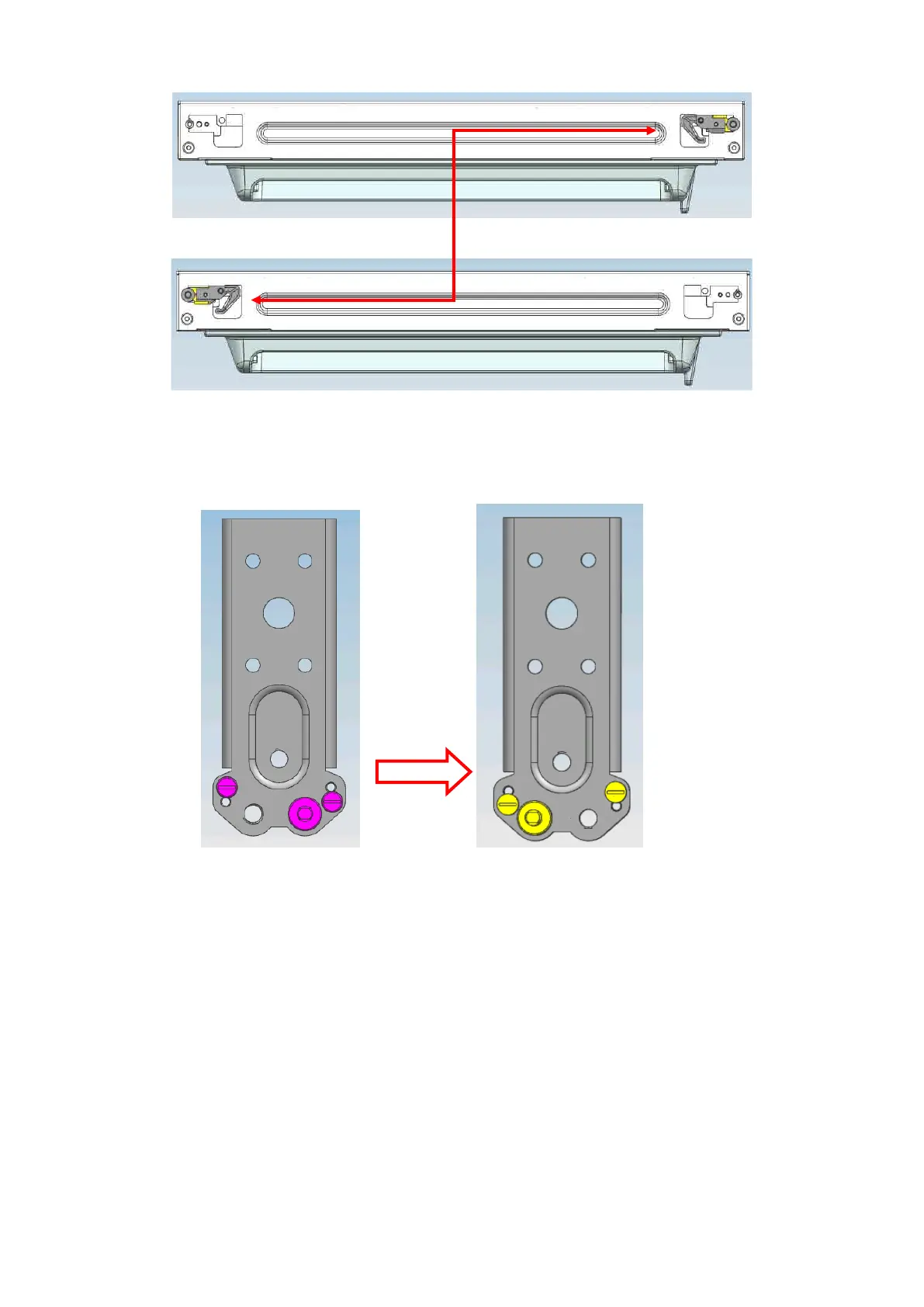

e a tool to remove the axle and two stoppers on the lower hinge and then assemble
them to the position as shown in the below figure.
三： Ass
emble the refrigerator door and freezer door to the opposite side.
1、a．Remove the adjustable front foot as shown below by hand and then assemble the
lower hinge to the other side of the cabinet and fix the screws by using a tool.
