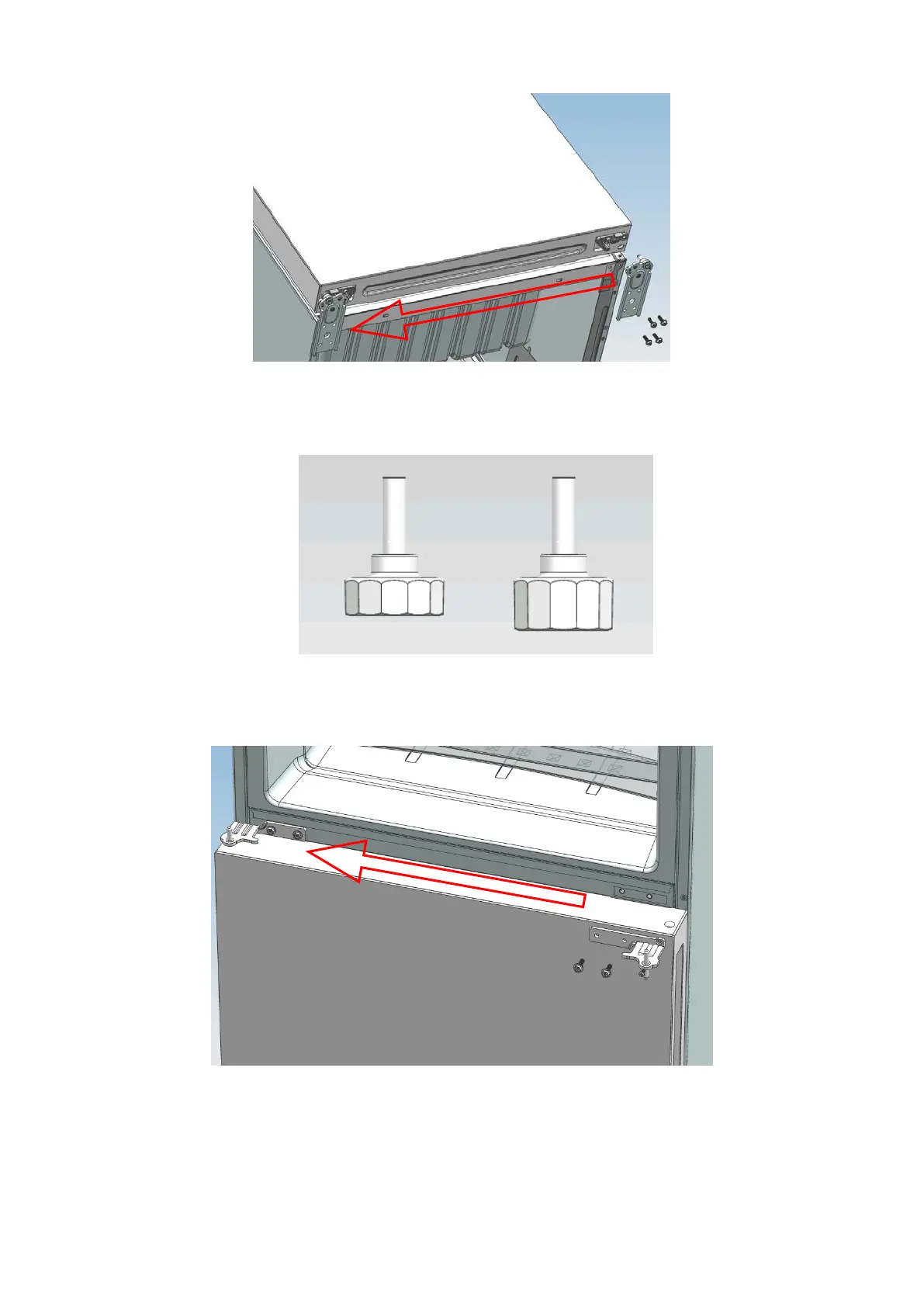

b.A
ssemble the shorter adjustable front foot to the lower hinge side and adjust the height
of the foot to make the refrigerator stay in level.
2、Put on the freezer door and turn the middle hinge by 180 ℃ and then assemble it to the
other side of the cabinet; use a tool to screw up the 3 screws to fix the middle hinge.
3、Put
on the refrigerator door and assemble the left upper hinge to the other side of the
cabinet; use a tool to screw up the 4 screws to fix the upper hinge.
After that, connect the door communication line and the cabinet communication line and
then put on the left upper hinge cover and fix it using a screw.
